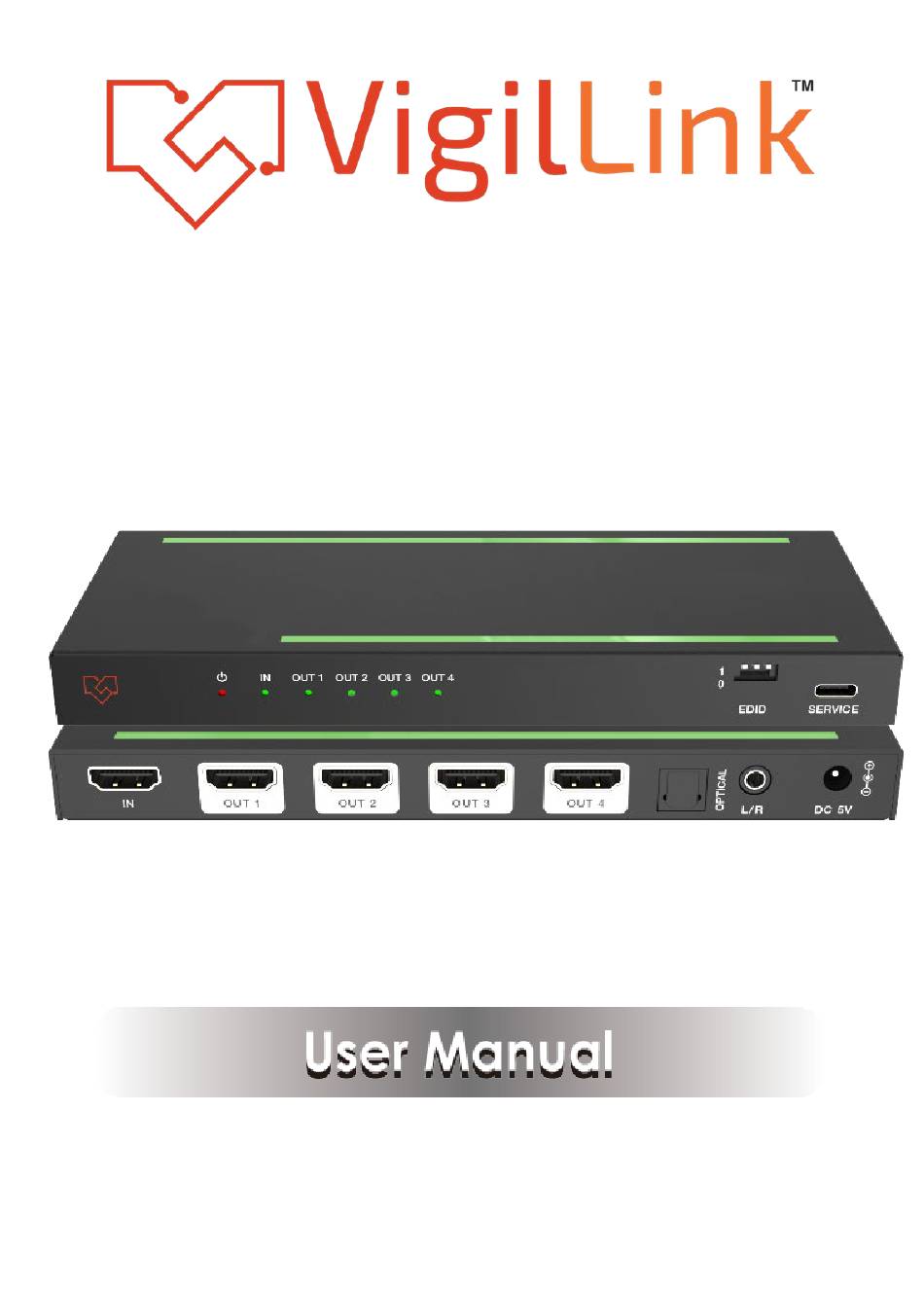

- Page 1 8K HDMI 1x4 Splitter VLSP-14H21SA VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 8K HDMI 1x4 Splitter can distribute one HDMI source signal to any four display devices. Video resolution is up to 8K@60Hz 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. -
Page 4: Specifications
4. Specifica t ions Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, Video Resolution 8K@30Hz 4:4:4 12bit Color Depth 8/10/12bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,... -
Page 5: Operation Controls And Functions
Input: AC 100-240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 6W (Max) Operation 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Recommended HDMI Cable Video Resolution 4K60... -
Page 6: Auto Downscaling & Auto Converting
Name Function Description Power LED When the device is powered on, the red LED will be on. When the HDMI IN port connects an active source device, IN LED the green LED will be on. OUT LED When the HDMI OUT 1/2/3/4 port connects a display device and outputs signal, the corresponding green LED will be on. - Page 7 Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on TV. Downscaling will not work in the following conditions: 1. The input source is 8K DSC format. 2.
-
Page 8: Application Diagram
7. Applica t ion Dia gra m The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
