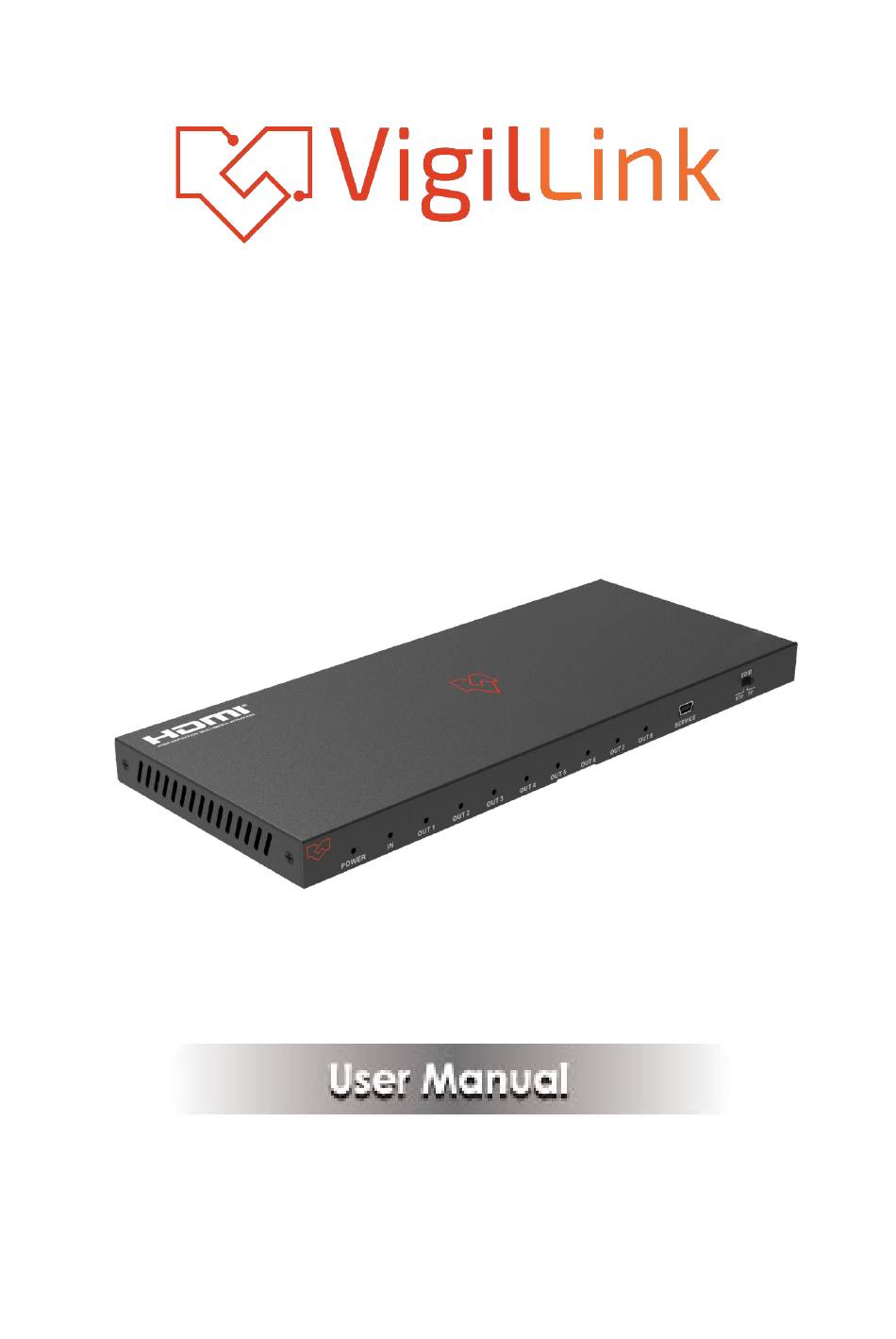

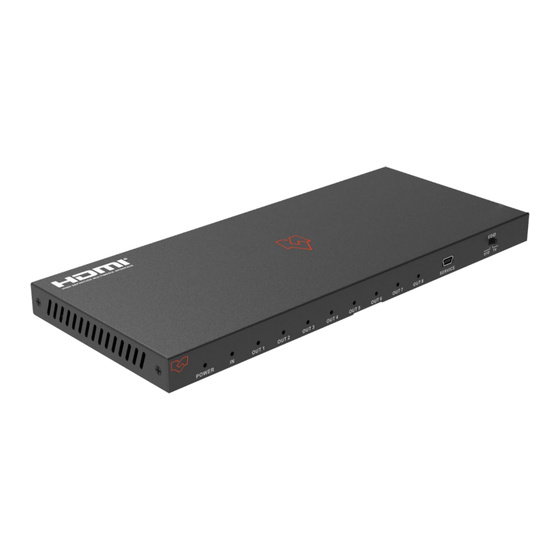

- Page 1 VLSP-18H20 1x8 HDMI 2.0 Splitter 18Gbps VER 1.0 Thank you for purchasing this product...
- Page 2 Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage surges, electric shocks, lightning strikes, etc.
- Page 3 18Gbps 1x8 HDMI Splitter is an advanced solution for synchronizing a single HDMI signal to 8 HDMI outputs. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set as the COPY/ AUTO EDID configuration. Supporting the latest features, you can be assured of reliable and high-quality HDMI distribution.
- Page 4 Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz HDMI Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X ESD Protection Human body model—±8kV (Air-gap discharge) &...
- Page 5 Name Function description Number POWER LED This blue LED will illuminate when the device connects power supply. IN LED This blue LED will illuminate when HDMI IN port To connects an active source device. OUT LED These blue LEDs illuminate when HDMI OUT ports connect to an active display device.
- Page 6 TVs or Monitors with an HDMI cable. HDMI IN Connect to the HDMI source device such as DVD player or set-top box with an HDMI cable. DC 12V Plug the DC 12V power supply into the unit and connect the adaptor to an AC outlet. 6.
- Page 7 7. FAQ 1. Q: Where is this product usually used? A: It can be used in many places such as Entertainment Room / Home Theater / Lecture Room / Hall Presentation / Show Room / Demo Room / Public Commercial Display etc. 2.
