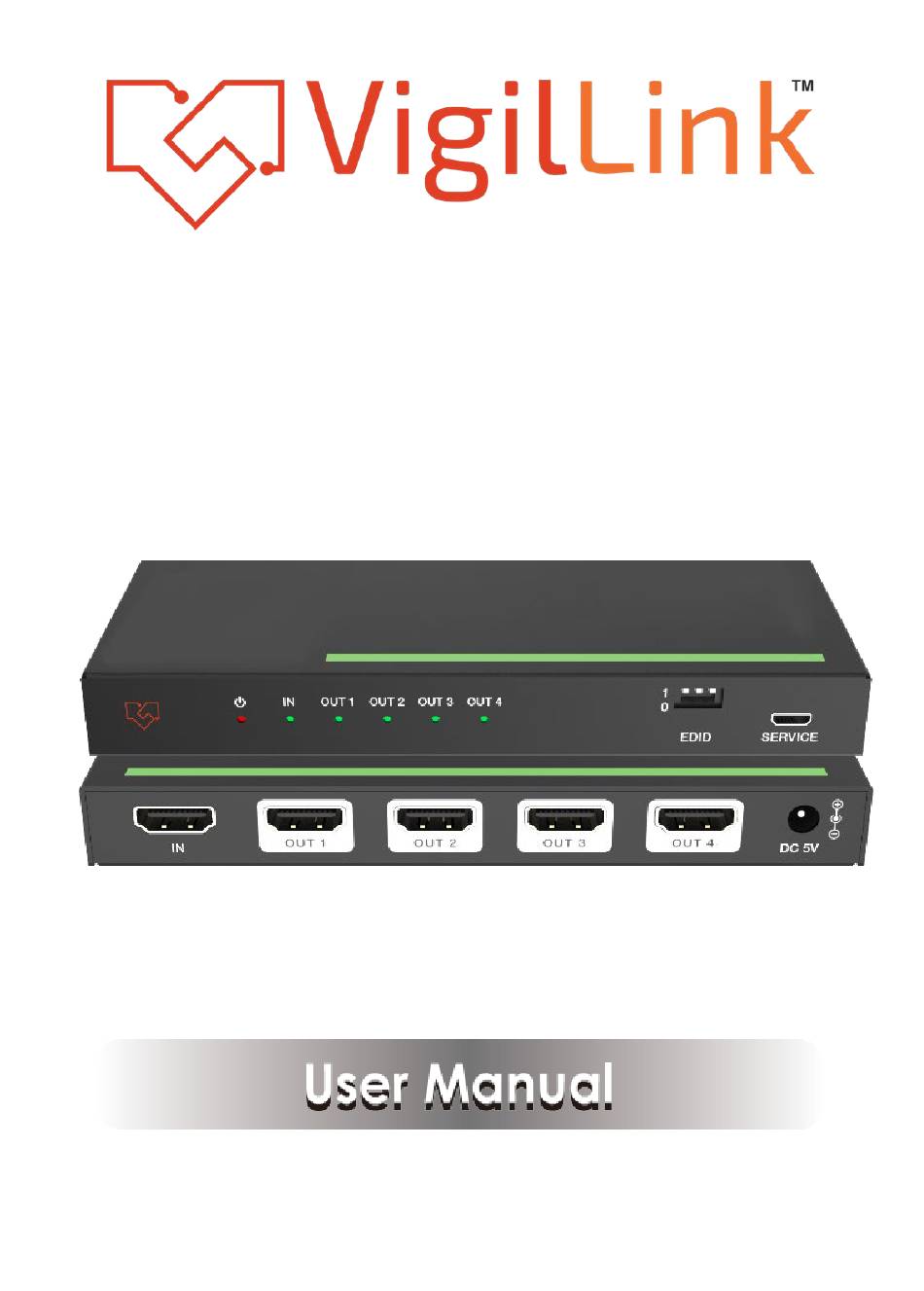

- Page 1 48Gbps 1x4 HDMI Splitter VLSP-14H21S VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 48Gbps 1x4 HDMI Splitter is an advanced solution for splitting single HDMI signal to 4 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization. -
Page 4: Specifications
4. Specifica t ions Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Depth 8/10/12bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, Audio Formats... -
Page 5: Operation Controls And Functions
Recommended HDMI Cable Video Resolution 8K60 4K60 1080P HDMI Cable Type Ultra HDMI 2.1 cable HDMI 2.0 cable HDMI cable HDMI Cable Length 2m/6.6ft ~ 3m/10ft 8m/26ft 15m/49ft (HDMI IN / OUT) The use of “Premium High Speed HDMI” cable is highly recommended. 5. -
Page 6: Auto Downscaling & Auto Converting
[DIP]=100: FRL12G_8K_HDR, 5.1CH [DIP]=011: FRL12G_8K_HDR, 7.1CH [DIP]=010: FRL10G_8K_HDR, 2.0CH [DIP]=001: FRL10G_8K_HDR, 5.1CH [DIP]=000: FRL10G_8K_HDR, 7.1CH SERVICE Firmware update port. HDMI signal input port, connecting to HDMI source device IN port such as DVD or PS5 with an HDMI cable. OUT port HDMI signal output port, connecting to HDMI display device such as TV or Monitor with an HDMI cable. -
Page 7: Application Diagram
Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on TV. 7. Applica t ion Dia gra m The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
