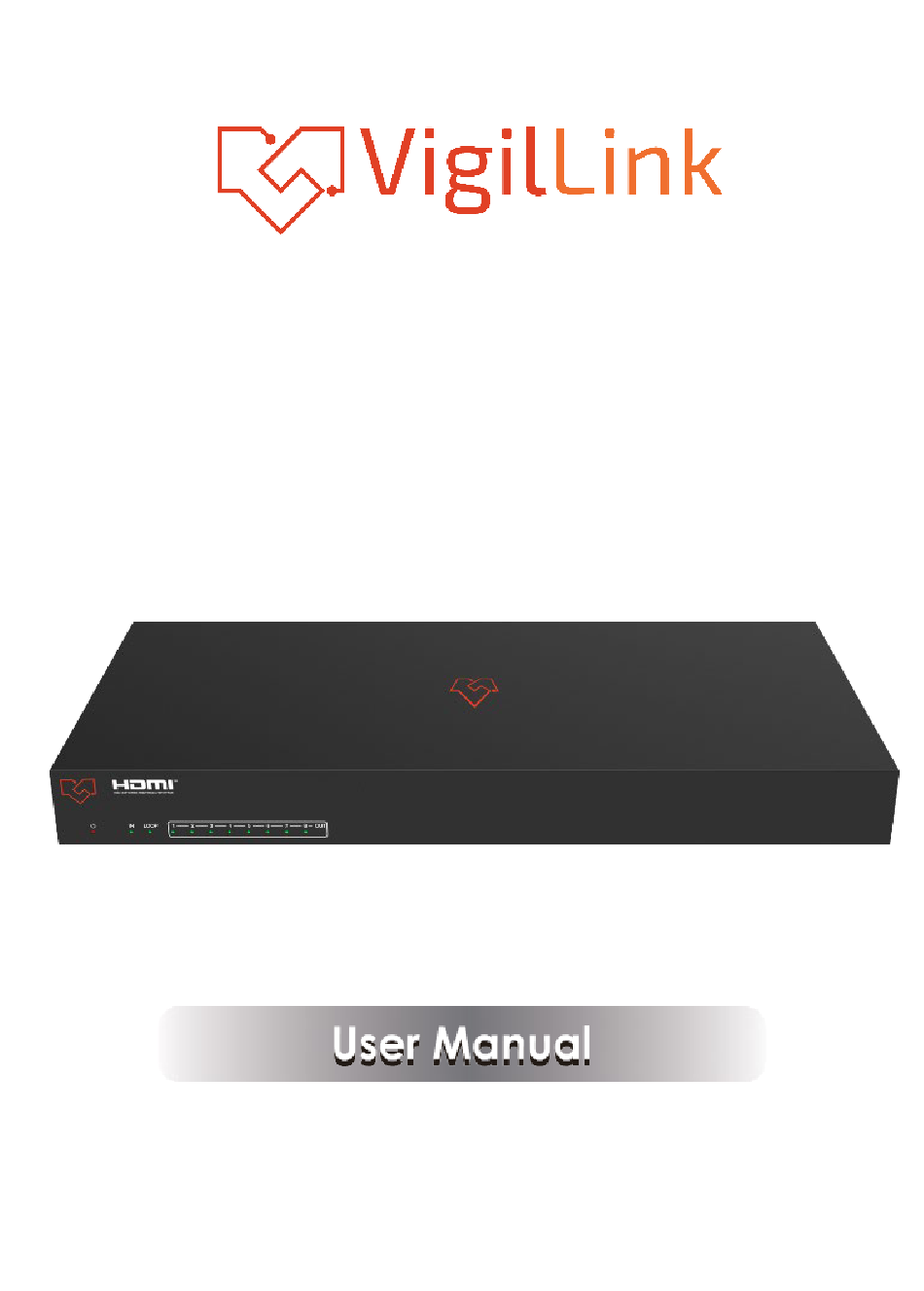

- Page 1 VL-SP18H-1 1x8 HDMI 2.0 Splitter over HDBaseT 150m 18Gbps VER 1.2...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This 18Gbps HDMI 1x8 HDBaseT Splitter can distribute 1 source signal to any 8 display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, HDMI Audio Formats... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 440mm (W) × 130mm (D) × 44mm (H) Dimensions Receiver: 140mm (W) × 65mm (D) × 18mm (H) Transmitter: 1.62kg Weight Receiver: 246g Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption Operation... - Page 6 Rear Panel Name Function Description EDID DIP Used to set EDID mode. Please refer to Section “6. EDID Mode” for details. switch Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1, Firmware update; RS-232 2, Control the Splitter via RS-232 commands;...
-
Page 7: Hdbaset Receiver
POWER switch Press this switch to power on/off the device. 5.2 HDBaseT Receiver Name Function Description When the receiver is powered on, the power indicator will Power Indicator be on. SERVICE port Used for firmware update. Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. -
Page 8: Ir Pin Definition
3-pin Phoenix connector for RS-232 command RS-232 transmission. The RS-232 command will pass through from transmitter to receiver or from receiver to the transmitter. 5.3 IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters;... - Page 9 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001 1080P 3D, Stereo Audio 2.0 11000 1080P 3D, Dolby/DTS 5.1 10111 1080P 3D, HD Audio 7.1 10110 4K2K30Hz_444, Stereo Audio 2.0...
-
Page 10: Ascii Commands
product. The ASCII command list about the product is shown below. ASCII Commands Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0 x - Parameter 1 y - Parameter 2 ! - Delimiter Command Code Default Setting Function Description Example... - Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable HDMI loop Set HDMI loop output out a stream stream on/off s HDMI stream 1! s HDMI stream enable Disable HDMI loop z=0~1(0:disable,1:enable) stream Enable HDMI loop Set HDMI loop output HDCP out HDCP enable s HDMI HDCP z!
- Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~32 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
- Page 13 Command Code Function Description Example Feedback Default Setting s edid user1 00 s edid user1 00 user1 EDID data: 00 Set user1 EDID data FF FF FF FF …! ff ff ff ff ….! FF FF …. user1 EDID data : 00 FF FF FF FF FF FF r edid user1! Get user1 EDID data...
-
Page 14: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -12-...
