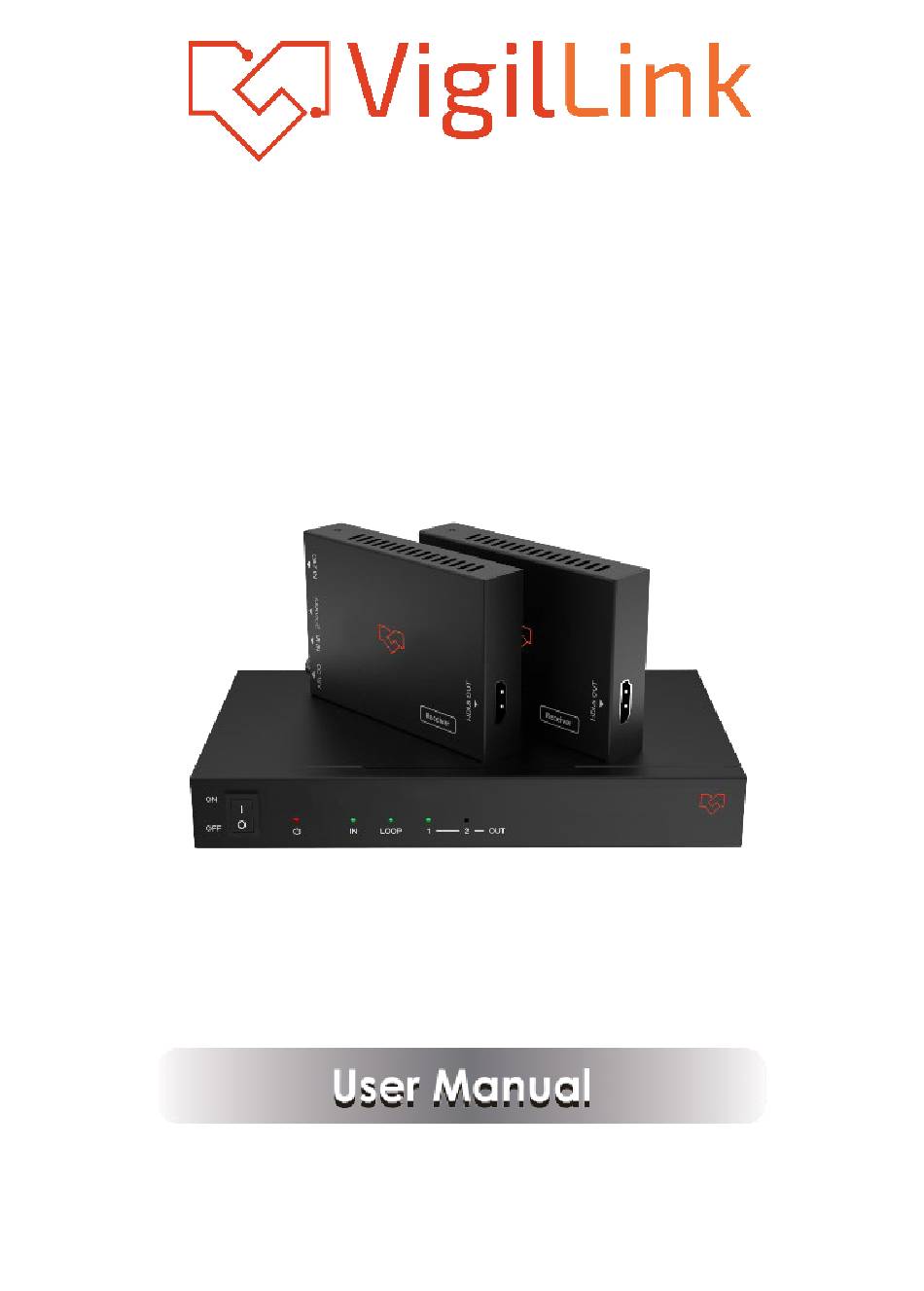

- Page 1 VLSP-12CHT20 18Gbps HDMI 1×2 Splitter over 60m CAT VER 1.0...
-
Page 2: Table Of Contents
Tha nk you for purchas ing t his product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A s ur ge prot ect ion device is r e c o m m e n d e d . This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction The 18Gbps HDMI 1×2 Splitter can distribute 1 HDMI source signal to any 2 display devices, with video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 2 CAT outputs. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m meters at 4K2K@30Hz, or 197ft/60m meters at 1080P@60Hz via a single CAT6/6a/7 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 Input: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, Color Depth 4K2K@60Hz Loop Out: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 Color Space HDR10, HDR10+, HLG, Dolby Vision LPCM, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24,... -
Page 5: Operation Controls And Functions
(US/EU standards, CE/FCC/UL certified) Power Consumption 8.28W (Max.) Operation 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions 5.1 Tra ns m it t er Front Panel Name Function Description... - Page 6 Rear Panel Name Function Description Coaxial/analog audio output port, connected to an RS-232 amplifier or speaker. IN: HDMI input port, connected to HDMI source device such as DVD or set-top box with an HDMI cable. HDMI port LOOP OUT: HDMI loop output port, connected to the HDMI display device such as TV or Monitor with an HDMI cable.
-
Page 7: Hdba S E T Re C E Iv E R
Name Function Description EDID DIAL Used to set EDID mode. Please refer to “6. EDID Mode” for details. switch SERVICE Used for firmware update or serial port command control. port Please refer to “7. ASCII Commands” for details. 5.2 CAT Re c e iv e r Function Description Name HDMI output port, connect to HDMI display device such... -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver IR Blaster Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 9: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001... -
Page 10: Ascii Commands
7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on a PC to send ASCII commands to control the product. - Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable HDMI loop Set HDMI loop output stream s HDMI out a stream s HDMI stream z! on/off enable stream 1! Disable HDMI loop z=0~1(0: disable,1: enable) out stream Enable cat output 1 stream Disable cat output 1 s cat 1 stream...
- Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~24 1. 1080p,Stereo Audio 2.0 2. 1080p,Dolby/DTS 5.1 3. 1080p,HD Audio 7.1 4. 1080i,Stereo Audio 2.0 5. 1080i,Dolby/DTS 5.1 6. 1080i,HD Audio 7.1 7.
-
Page 13: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -13-...
