- Page 1 VL-SP12-1 1x2 HDMI 2.0 Splitter 18Gbps VER 2.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shaking, lightning strikes, etc.

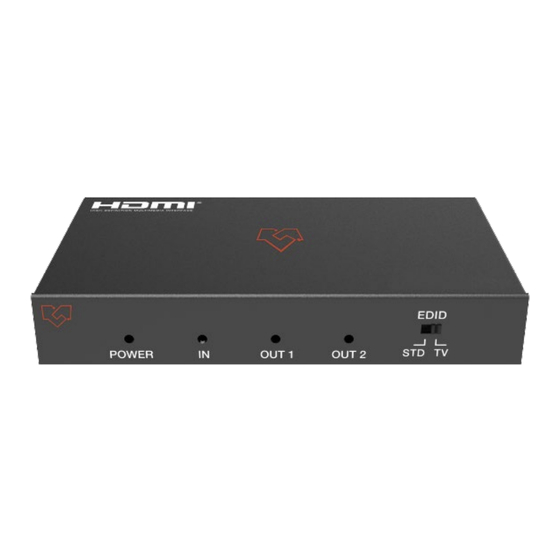

- Page 3 1. Introduction 1x2 HDMI 18Gbps Splitter is an advanced solution for splitting an HDMI content to 2 HDMI outputs synchronously. It provides high- performance audio and video up to 4K2K@60Hz (4:4:4) and can receive, retiming, and transmit up to 18Gbps of bandwidth with no data loss.
- Page 4 4. Specifications Technical Video Bandwidth 600MHz/18Gbps Input Port 1×HDMI Type A (19-pin female) Output Ports 2×HDMI Type A (19-pin female） Video Resolution 4K2K@24/25/30/60Hz Human body model—±8kV (Air-gap discharge) ESD Protection &±4kV (Contact discharge) Mechanical Chassis Material Metal Silkscreen Color Black Power Consumption Weight...
- Page 5 5. Operation Controls and Functions Name Function Description This blue LED illuminates when the device is Power connected to the power supply. This blue LED illuminates when the Source is IN LED connected to the device. These blue LEDs will light up to indicate which HDMI output port is connected to an active TV/ OUT LED display/monitor.
- Page 6 Connect each of the HDMI outputs to an HDMI HDMI OUT display for simultaneous HDMI distribution, or cascade the output to another splitter to extend the operating distance. Connect the input port to the HDMI output of your 7 HDMI IN source devices such as a DVD player or set-top box with an HDMI cable.
