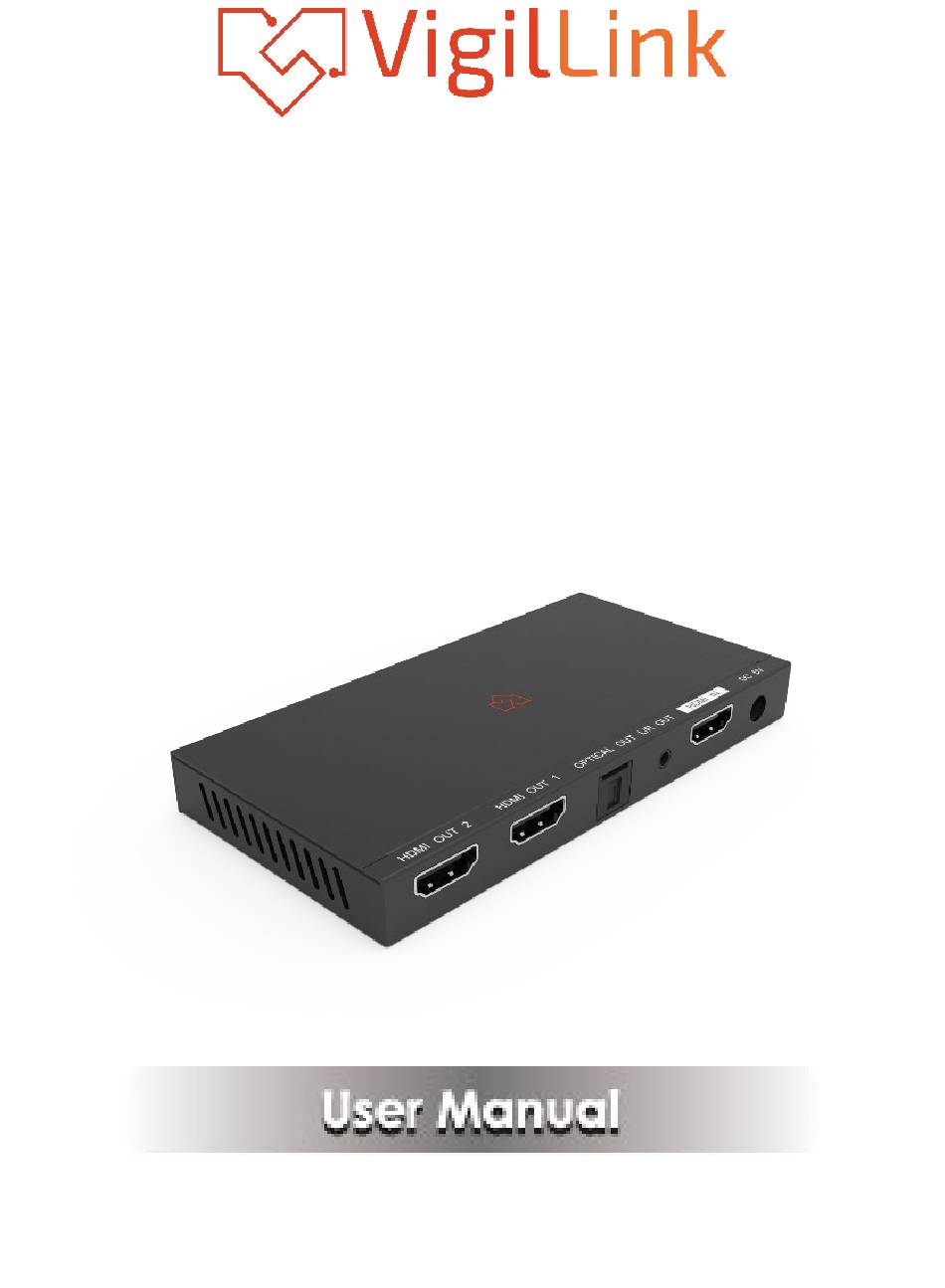

- Page 1 VLSP-AD12H20 1x2 HDMI 2.0 Splitter /w Audio De-embedded & Downscale 18Gbps VER 1.0...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Features ................3 3. Package Contents ............4 4. Specifications ..............5 5. Operation Controls and Functions ........7 5.1 Front Panel ............. 7 5.2 Rear Panel .............. 8 6. Application Example ............9... -
Page 4: Introduction
1. Introduction The 1x2 HDMI 2.0 Splitter simultaneously one route HDMI source to two routes HDMI display. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscale(4K->1080P) function. -
Page 5: Package Contents
function via dial switch on the panel. ☆ EDID can be selected COPY and AUTO modes via a dial switch on the panel. (COPY: It copies OUT 1 port EDID setting to all outputs port; AUTO: Compare OUT 1 and OUT 2 EDID settings and output the best resolution to all outputs). -
Page 6: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD... - Page 7 Input ports 1×HDMI Type A [19-pin female] Output ports 2×HDMI Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] Mechanical Housing Metal Enclosure Color Black Dimensions 120mm(W)×62.5mm(D)×14mm(H) Weight 166g Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 2.8W (max)
-
Page 8: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description This blue LED will illuminate when the unit has POWER LED a connected power supply. This blue LED will illuminate when the HDMI HDMI IN has connected an active HDMI source INPUT LED device with an HDMI cable. -
Page 9: Rear Panel
COPY: Copy the HDMI OUT 1 port EDID setting to the source device, the source device will transmit again the signal to all outputs. Dial switch OFF: When the dial switch is dialed in the ‘OFF’ position, signal input and output are (4K→... -
Page 10: Application Example
HDMI IN Connect to HDMI source devices such as DVD player or PS4. DC 5V Plug the 5V/1A DC power supply into the unit and connected the adapter to an AC outlet. 6. Application Example...
