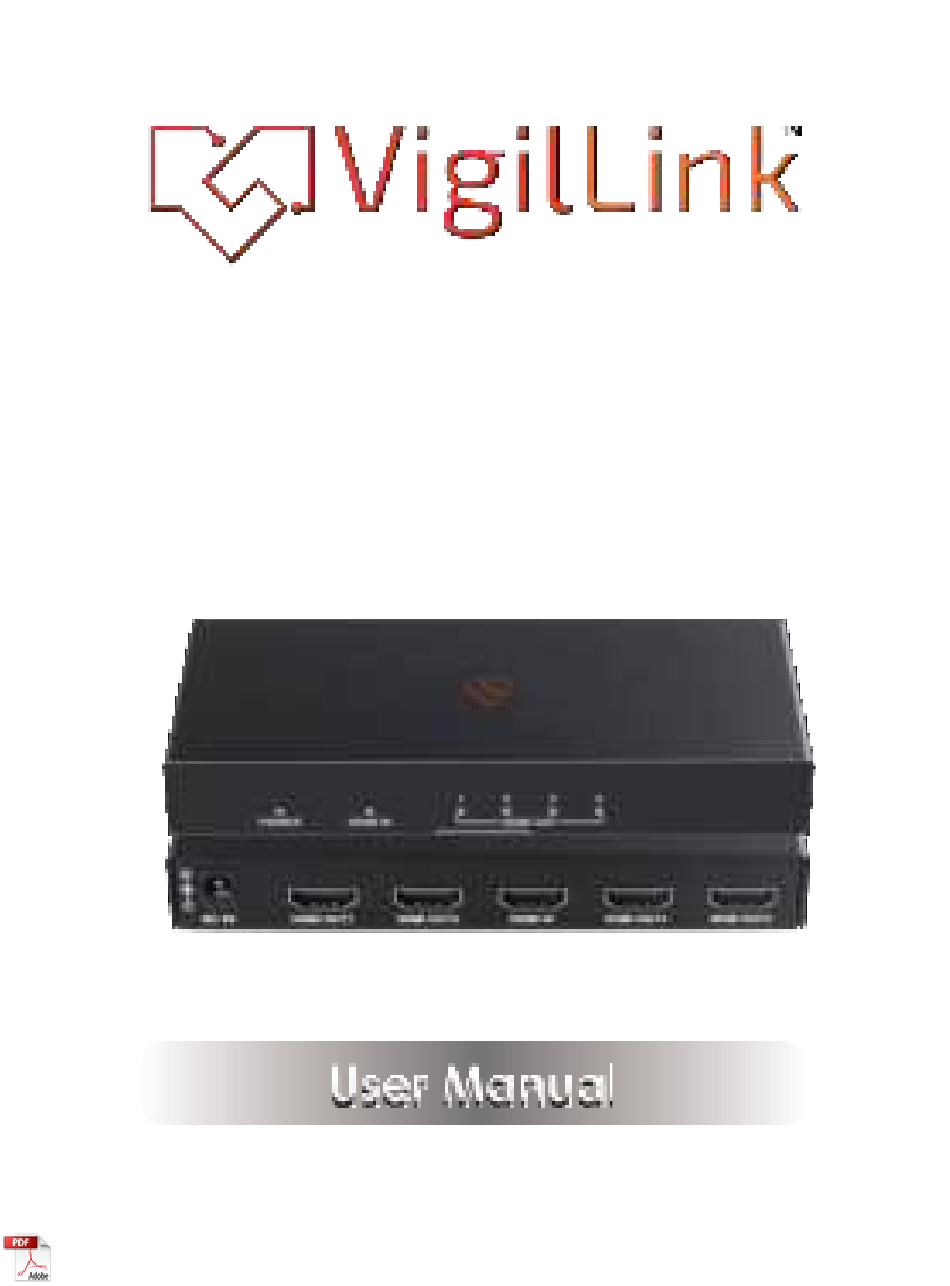

VigilLink VLSP-14H20D User Manual

1 x 44k hdmi splitter with scaler
Hide thumbs

Advertisement

Table of Contents

1 x 4 4K HDMI Splitter with
Scaler
VLSP-14H20D
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLSP-14H20D and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLSP-14H20D

Summary of Contents for VigilLink VLSP-14H20D

  • Page 1 1 x 4 4K HDMI Splitter with Scaler VLSP-14H20D VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The VLSP-14H20D is a 1 x 4 HDMI splitter with scaler, reliably distributes one HDMI input signal to four outputs at resolutions up to 4K@60Hz 4:4:4 chroma subsampling. It supports HDCP 2.2 and HDMI 2.0b specifications. With the...

  • Page 4: Specifications

    4. Specifica t ions Video Input/Output Signal Type HDMI with 4K@60Hz 4:4:4, HDCP 2.2, HDR, 3D, Scaler Input/Output Resolution Up to 4096x2160@60Hz, include 4K@60Hz /4K@30Hz / Supported 1080P /1080i /720P 4K: 8/10/12 bit Deep color 1080P: up to 16 bit Maximum Data Rate 18 Gbps Maximum Pixel Clock...

  • Page 5: Operation Controls And Functions

    5. Op e r a t io n Controls and Functions Name Function Description Power LED On/Off: The device is powered on/off. On: HDMI signal is detected on the HDMI input. HDMI IN Off: No HDMI signal is detected on the HDMI input. On: An HDMI display is connected to the HDMI output.

  • Page 6: Troubleshooting

    6. Troubleshooting No Power • Ensure the power is on. • Ensure you use the power adapter provided in the package. No Picture or Video Flash • Ensure all devices are on, and all cables are qualified and connected properly. Ensure all the cables’ length are within the maximum distance (refer to Specification table).

  • Page 7: Application Diagram

    7. Applica t ion Dia gra m...
