Summary of Contents for VigilLink VLSP-14CTH14

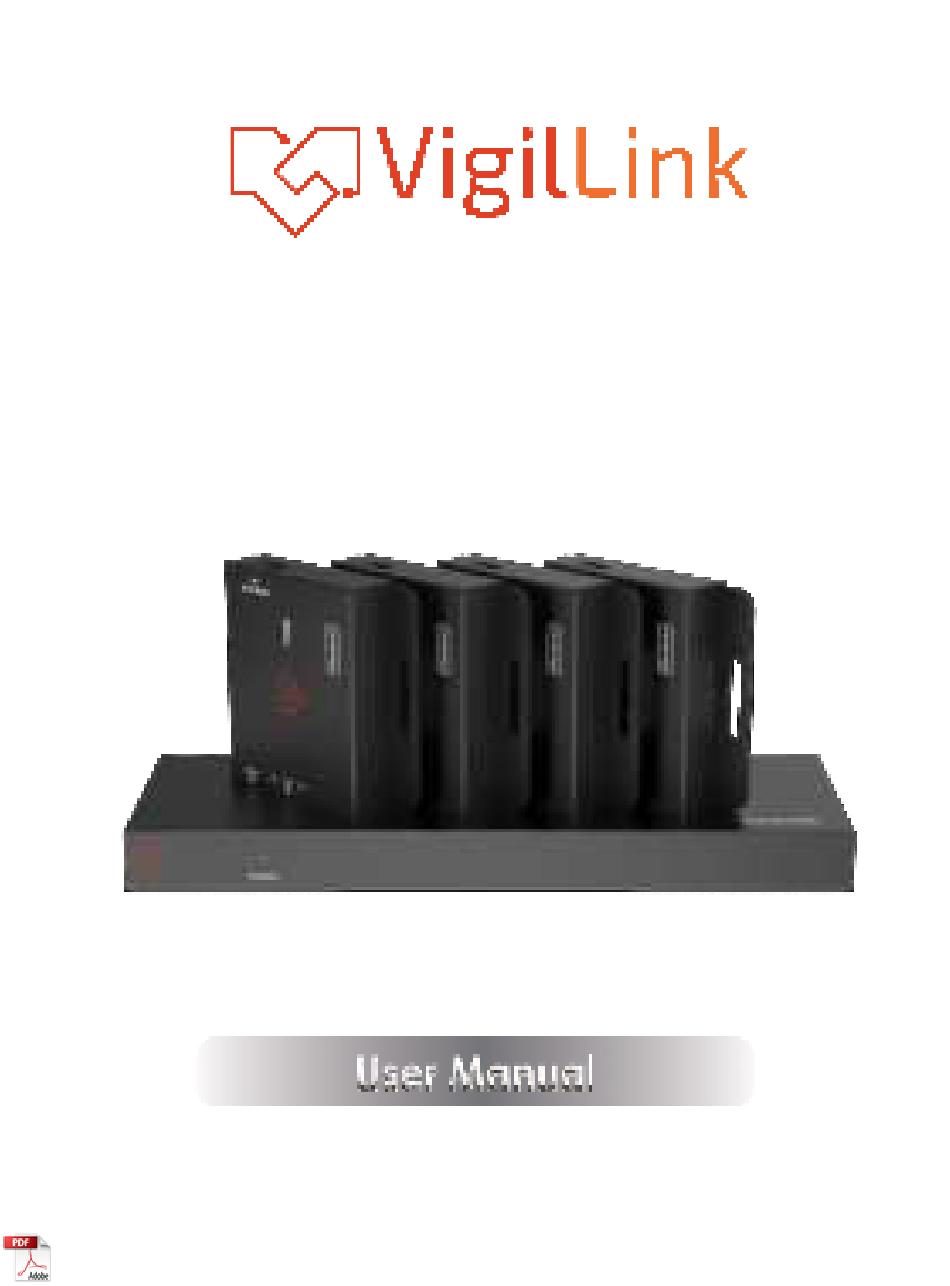

- Page 1 VLSP-14CTH14 1x4 HDMI 1.4 Splitter over CAT 70m 10.2Gbps VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This HDMI 1x4 Splitter can distribute 1 HDMI source signal to 4 display devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with 1 HDMI input, 1 HDMI loop output, and 4 CAT outputs. The HDMI signal trans- mission distance can be extended up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 297MHz/10.2Gbps 480i ~1080p50/60Hz, 4Kx2K@30Hz (4：4：4) Video Resolution Color Depth 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) Color Space RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio Formats Audio Human body model—±8kV (Air-gap discharge) &... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description When the Transmitter is powered on, the red power LED POWER LED will be on. CAT OUT (1~4) Connect to the CAT port of the Receiver with a CAT6 cable. Transmitter supports one-way POC function. -
Page 6: Receiver Panel
5.2 Receiver Panel Name Function Description HDMI signal output port. Connect to HDMI display HDMI OUT device such as HDTV. Connect to IR receiver cable, the IR signal will emit to the IR IN IR OUT port of the transmitter. CAT input port. -
Page 7: Ir Pin Definition
5.3 IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 8: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 0000 1080P, 2CH AUDIO 0001 1080P, DOLBY/DTS5.1 0010 1080P, HD AUDIO 0011 1080i, 2CH AUDIO 0100 1080i, DOLBY/DTS5.1 0101 1080i, HD AUDIO 0110 3D,1080P, 2CH AUDIO 0111... -
Page 9: Application Example
7. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
