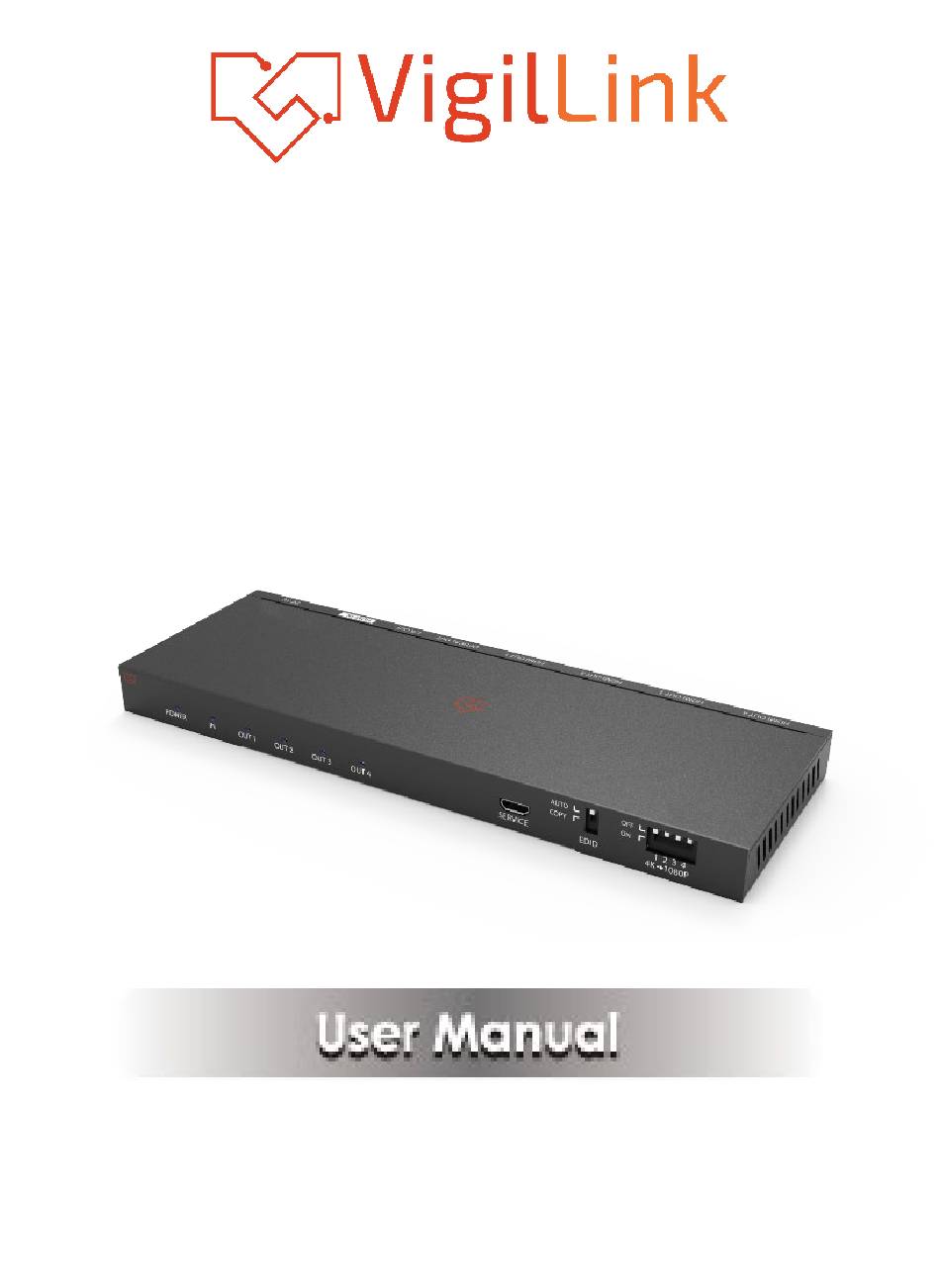

- Page 1 VLSP-AD14H20 1x4 HDMI 2.0 Splitter /w Audio De-embedded & Downscale 18Gbps VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Features ................3 3. Package Contents ............4 4. Specifications ..............5 5. Operation Controls and Functions ........6 5.1 Front Panel ............. 6 5.2 Rear Panel .............. 8 6. Application Example ............9... -
Page 4: Introduction
1. Introduction The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscale(4K->1080P) function. -
Page 5: Package Contents
switch on the panel. (COPY: It copies OUT 1 port EDID setting to all outputs port If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected, then the unit will copy HDMI OUT 3...etc. The priority order is OUT 1 to OUT 4. -
Page 6: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD... -
Page 7: Operation Controls And Functions
Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 3.5W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5.Operation Controls and Functions 5.1 Front Panel Number Name... - Page 8 HDMI These blue LEDs will illuminate when the HDMI OUT port has connected an active OUTPUT display device with an HDMI cable. SERVICE Firmware update used. (Manufacturer use port only.) EDID • AUTO: Compare the EDID setting of the HDMI OUT 1~ 4 port display device, then transmit the best EDID signal to the source device, the source device will transmit again EDID signal to all outputs.
-
Page 9: Rear Panel
5.2 Rear Panel Number Name Function description HDMI Connect to HDMI display devices such as a OUTPUT TV or monitor. OPTICAL Optical audio output. (This port outputs audio from HDMI IN port.) L/R OUT Analog audio output. (This port outputs audio from HDMI IN port.) HDMI IN Connect to HDMI source devices such as a DVD player or a PS4. -
Page 10: Application Example
6. Application Example...
