VigilLink VL-SP18-1 User Manual

1x8 hdmi 2.0 splitter 18gbps
Hide thumbs

Advertisement

Table of Contents

VL-SP18-1
1x8 HDMI 2.0 Splitter 18Gbps
VER 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL-SP18-1 and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VL-SP18-1

Summary of Contents for VigilLink VL-SP18-1

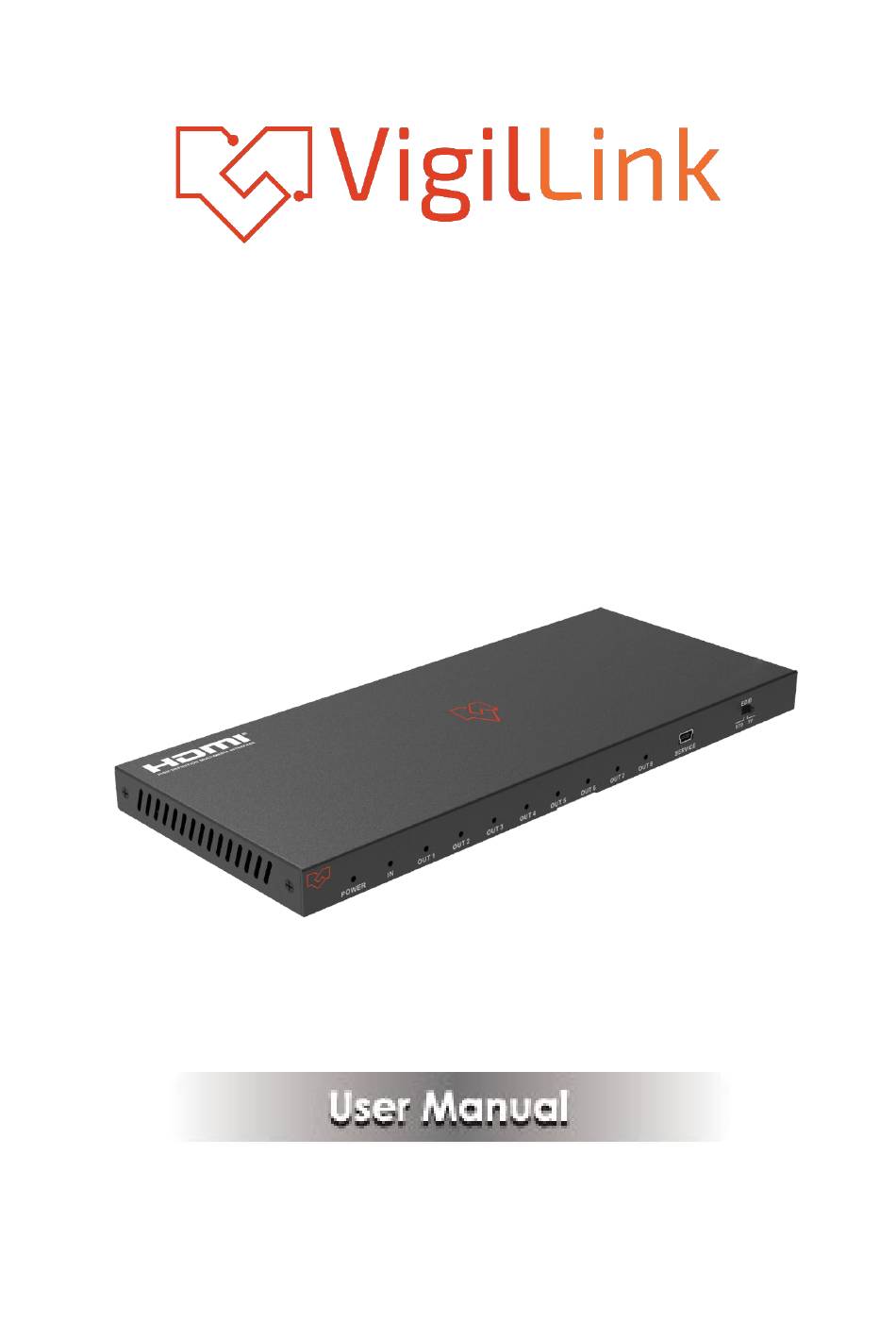

  • Page 1 VL-SP18-1 1x8 HDMI 2.0 Splitter 18Gbps VER 1.0...
  • Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3 1. Introduction 18Gbps 1x8 HDMI Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set as the COPY/ AUTO EDID configuration.
  • Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz HDMI Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X ESD Protection Human body model—±8kV (Air-gap discharge) &...
  • Page 5 5. Operation Controls and Functions Name Function description Number POWER LED This blue LED will illuminate when the device connects power supply. IN LED This blue LED will illuminate when HDMI IN port To connects an active source device. OUT LED These blue LEDs will illuminate when HDMI OUT ports connect to an active display device.
  • Page 6 will send again matching the display device signal to all outputs. HDMI OUT 1~8 Connect to the HDMI display devices such as TVs or Monitors with an HDMI cable. HDMI IN Connect to the HDMI source device such as DVD player or set-top box with an HDMI cable. DC 12V Plug the DC 12V power supply into the unit and connect the adaptor to an AC outlet.
  • Page 7 A: Input source devices such as Blu-ray / DVD / PS3 / PS4 player or Set-Top- Box or any 6G with HDCP2.2 source etc. Output with 6G HDMI TV / Display or audio amplifier etc. Note: To achieve 6G performance will need to collocation with a particular HDMI cable to get the better quality.
