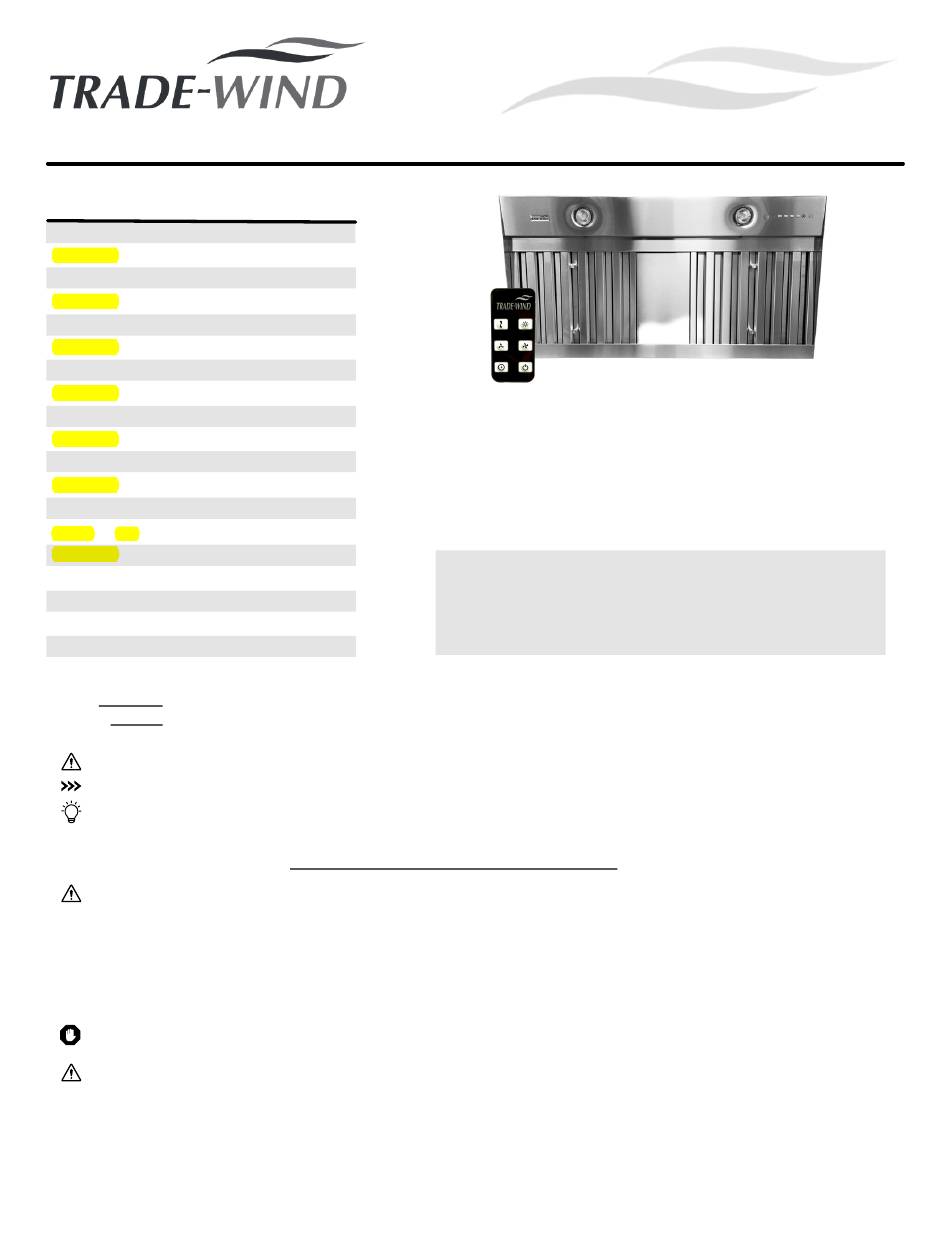

Trade-wind VSL4302RC Installation Instructions & Use & Care Manual

18"

Advertisement

PERFORMANCE · QUALITY · CUSTOMER SERVICE
FRONT TO
MODEL
BACK
WIDTH
VSL4302RC
18"
28 ⅜"
VSL4303RC
18"
28 ⅜"
VSL4304RC
18"
28 ⅜"
VSL4306RC
18"
28 ⅜"
VSL4362RC
18"
34 ⅜"
VSL4363RC
18"
34 ⅜"
VSL4364RC
18"
34 ⅜"
VSL4366RC
18"
34 ⅜"
VSL4422RC
18"
40 ⅜"
VSL4423RC
18"
40 ⅜"
VSL4424RC
18"
40 ⅜"
VSL4426RC
18"
40 ⅜"
VSL44212RC
18"
40 ⅜"
18"
46 ⅜"
VSL4482RC/3RC
VSL4486RC
18"
46 ⅜"
VSL44812RC
18"
46 ⅜"
VSL45412RC
18"
52 ⅜"
VSL46012RC
18"
58 ⅜"
VSL47212RC
18"
70 ⅜"
Installer:
Please leave Installation Instructions with the range hood liner.
Owner:
Please keep Installation Instructions for local electrical inspector's use and for future reference.
WARNINGS:
Must be followed carefully to avoid personal injury.
IMPORTANT:
Must be followed carefully to avoid damage and incorrect installation.
TIPS:
Contains helpful information to facilitate installation.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the
manufacturer at the address or telephone number listed in the warranty.
b) Before servicing or cleaning unit, switch power off at service panel, lock service panel, and lock the service
disconnection means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i. e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe').
P R O V E R B S
INTERNAL
CFM
BLOWER
290
390
390
600
290
390
390
600
290
390
390
600
1200
290/390
600
1200
1200
1200
1200
READ AND SAVE THESE INSTRUCTIONS
2 2 : 2 9
I N S T A L L A T I O N I N S T R U C T I O N S
* * * A T T E N T I O N * * *
P L E A S E R E M O V E T H E R I G H T S I D E
B A F F L E F I L T E R T O L O C A T E Y O U R
N E W C O N T R O L .
Before beginning installation, please thoroughly read and
become familiar with these instructions. Installation and
service must be completed by a qualified installer. Failure
to properly install this product may void the warranty.
© 2 0 2 3
T R A D E - W I N D
U S E & C A R E G U I D E
V S L 4 0 0 S E R I E S
( 1 8 " M O D E L S )
REVISED: JANUARY 1, 2023
M A N U F A C T U R I N G ,
L L C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSL4302RC and is the answer not in the manual?

Questions and answers

Summary of Contents for Trade-wind VSL4302RC

  • Page 1 ( 1 8 " M O D E L S ) PERFORMANCE · QUALITY · CUSTOMER SERVICE REVISED: JANUARY 1, 2023 FRONT TO INTERNAL MODEL BACK WIDTH BLOWER VSL4302RC 18" 28 ⅜" √ VSL4303RC 18" 28 ⅜" √ VSL4304RC 18"...
  • Page 2: Installation Instructions

    To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings, cabinets or into attics, crawl spaces, or garages. TO ACCESS THE INSTALLATION INSTRUCTIONS FOR YOUR TRADE-WIND® PRODUCT, PLEASE SCAN THE QR CODE: INSERT QR CODE WHEN READY FROM THE WEBSITE.
  • Page 3 MODEL BACK WIDTH COLOR BLOWER LIGHTS FLITERS CONTROL COLLAR CONTROL 18" 28 ⅜" √ √ √ 6" √ VSL4302RC 18" 28 ⅜" √ √ √ 7" √ VSL4303RC 18" 28 ⅜" √ √ √ 3 ¼" x 10" √ VSL4304RC 18"...
  • Page 4: Part 1: Planning The Installation

    Installation Instructions provided with the duct silencer. Given that most installations are different, a back-draft damper is not provided with this unit. TRADE-WIND® back draft dampers are also available from your local TRADE-WIND® dealer. Always install ventilation products with an approved wall or roof cap.
  • Page 5: Part 3: Electrical Connection

    (either in-line or roof top). If the ventilator is rated in watts rather than amps, divide the watts by 120 and this will give you the amperage rating. The TRADE-WIND® liner, without the internal motor, is supplied with a 6.
  • Page 6 LED LIGHT BULBS: TRADE-WIND® liners are designed for MR16/GU10 LED light bulbs. They can be purchased at most home or grocery stores. The bulbs provided with the unit are 3. 5 watt, 350 lumens, and 3000K (warm white color temperature). To remove the light bulbs, press your palm into the lens face of the bulb and turn a ¼...
  • Page 7: Range Of Remote Control

    REVISED: JANUARY 1, 2023 EXPLAINING THE REMOTE The diagram to the left shows all functions of the remote. Push the speed or light buttons once to turn on; push the same button a second time to turn off. You can use the “off”...
  • Page 8: Warranty

    For Service: If you need service on your TRADE-WIND® Ventilation Product, visit our website at: www. t- wusa. com and click on the warranty tab. Fill out the simple form providing the model number, serial number, date of purchase, and brief description of the problem.
  • Page 9: Building Codes

    B E S T P R A C T I C E S V E N T I N G I N S T A L L A T I O N I N S T R U C T I O N S F O R R A N G E H O O D S A N D W O O D H O O D L I N E R S ( A L L M O D E L S ) PERFORMANCE ·...
  • Page 10 REVISED: JANUARY 1, 2023 b. ) No portion of the ducting should be run so that the exhaust air flows downward. Since exhaust heat rises, forcing the air to flow downward will cause increased static pressure. As previously mentioned, improperly installed duct pipe will cause excessive static pressure (air resistance), that may result in rattling, vibration and air buffeting noises, as well as inadequate ventilation.
  • Page 11 No Mushroom Cap Style No "Goose-Neck" Style Only use a shape that looks like the picture shown. Call TRADE-WIND® Customer Service for any questions. 6. ATTACHING DUCT TO HOUSE FRAMEWORK The ventilation system should be attached to the framework in such a manner that the weight of the duct and fittings is supported with no stress on the duct joints, fittings or on the ventilator.
