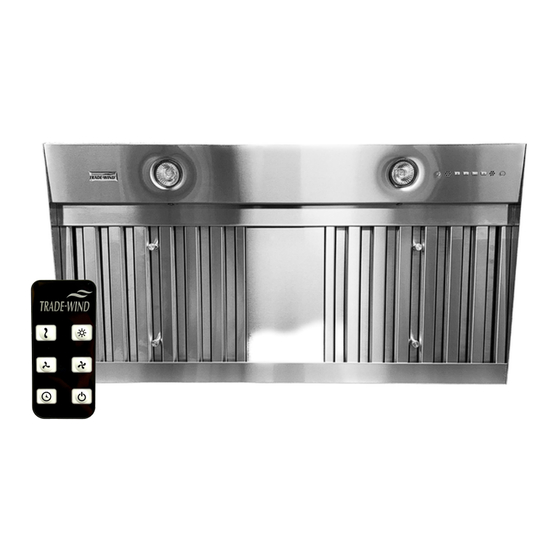

PERFORMANCE · QUALITY · CUSTOMER SERVICE
FRONT TO
MODEL
BACK
WIDTH
VSL436622RC
22"
34 ⅜"
VSL442622RC
22"
40 ⅜"
VSL4421222RC
22"
40 ⅜"
VSL448622RC
22"
46 ⅜"
VSL4481222RC
22"
46 ⅜"
VSL4541222RC
22"
52 ⅜"
VSL4601222RC
22"
58 ⅜"
VSL4721222RC
22"
70 ⅜"
Before beginning installation, please thoroughly read and become familiar with these instructions. Installation
and service must be completed by a qualified installer. Failure to properly install this product may void the
warranty.
Installer:
Please leave Installation Instructions with the range hood liner.
Owner:
Please keep Installation Instructions for local electrical inspector's use and for future reference.
WARNINGS:
Must be followed carefully to avoid personal injury.
IMPORTANT:
Must be followed carefully to avoid damage and incorrect installation.
TIPS:
Contains helpful information to facilitate installation.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the
manufacturer at the address or telephone number listed in the warranty.
b) Before servicing or cleaning unit, switch power off at service panel, lock service panel, and lock the service
disconnection means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i. e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe').
P R O V E R B S
3-SPEED
INTERNAL
BLOWER
CFM
√
600
√
600
√
1200
√
600
√
1200
√
1200
√
1200
√
1200
READ AND SAVE THESE INSTRUCTIONS
2 2 : 2 9
I N S T A L L A T I O N I N S T R U C T I O N S
* * * A T T E N T I O N * * *
P L E A S E R E M O V E T H E R I G H T
S I D E B A F F L E F I L T E R T O L O C A T E
Y O U R N E W C O N T R O L .
1
© 2 0 2 3
T R A D E - W I N D
U S E & C A R E G U I D E
V S L 4 0 0 S E R I E S
( 2 2 " M O D E L S )
REVISED: APRIL 1, 2023
M A N U F A C T U R I N G ,
L L C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trade-wind VSL436622RC
Summary of Contents for Trade-wind VSL436622RC
- Page 1 ( 2 2 " M O D E L S ) PERFORMANCE · QUALITY · CUSTOMER SERVICE REVISED: APRIL 1, 2023 3-SPEED FRONT TO INTERNAL MODEL BACK WIDTH BLOWER VSL436622RC 22" 34 ⅜" √ VSL442622RC 22" 40 ⅜" √ VSL4421222RC 22"...
-
Page 2: Installation Instructions
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings, cabinets or into attics, crawl spaces, or garages. TO ACCESS THE INSTALLATION INSTRUCTIONS FOR YOUR TRADE-WIND® PRODUCT, PLEASE SCAN THE QR CODE:... - Page 3 ELECTRONIC 3-SPEED DUCT FRONT TO S/S BAFFLE REMOTE TOUCH INTERNAL MODEL BACK COLOR BLOWER LIGHTS FLITERS CONTROL CONTROL WIDTH COLLAR VSL436622RC 22" 34 ⅜" √ √ √ 8" √ VSL442622RC 22" 40 ⅜" √ √ √ 8" √ VSL4421222RC 22"...
-
Page 4: Part 1: Planning The Installation
Installation Instructions provided with the duct silencer. Given that most installations are different, a back-draft damper is not provided with this unit. TRADE-WIND® back draft dampers are also available from your local TRADE-WIND® dealer. Always install ventilation products with an approved wall or roof cap. -
Page 5: Part 3: Electrical Connection
(either in-line or roof top). If the ventilator is rated in watts rather than amps, divide the watts by 120 and this will give you the amperage rating. The TRADE-WIND® liner, without the internal motor, is supplied with a 6. - Page 6 LED LIGHT BULBS: TRADE-WIND® liners are designed for MR16/GU10 LED light bulbs. They can be purchased at most home or grocery stores. The bulbs provided with the unit are 3. 5 watt, 350 lumens, and 3000K (warm white color temperature). To remove the light bulbs, press your palm into the lens face of the bulb and turn a ¼...
-
Page 7: Range Of Remote Control
EXPLAINING THE REMOTE The diagram to the left shows all functions of the remote. Push the speed or light buttons once to turn on; push the same button a second time to turn off. You can use the “off” button to power off the lights and blower simultaneously. The “5 minute delay auto off”... -
Page 8: Warranty
For Service: If you need service on your TRADE-WIND® Ventilation Product, visit our website at: www. t- wusa. com and click on the warranty tab. Fill out the simple form providing the model number, serial number, date of purchase, and brief description of the problem. -
Page 9: Building Codes
B E S T P R A C T I C E S V E N T I N G I N S T A L L A T I O N I N S T R U C T I O N S F O R R A N G E H O O D S A N D W O O D H O O D L I N E R S ( A L L M O D E L S ) PERFORMANCE ·... - Page 10 b. ) No portion of the ducting should be run so that the exhaust air flows downward. Since exhaust heat rises, forcing the air to flow downward will cause increased static pressure. As previously mentioned, improperly installed duct pipe will cause excessive static pressure (air resistance), that may result in rattling, vibration and air buffeting noises, as well as inadequate ventilation.
- Page 11 No Mushroom Cap Style No "Goose-Neck" Style Only use a shape that looks like the picture shown. Call TRADE-WIND® Customer Service for any questions. 6. ATTACHING DUCT TO HOUSE FRAMEWORK The ventilation system should be attached to the framework in such a manner that the weight of the duct and fittings is supported with no stress on the duct joints, fittings or on the ventilator.
