P7200 Series Models:
No Blower
P7236
P7242
P7248
P7260
P7272
CONTENTS:
Part 1 - Planning The Installation
Part 2 - Electrical Connection
Part 3 - Direction of Vent and Securing The Hood
Part 4 - Use & Care
Before beginning installation, please thoroughly read and become familiar with these instructions. Installation and
service must be completed by a qualified installer. Failure to properly install this product may void the warranty.
Please be advised that the Trade-Wind
that does not have a roof over the BBQ Hood to protect it from direct rain or potential water ingress. This Hood
should be installed with a MINIMUM of three (3) feet of weather proof roof coverage on all sides that are not
protected from direct rain by an adjacent wall.
It is required that all duct work and roof openings be thoroughly sealed with the applicable tape and/or roof sealant
to prevent ingress of water.
Installer:
Please leave Installation Instructions with the BBQ hood owner.
Please keep Installation Instructions for local electrical inspector's use and for future reference.
Owner:
WARNINGS: Must be followed carefully to avoid personal injury.
IMPORTANT: Must be followed carefully to avoid damage or incorrect installation.
TIPS: Contain helpful information to facilitate installation.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the
manufacturer at the address or telephone number listed in the warranty.
Revised 6/11/18
1200 CFM
P7236-12
P7242-12
P7248-12
P7260-23
P7272-23
®
P7200 Series BBQ Hood MAY NOT be installed on a Patio or Lanai area
READ AND SAVE THESE INSTRUCTIONS
Copyright © 2018 Trade-Wind Manufacturing, LLC
INSTALLATION INSTRUCTIONS &
USE & CARE GUIDE
®
Trade-Wind

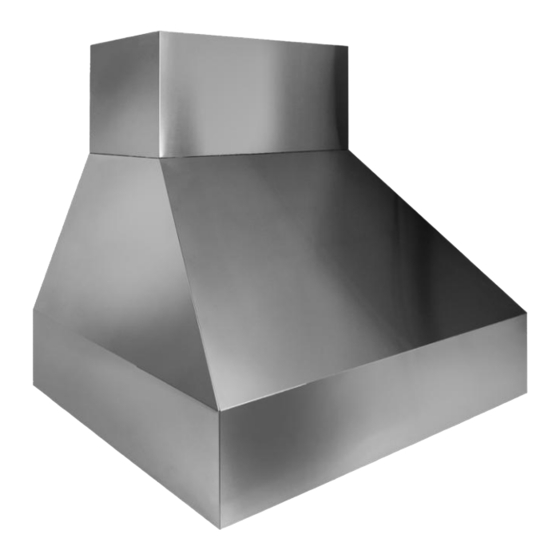

P7200 Series BBQ Hood
Proverbs 22:29
Page
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trade-wind P7200 Series
Summary of Contents for Trade-wind P7200 Series
- Page 1 Please be advised that the Trade-Wind P7200 Series BBQ Hood MAY NOT be installed on a Patio or Lanai area that does not have a roof over the BBQ Hood to protect it from direct rain or potential water ingress. This Hood should be installed with a MINIMUM of three (3) feet of weather proof roof coverage on all sides that are not protected from direct rain by an adjacent wall.
- Page 2 3. The ducting must be air tight. Use a minimum of 2 sheet metal screws at every duct joint. Then, seal the duct joints with high quality duct tape. 4. Do not use this unit with any solid-state speed control device. 5. This unit must be grounded. Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page...
- Page 3 Ducted fans must always be vented to the outdoors. e) For safe and secure wall mounting, the TRADE-WIND ® BBQ Hood should be mounted to a solid vertical surface of sufficient width to allow for mounting of the Hood. The horizontal surface should extend from a vertical plane to the point directly in front of the exhaust roof cap (or wall cap).
- Page 4 -PDC7242- EXT KIT for P7242 -PDC7248- EXT KIT for P7248 -PDC7260- EXT KIT for P7260 -PDC7272- EXT KIT for P7272 Optional duct cover extension for ceilings up to 12' Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page...
- Page 5 15 or 20 Amp circuit breaker. ® TRADE-WIND P7200 Series BBQ Hood is supplied with a 6.0 Amp three speed fan control. For safety precautions, each Ventilation Hood should be installed in a GFCI protected branch circuit. INSTRUCTIONS: Wire connections: (See Diagram Below) There are 3 wires on the front panel that require connection.
- Page 6 TRADE-WIND Because the P7200 Series BBQ Hood was designed for all applications, no mounting holes have been pre-drilled. This allows for custom applications for mounting. The hood should be attached to the framing through the top and back, whenever possible. Remove the filters. Mark and drill screw holes through the hood as required.
- Page 7 What is NOT Covered: Normal maintenance and service of any product that has been subject to misuse, negligence, ® accident, or installation inconsistent with the recommended Trade-Wind Installation Instructions ® and Trade-Wind Best Practices Guidelines.
- Page 8 In ventilation systems utilizing a roof cap or wall cap with a built-in damper, remove it. Dampers are unnecessary and will cause increased static pressure (air resistance), that may result in rattling, vibration and air buffeting noises, as well as inadequate ventilation. Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page...
- Page 9 The “radius” is one-half the diameter of a round duct, e.g., ½ of a 10” round duct is 5”. 3.1416 is “Pi”, the “constant” used when calculating the area of a circle. Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page...
- Page 10 Roof Cap Drawing *Required dimensions for roof cap - Minimizes static pressure and maximizes air flow to ensure optimum performance of your Trade-Wind product. Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page...
