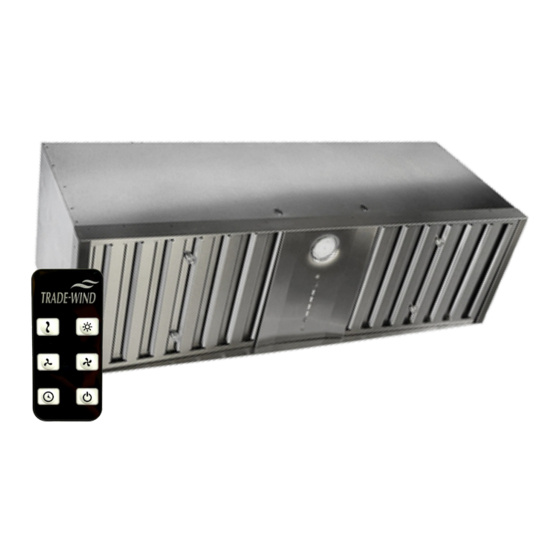

FRONT TO
MODEL
BACK
WIDTH
I32302RC
10 ½"
28 ⅜"
I32303RC
10 ½"
28 ⅜"
I32362RC
10 ½"
34 ⅜"
I32363RC
10 ½"
34 ⅜"
I32366RC
10 ½"
34 ⅜"
Before beginning installation, please thoroughly read and become familiar with these instructions. Installation
and service must be completed by a qualified installer. Failure to properly install this product may void the
warranty.
Installer:
Please leave Installation Instructions with the range hood insert.
Owner:
Please keep Installation Instructions for local electrical inspector's use and for future reference.
WARNINGS:
Must be followed carefully to avoid personal injury.
IMPORTANT:
Must be followed carefully to avoid damage and incorrect installation.
TIPS:
Contains helpful information to facilitate installation.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the
manufacturer at the address or telephone number listed in the warranty.
b) Before servicing or cleaning unit, switch power off at service panel, lock service panel, and lock the service disconnection
means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
P R O V E R B S
3-SPEED
INTERNAL
BLOWER
CFM
√
290
√
390
√
290
√
390
√
600
* * * A T T E N T I O N * * *
P L E A S E R E M O V E T H E R I G H T S I D E B A F F L E
F I L T E R T O L O C A T E Y O U R N E W C O N T R O L .
READ AND SAVE THESE INSTRUCTIONS
2 2 : 2 9
I N S T A L L A T I O N I N S T R U C T I O N S
U S E & C A R E G U I D E
© 2 0 2 3
T R A D E - W I N D
I 3 2 3 0 & I 3 2 3 6
I N S E R T S E R I E S
REVISED: JANUARY 1, 2023
M A N U F A C T U R I N G ,
L L C
Advertisement
Table of Contents
Related Manuals for Trade-wind INSERT 13230 Series
Summary of Contents for Trade-wind INSERT 13230 Series
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S U S E & C A R E G U I D E I 3 2 3 0 & I 3 2 3 6 I N S E R T S E R I E S PERFORMANCE ·...
-
Page 2: Installation Instructions
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings, cabinets or into attics, crawl spaces, or garages. TO ACCESS THE INSTALLATION INSTRUCTIONS FOR YOUR TRADE-WIND® PRODUCT, PLEASE SCAN THE QR CODE: INSERT QR CODE WHEN READY FROM THE WEBSITE. - Page 3 REVISED: JANUARY 1, 2023 IMPORTANT: CUT-OUT INFORMATION Cabinets or hood cut-outs should be at least 1/8” larger than outside dimensions ELECTRONIC 3-SPEED DUCT FRONT TO S/S BAFFLE REMOTE TOUCH INTERNAL MODEL COLOR BLOWER BACK WIDTH LIGHTS FLITERS CONTROL COLLAR CONTROL I32302RC 10 ½"...
-
Page 4: Part 1: Planning The Installation
PART 1: PLANNING THE INSTALLATION TRADE-WIND® Indoor Series Inserts are designed for installation inside custom hood canopies. Proper installation of the insert is directly related to the material from which the custom canopy is constructed. A qualified person must complete the installation of this unit. -
Page 5: Wiring Details
REVISED: JANUARY 1, 2023 It is the owner’s responsibility to ensure that a qualified person performs the electrical connection of this appliance. The electrical installation, including minimum supply wire size, must comply with the National Electric Code ANSI/NFPA 70-1990 (or latest revision) and local codes and ordinances. A copy of this standard may be obtained from: National Fire Protection Association, 1 Batterymarch Park, Quincy, Massachusetts 02269-9101 INSTRUCTIONS: A 15 to 20 amp electrical service is recommended for proper electrical supply. -
Page 6: Care And Cleaning
LED LIGHT BULBS: TRADE-WIND® Inserts are designed for MR16/GU10 LED light bulbs. They can be purchased at most home or grocery stores. The bulbs provided with the unit are 3. 5 watt, 350 lumens, and 3000K (warm white color temperature). To remove the light bulbs, press your palm into the lens face of the bulb and turn a ¼... -
Page 7: Warranty
For Service: If you need service on your TRADE-WIND® Ventilation Product, visit our website at: www. t- wusa. com and click on the warranty tab. Fill out the simple form providing the model number, serial number, date of purchase, and brief description of the problem. -
Page 8: Building Codes
B E S T P R A C T I C E S V E N T I N G I N S T A L L A T I O N I N S T R U C T I O N S F O R R A N G E H O O D S A N D W O O D H O O D I N S E R T S ( A L L M O D E L S ) PERFORMANCE ·... - Page 9 REVISED: JANUARY 1, 2023 b. ) No portion of the ducting should be run so that the exhaust air flows downward. Since exhaust heat rises, forcing the air to flow downward will cause increased static pressure. As previously mentioned, improperly installed duct pipe will cause excessive static pressure (air resistance), that may result in rattling, vibration and air buffeting noises, as well as inadequate ventilation.
- Page 10 No Mushroom Cap Style No "Goose-Neck" Style Only use a shape that looks like the picture shown. Call TRADE-WIND® Customer Service for any questions. 6. ATTACHING DUCT TO HOUSE FRAMEWORK The ventilation system should be attached to the framework in such a manner that the weight of the duct and fittings is supported with no stress on the duct joints, fittings or on the ventilator.
