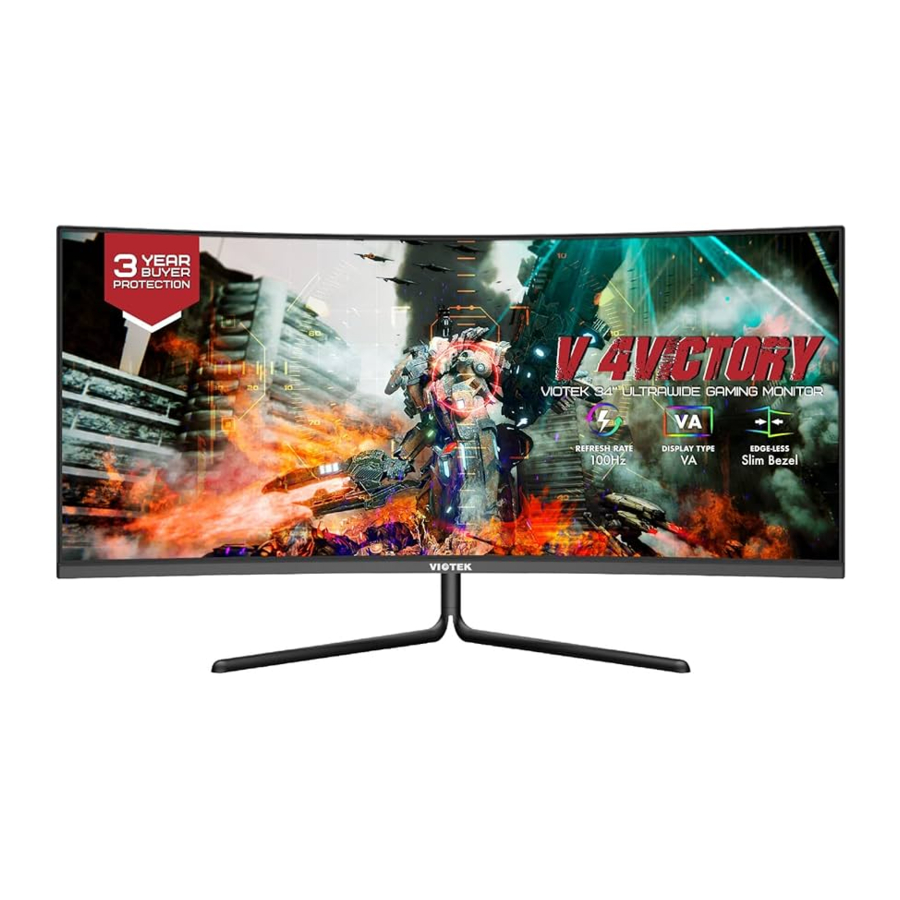

Viotek GNV34DB2 Manual

Box Contents

Extra screws may be included as backup.

Product Overview

Monitor Buttons

1. M Menu Button: Press to display the OSD menu or enter sub-menus.
2. Down Button: Press to move down in the menus
3. Up Button: Press to move up in the menus.
4. E Exit Button: Press to exit.
5. Power Button: Press to turn the monitor on/off.
6. LED Indicator: Changes colors to indicate status. Refer to Indicator Light Section.

The E button can also be used to switch between "Limit" and "Full" color gamuts when a compatible graphics card and either HDMI or DP connections are in use.

Monitor Ports

7. Power Connector: Insert the power cable to supply power to the monitor.
8. Audio Output: Insert the audio cable for output of audio signals.
9. DP Connector: Insert one end of the DP cable into the computer's DP output and connect the other end to the monitor's DP port.
10. HDMI Connectors: Insert one end of the HDMI cable into the computer's HDMI output and connect the other end to the monitor's HDMI port.

Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place it top-down on a desktop or table.
2. Take out the stem, headphone clip and base. Use the included screwdriver and one screw to fasten base to the stem.

3. Remove the foam covering the bottom of the monitor, then remove the adapter from the back of monitor. Use two NO. 1 screws to fasten adapter onto the stem.

4. With the stand fully assembled, reattach it onto the back of monitor. Then remove the remaining foam on monitor and stand it up on a flat, level desktop or table. Press the button to remove the monitor from the bracket if mounting.


Make sure the monitor is laid on a flat surface before removing the stand.

Mount Installation

1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand.

2. Press the button to remove the adapter on back of monitor, then tighten the included four NO. 2 screws onto the mounting holes on back of monitor.

3. Install the monitor on the wall, mount, or fixture as desired.


Basic Operation

1. Insert one end of the HDMI cable into your PC's graphics card. A DisplayPort (DP) cable may also be used. DisplayPort (DP) cable is not included.
2. Connect the other end of the cable to the corresponding connector on your monitor.

3. Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.

VIOTEK Adaptive Sync

Adaptive sync eliminates image tearing, stuttering and ghosting by adjusting the monitor's vertical refresh rate to the frame rate of the graphics card. It is compatible with GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by default and must be manually enabled in the monitor's OSD (see OSD Section). To use this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or G-Sync); have the latest graphic drivers; and be connected to the monitor using a DisplayPort (DP) cable.

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light indicates no video source, no horizontal or vertical signal has been detected or voltage is low. Please ensure your computer is on and all video cables are fully inserted and/or connected.

OSD

The On-Screen Display (OSD) Menu may be used to adjust your monitor's settings and appears on screen after turning on the monitor and pressing the M button.

When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer's configuration.

1. Press any one of the buttons () to activate the navigation window.

2. Press M () to enter the OSD menu.

3. Press or to browse functions.
   • Highlight the desired function, then press M to enter the sub-menu.
   • Press or to browse sub-menus, then press M to highlight the desired function.
   • Press or to highlight an option, then press M to confirm the settings and exit the current screen.
4. Press E () to exit the current screen.

OSD Menu Functions

ECO Modes and Gameplus Switching

1. Press any one of the buttons () to activate the navigation window.

2. Press button to switch ECO modes. These modes include Standard, Photo, Movie, Game, FPS, and RTS and can be used to optimize settings according to your activity.
   Standard mode is suitable for most activities.

3. Press button to switch Gameplus modes. Choose the crosshair icon best suited for your game. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.

4. Press E button to switch color gamuts mode between "Limit" and "Full"


Troubleshooting

The screen is blank

• Press the power button to turn the monitor on.
• Confirm the brightness and contrast settings are set normally.
• Check if the indicator light is flashing. If so, there is no signal from your video source.
• If your source is a notebook or laptop, be sure that its settings are in mirror or extension mode and the device itself is powered on.

The image is out of focus

• Ensure the video cable is inserted properly at both ends.

The screen is flashing

• Try an alternative power source. If the current one is insufficient, it may be causing this issue.
• Ensure devices such as non-shielded speakers, fluorescent lighting, AC transformers, table fans, etc., are a safe distance away from your screen to avoid magnetic disturbances.

The color bleeds or visual effects appear unusual.

• If your screen is all red or blue, or any colors disappear, check to see that the cable is properly inserted. A loose connection can cause a bad signal.
• Try connecting to another video source for comparison.

The screen appears to be scrolling, rolling, or moving unusually.

• Check that your source frequency is within 48-100Hz.
• Reconnect and ensure your video cable is secure.

The monitor needs cleaning

• Make sure the monitor has been powered off before cleaning.
• Always use soft, non-abrasive cloth when cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• If necessary, lightly dampen a non-abrasive cloth with water and gently clean the surface.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the monitor.

The indicator light does not work

• Check if the power is on.
• Check if the power line connected with power.

Cannot plug and play.

• Make sure the monitor is compatible with PC.
• Make sure the graphics card is compatible with the monitor.
• Check cable connectors for curved or damaged pins. Replace cables if needed.

Dim image

• Adjust the brightness and/or contrast ratio.

Image jitter/moire pattern

• Nearby electric equipment may interfere with the monitor.

Light indicator is on or flashing, but there is no image displayed on screen

• Check if the monitor is receiving power.
• Check if the graphics card is installed properly.
• Make sure the power cable is securely connected to the monitor.
• Check cable connectors for curved or damaged pins. Replace cables if needed.

Color shortage (red, green, or blue)

• Check cable connectors for curved or damaged pins. Replace cables if needed.

Color difference (colors are not optimized)

• Adjust RGB color or reset color temperature settings.

Specifications

Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp cloth, wait for your monitor to completely dry before plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid blocking these openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources, e.g., portable heaters or heating vents, as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor's screen or any part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it from falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or modification not performed by an authorized technician can result in damage to the monitor and/or possible exposure to high voltage electricity which may lead to serious injury or death.

VIOTEK^® shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.
