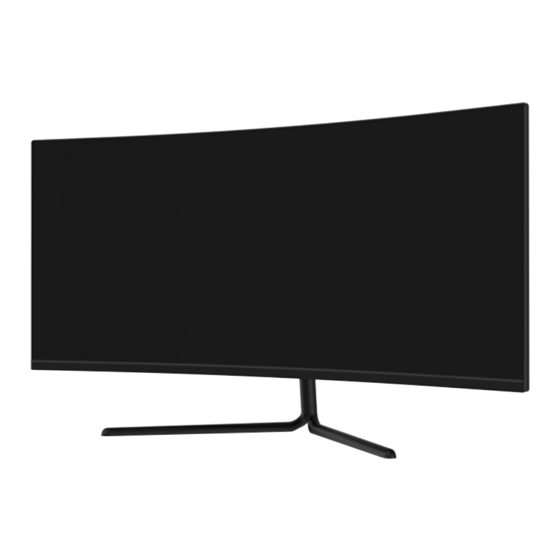

Curved monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

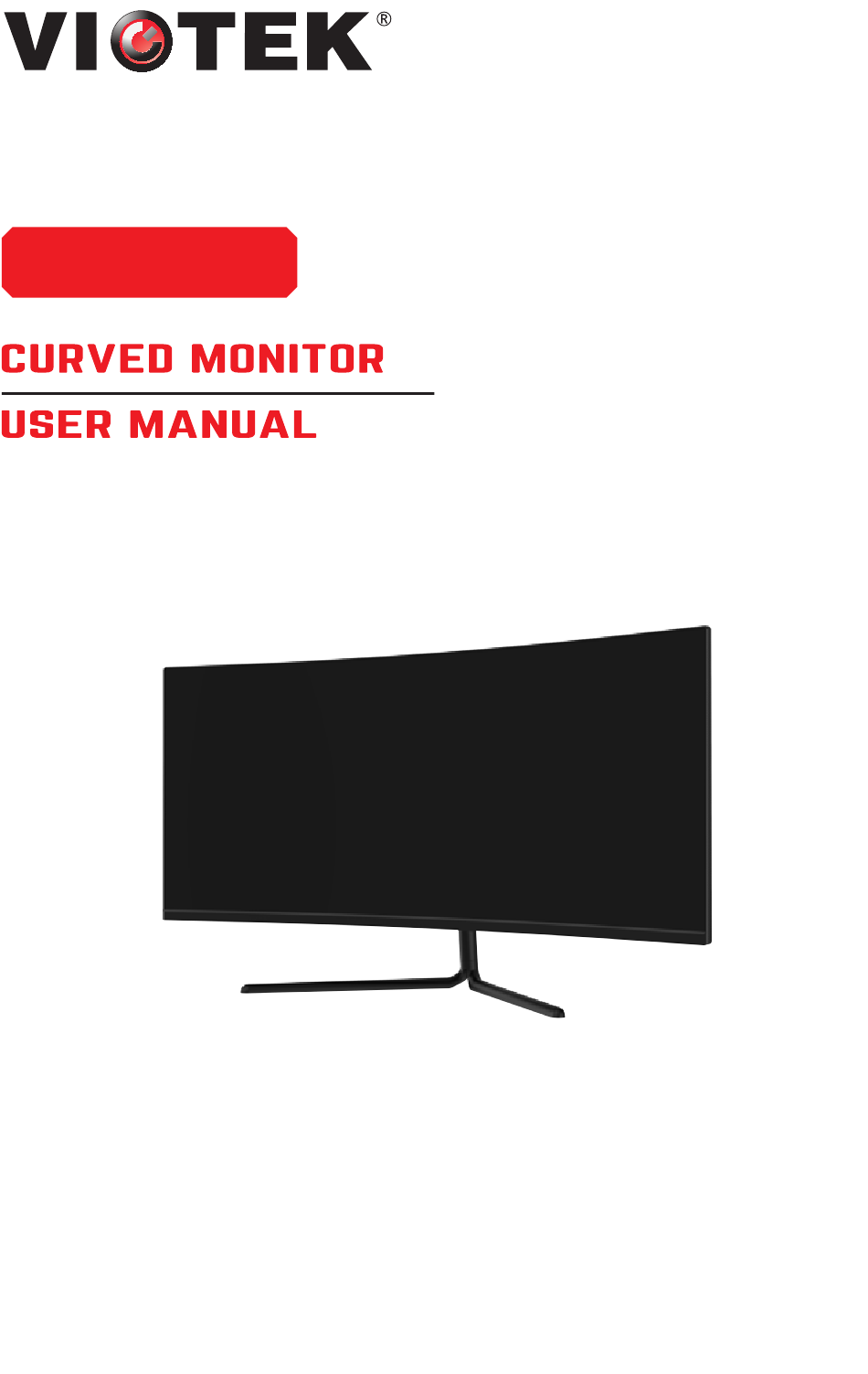

GNV34CB
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the latest
user manuals and product materials. ver.1.0 8/1/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GNV34CB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viotek GNV34CB

Summary of Contents for Viotek GNV34CB

  • Page 1 GNV34CB In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. ver.1.0 8/1/19...

  • Page 3: Table Of Contents

    Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 5 Section 3: Product Overview ............6 3.1 – Monitor Buttons ............... 6 3.2 – Monitor Ports ..............6 Section 4: Stand Installation ............7 Section 5: Mount Installation ............8 Section 6: Basic Operation ............

  • Page 4: Section 1: Safety Precautions

    VIOTEK ® shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.

  • Page 5: Section 2: Box Contents

    Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 NO. 1 Screws x 4 NO. 2 Screws x 4 Headphone Clip DP Cable x 1 (for Stand Installation) (for Wall Mounting) Power Cable x 1 Screwdriver x 1 User Manual x 1 (AC 100-240V, 50/60Hz)

  • Page 6: Section 3: Product Overview

    Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off.

  • Page 7: Section 4: Stand Installation

    Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it top-down on a desktop or table. 2. Take out the stem, headphone clip and base. Use the included screwdriver and one screw to fasten base to the stem.

  • Page 8: Section 5: Mount Installation

    Section 5: Mount Installation 1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. Button 2.

  • Page 9: Section 6: Basic Operation

    Section 6: Basic Operation 1. Insert one end of the DiplayPort (DP) cable into your PC’s graphics card. A DVI cable or an HDMI cable may also be used. DVI and HDMI cables not included. 2. Connect the other end of the cable to the corresponding connector on your monitor.

  • Page 10: Section 8: Osd

    Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration.

  • Page 11: Osd Menu Functions

    8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description BRIGHTNESS Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Standard, Game, Set visual mode RTS, FPS, Movie, Text Turn on DCR function Turn off DCR function IMAGE Aspect Wide, Auto, 4:3 Set aspect ratio COLOR TEMP.

  • Page 12: Section 9: Led Effects And Gameplus

    Section 9: LED Effects and Gameplus ) to activate the navigation window. 1. Press any one of the buttons (M, , , E, ) to switch Gameplus modes. Choose the crosshair icon best suited 2. Press for your game. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
  • Page 13 • Try connecting to another video source for comparison. The screen appears to be scrolling, rolling, or moving unusually. • Check that your source frequency is within 48-100Hz. • Reconnect and ensure your video cable is secure. The monitor needs cleaning •...

  • Page 14: Section 11: Specifications

    Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;...
  • Page 15 longer made or stocked. This Warranty is not assignable or transferable. The original purchaser may call WP’s toll-free number at 1-855-229-9472 for service requests. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes WP’s property.
  • Page 16 COPYRIGHT © 2019 VIOTEK. ALL RIGHTS RESERVED.
