Viotek NBV24CB Manual

Box Contents

Extra screws may be included as backup.

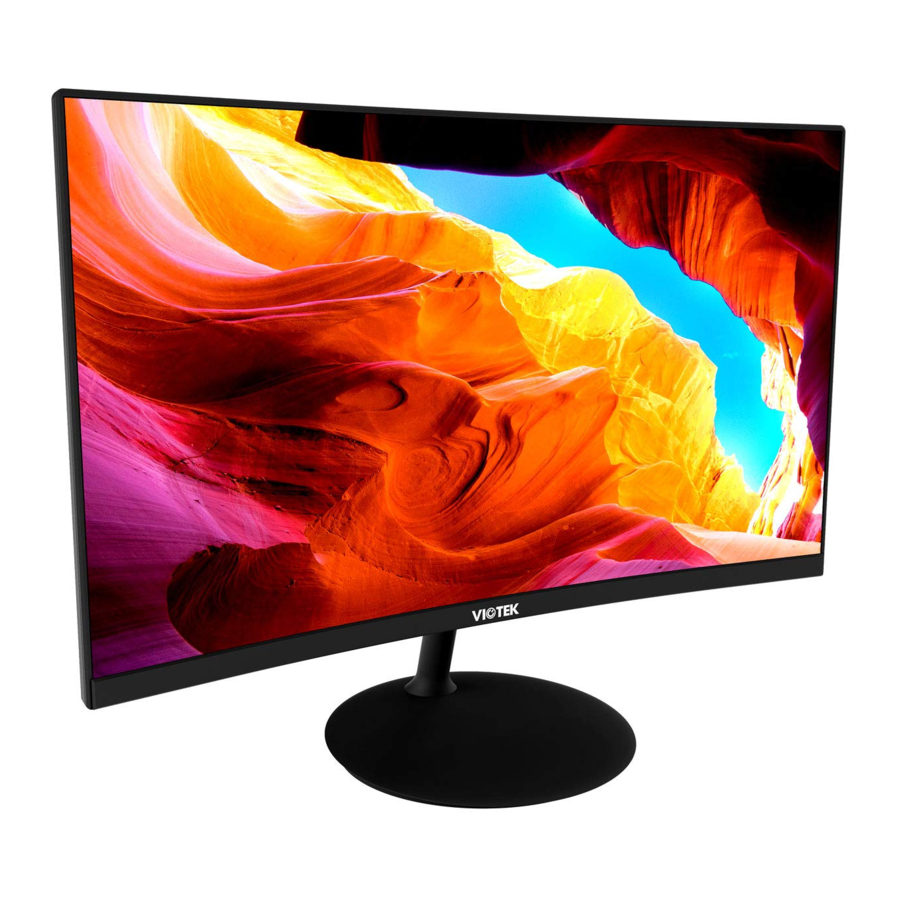

Product Overview

Monitor Buttons

1. Menu Button: Press to display the OSD menu or enter sub-menus.
2. Down Button: Press to move down in the menus.
3. Up Button: Press to move up in the menus.
4. Exit Button: Press to exit.
5. Power Button: Press to turn the monitor on/off.
6. LED Indicator: Changes colors to indicate status. Refer to Section "Indicator Light".

Monitor Ports

7. HDMI Connectors: Insert one end of the HDMI cable into the computer's HDMI output and connect the other end to the monitor's HDMI port.
8. VGA Connector: Insert one end of the VGA cable into the computer's VGA output and connect the other end to the monitor's VGA port.
9. Audio Output: Insert one end of the audio cable into an external audio source, e.g., speakers or headphones, to pass audio signals through the monitor.
10. DC IN Power Connector: Insert the power cable to supply power to the monitor.

Stand Installation

1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table.
2. Take out the stem and base. Insert the stem into the base opening and turn it clockwise to lock in place. Then use the included screwdriver and one screw to fasten base to the stem.

3. Attach the stand to monitor via the opening on the back. It should click into place. Make sure the stand is securely attached to the back of the monitor then remove the monitor from the remaining foam section and stand it up on the desired surface.


If needed, the stand can easily be detached from the monitor by pressing the button on the back of the monitor just above the stand. Make sure the monitor is laid on a flat surface then press the button and pull the stand away to remove it.

Wall Mounting

VESA and/or mounting accessories not included.

1. Open the package, take out the monitor with the foam still attached, and gently place it on a desktop or table. If the monitor is attached to the stand, remove the stand by pressing the button on the back of the monitor just above the stand.
2. At the back of the monitor, attach the four NO. 2 screws onto the mounting holes on back of monitor.

3. Follow the directions that came with your mounting kit (not included) to mount the monitor on the wall or monitor stand.


Basic Operation

1. Insert one end of the HDMI cable into your PC's graphics card. A VGA cable may also be used. A VGA cable is not included.
2. Connect the other end of the cable to the corresponding connector on your monitor.

3. Connect the power cable to your monitor, then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.

If you cannot locate the power button, please refer to Section "Monitor Buttons".

AMD FreeSync
The feature itself is off by default. In order to use this feature, please note you must have hardware with FreeSync capability, an HDMI cable, and the latest graphic drivers. To use this feature, connect your computer and monitor with an HDMI cable. After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu. See your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light indicates no video source, no horizontal or vertical signal has been detected or voltage is low. Please ensure your computer is on and all video cables are fully inserted and/or connected.

OSD Setup

The On-Screen Display (OSD) Menu may be used to adjust your monitor's settings and appears on screen after turning on the monitor and pressing the button.
When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer's standard configuration settings.

1. Press any one of the buttons () to activate the navigation window.

2. Press () to enter the OSD menu.

3. Press or to browse functions.
   • Highlight the desired function, then press to enter the sub-menu.
   • Press or to browse sub-menus, then press to highlight the desired function.
   • Press or to highlight an option, then press to confirm the settings and exit the current screen.
4. Press () to exit the current screen.

OSD Menu Functions

ECO Modes and Gameplus

1. Press any one of the buttons () to activate the navigation window.

2. Press () to switch Gameplus modes. Choose the crosshair icon best suited for your game. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.

3. Press () button to switch ECO modes. These modes (Standard, Text, Movie, Game, FPS, and RTS) can be used to optimize settings according to your activity. Standard mode is suitable for most activities.


Troubleshooting

The screen is blank

• Press power button to turn the monitor on.
• Confirm the brightness and contrast settings are set normally.
• Check if the indicator light is flashing. If so, there is no signal from your video source.
• If your source is a notebook or laptop, be sure that its settings are in mirror or extension mode and the device itself is powered on.

The image is out of focus

• Ensure the video cable is inserted properly at both ends.

The screen is flashing

• Try an alternative power source. Insufficient power may cause this issue.
• Ensure devices such as non-shielded speakers, fluorescent lighting, AC transformers, table fans, etc., are a safe distance away from your screen to avoid magnetic disturbances.

The color bleeds or visual effects appear unusual.

• If your screen is all red or blue, or any colors disappear, check to see that the cable is properly inserted. A loose connection can cause a bad signal.
• Try connecting to another video source for comparison.

The screen appears to be scrolling, rolling, or moving unusually.

• Check that your source frequency is within 60-75Hz.
• Reconnect and ensure your video cable is secure.

The monitor needs cleaning

• Make sure the monitor has been powered off before cleaning.
• Always use soft, non-abrasive cloth when cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• If necessary, lightly dampen a non-abrasive cloth with water and gently clean the surface.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the monitor.

The indicator light does not work

• Check that the power is on.
• Check that the power line connected with power.

Cannot plug and play.

• Ensure the monitor is compatible with PC.
• Ensure the graphics card is compatible with the monitor.
• Check that the pins in the interface are not curved.

Dim image

• Adjust the brightness and contrast ratio.

Image jitter/moire pattern

• Nearby electric equipment may interfere with the monitor.

Light indicator is on or flashing, but there is no image displayed on screen

• Check that the monitor power is on.
• Check that the graphics card is installed properly.
• Check that the signal line connects securely with the monitor.
• Check that the pins in the interface are curved.

Color shortage (red, green, or blue) • Inspect if the pins in the interface are curved. Image position is not centered/the size is not right

• Please adjust Clock or Auto setting.

Color difference (colors are not optimized)

• Adjust RGB color or reset color temperature.

Specifications

Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp cloth, wait for your monitor to completely dry before plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid blocking these openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources, e.g., portable heaters or heating vents, as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor's screen or any part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it from falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or modification not performed by an authorized technician can result in damage to the monitor and/or possible exposure to high voltage electricity which may lead to serious injury or death.

VIOTEK^® shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.
