Summary of Contents for Viotek GNV34DBE4

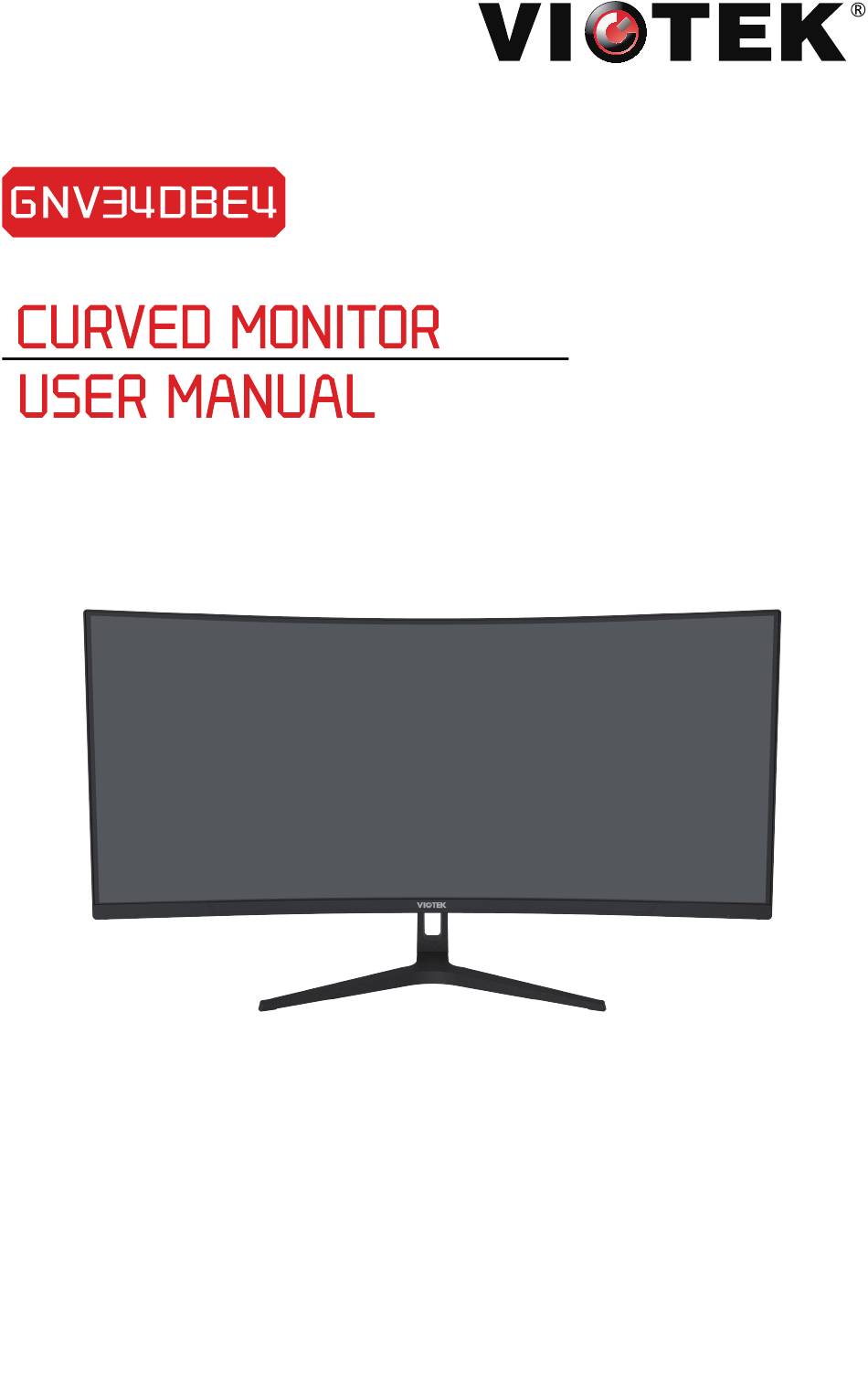

- Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ..................4 Section 2: Box Contents ...................5 Section 3: Product Overview ...................6 3.1 – Monitor Buttons ..................6 3.2 – Monitor Ports .....................6 Section 4: Stand Installation ..................7 Section 5: VESA Mounting ..................8 Section 6: Basic Operation ..................9 Section 7: Indicator Light ..................9 Section 8: OSD ......................10 8.1 –... -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter. -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 Stand Screw x 1 (with Attached Bracket) In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 - Monitor Buttons Menu Button: Press to enter the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. (Or be used as shortcut key to change Gameplus mode, refer to Section 9.) Up Button: Press to move up in the menus. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with the foam still attached. Gently place it face-down on a desktop or table. And remove the upper foam. 2. -
Page 8: Section 5: Vesa Mounting
Section 5: VESA Mounting The GNV34DBE4 monitor supports 75mm x 75mm VESA mounting. You can mount it to a wall or third-party VESA mount. VESA mounting screws and accessories are NOT INCLUDED. 1. Check Compatibility: Ensure your mount has a 75mm x 75mm VESA mount pattern. -
Page 9: Section 6: Basic Operation
It is compatible with GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™ . The feature is off on VIOTEK monitors by default and must be manually enabled in the monitor’s OSD (see Section 8: OSD). To use this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or G-Sync);... -
Page 10: Section 8: Osd
Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration. -
Page 11: Osd Menu Functions
8.1 – OSD Menu Functions OSD Menu Options Description Use the / to select the Input Source desired input source. HDMI1 HDMI2 Brightness 0~100 Adjust image brightness level Blacklevel 0~100 Adjust image black level Brightness/Contrast Contrast 0~100 Adjust image contrast level On/Off Turn on or off DCR Gamma... -
Page 12: Section 9: Shortcut Keys
Section 9: Shortcut Keys Use these shortcut keys to adjust monitor settings without accessing the OSD menu: 1. Press button to cycle through Picture Modes: Standard, Photo, Movie, Game, FPS and RTS. Game 2. Press button to cycle through Gameplus Modes. Select the crosshair icon that best suits your gameplay needs. -
Page 13: Section 10: Troubleshooting & Info
Section 10: Troubleshooting & Info 10.1 – General Problems The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, there is no signal from your video source. •... -
Page 14: Pbp (Picture By Picture) Resolution Information
1720 x 1440 @ resolution. 60Hz resolution. 10.3 – Hardware & System Requirements The below requirements are the minimum for your GNV34DBE4 monitor. These requirements are recommended in order to properly use all of the monitor’s features and ensure high-quality picture. Minimum Requirements Operating System: Windows®... -
Page 15: Section 12: Specifications
Section 12: Specifications Item Detail Model Number GNV34DBE4 Panel Type Screen Size 34-inch Curvature 1500R Viewing Angle H178° / V178° Aspect Ratio 21:9 Resolution 3440 x 1440 Backlight E-LED LED Indicator Solid Blue: Power On; Flashing Red: Standby Typical Brightness 220cd/m2 Default Color Temp. -
Page 16: Section 13: 3-Year Limited Hardware Warranty
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 17 FCC RELATED INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 COPYRIGHT © 2024 VIOTEK. ALL RIGHTS RESERVED.
