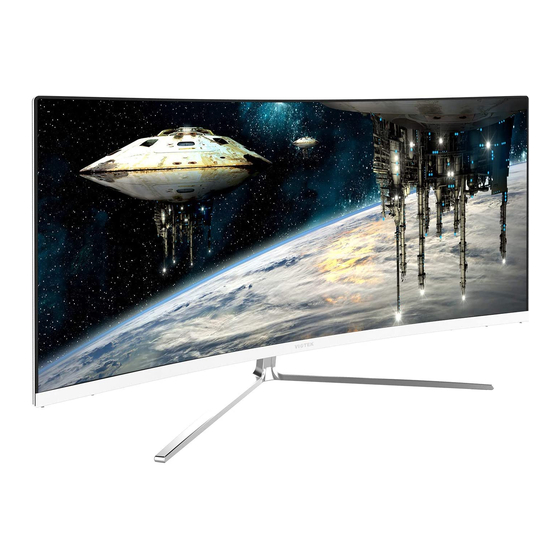

GN34CW/GN34CB
CURVED GAMING MONIT
OR
USER MANUAL
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the
latest user manuals and product materials. Ver 1.0 07/16/18
Advertisement
Table of Contents
Related Manuals for Viotek GN34CW
Summary of Contents for Viotek GN34CW
- Page 1 GN34CW/GN34CB CURVED GAMING MONIT USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Ver 1.0 07/16/18...
-
Page 2: Table Of Contents
Table of Contents Section 1: Safety Precautions..............3 Section 2: Box Contents .................4 Section 3: Product Overview ..............5 3.1 – Monitor Buttons .................5 3.2 – Monitor Ports ................5 Section 4: Stand Installation ..............6 Section 5: Mount Installation ..............7 Section 6: Connectivity Options ............8 6.1 –... -
Page 3: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons due to ®... -
Page 4: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 NO.1 Screws x 4 NO. 2 Screws x 4 (for Stand Installation) (for Mounting) DP Cable x 1 Power Cable x 1 (AC 100-240V, 50/60Hz) Screwdriver x 1 User Manual x 1 •... -
Page 5: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons Power Connector: Insert the power cable to supply power to the monitor. M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. -
Page 6: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam over the monitor before attaching the stand. 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. 2. Take out the two parts of the stand, remove the foam covering the back of the monitor, and press the button to remove the stand plate. -
Page 7: Section 5: Mount Installation
Section 5: Mount Installation This monitor ONLY includes screws which may be used when attaching the monitor to a VESA 100x100mm mount. No mount or mounting accessory is included. Keep the foam underneath the monitor before attaching it to a mount or accessory. No mount or mounting accessory is included. -
Page 8: Section 6: Connectivity Options
Section 6: Connectivity Options 6.1 – Removing the Port Covers Before connecting any cables remove the port covers first. If desired, the covers can be reinstalled once all cables are connected. Port Covers 6.2 – Connecting the Power Cable Connect the included power cable to the power connector, and then plug the other end into an wall outlet. -
Page 9: Dp Connectivity
6.4 – DP Connectivity In order for the monitor to receive DP signals from the computer, use the DP cable to connect the monitor to the computer. DP Cable (Included) DP OUTPUT 6.5 – HDMI Connectivity In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer. -
Page 10: Section 7: Basic Operation
Section 7: Basic Operation When connecting or disconnecting any cables, to remove the port covers first. They can be reinstalled after connecting your cables. Refer to Section 6.1. Insert one end of the DP cable into your PC’s graphics card. HDMI or DVI may also be used. -
Page 11: Section 9: Osd
Section 9: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc. -
Page 12: Osd Menu Functions
9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Input Source DVI NONE Switch to DVI signal input HDMI NONE Switch to HDMI signal input NONE Switch to DP signal input Brightness/ Brightness 0~100 Adjust display brightness Contrast Contrast 0~100 Adjust display contrast Turn on DCR function... -
Page 13: Section 10: Eco Modes And Gameplus Switching
Main Menu Sub-Menu Options Description Multi- Multi-Window Off, PIP Mode, Select PIP/PBP modes according to the Window PBP 2Win number of input signals etc. Sub Win2 DVI, HDMI, DP Select according to input signal for PIP/ Input PBP mode PIP Size Small, Medium, Adjust the PIP/PBP window size Large... -
Page 14: Section 11: Troubleshooting
Section 11: Troubleshooting 11.1 – General Problems The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, there is no signal from your video source. •... -
Page 15: Pip (Picture In Picture) Input Information
11.2 – PIP (Picture in Picture) Input Information Mode Home Screen Picture in Picture Additional Interchange Picture Mode Input Source Input Source Window HDMI Mode 1 Mode 2 HDMI Mode 3 Note: ”O” means this feature is supported while “X” means it is not supported. 11.3 –... -
Page 16: Section 12: Information
17.2 Ibs/21.6 Ibs 12.2 – Resolution Compatibility for DP System Requirements below are the minimum system requirements for your GN34CW/ GN34CB monitor. The requirements are recommended in order to properly use all of the monitor’s features and ensure high-quality picture. Minimum Requirements Operating System: Windows®... -
Page 17: Section 13: 1 Year Limited Hardware Warranty
Section 13: 1 Year Limited Hardware Warranty Your VIOTEK GN34CW/GN34CB Curved Gaming Monitor (”Product”) includes a ® One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers. - Page 18 THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
