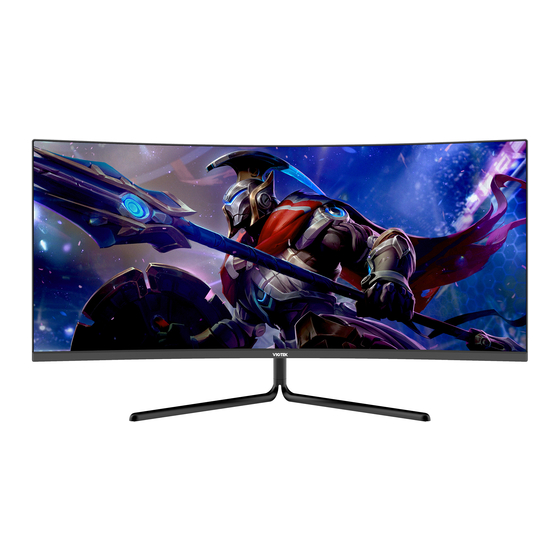

- Page 1 GNV34DBE2 GAMING MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ................4 Section 2: Box Contents ..................5 Section 3: Product Overview ................6 3.1 – Monitor Buttons ..................6 3.2 – Monitor Ports ..................6 Section 4: Stand Installation ................7 Section 5: Mount Installation ................8 Section 6: Basic Operation .................9 Section 7: Indicator Light ..................9 Section 8: OSD .....................10 8.1 –... -
Page 4: Section 1: Safety Precautions
® VIOTEK shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter. -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 NO. 1 Screws x 4 NO. 2 Screws x 4 Headphone Clip DP Cable x 1 (for Stand Installation) (for Wall Mounting) Power Cable x 1 Screwdriver x 1 User Manual x 1 (AC 100-240V, 50/60Hz) -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it top-down on a desktop or table. 2. Take out the stem, cable clip and base. Use the included screwdriver and one screw to fasten base to the stem. -
Page 8: Section 5: Mount Installation
Section 5: Mount Installation 1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. Button 2. -
Page 9: Section 6: Basic Operation
GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by default and must be manually enabled in the monitor’s OSD (see Section 8: OSD). To use this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or G-Sync);... -
Page 10: Section 8: Osd
Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M ( ) button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration. -
Page 11: Osd Menu Functions
8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description DP1; DP2 NONE Switch to DP signal input Input Source HDMI1; HDMI2 NONE Switch to HDMI signal input Brightness 0~100 Adjust display brightness Black level 0~100 Adjust display blacklevel Brightness/ Contrast 0~100 Adjust display contrast... -
Page 12: Section 9: Eco Modes And Gameplus Switching
Main Menu Sub-Menu Options Description Language English, Español, Set OSD language Русский, Français, 한국, 日本語, 简体 中文 Adjust the OSD’s horizontal position OSD H-Position 0-100 OSD V-Position 0-100 Adjust the OSD’s vertical position 0-100 Adjust OSD’s overall transparency Transparency OSD Time Out 5-100 Set how long the OSD remains open after non-use... -
Page 13: Section 10: Troubleshooting
Section 10: Troubleshooting 10.1 – General Problems The screen is blank • Press the power button to turn on the monitor. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, there is no signal from your video source. •... -
Page 14: Pip (Picture In Picture) Input Information
10.2 – PIP (Picture in Picture) Input Information Mode Primary Screen Picture in Picture Swap Picture Source Additional Source Windows Mode HDMI Mode 1 Mode 2 HDMI Note: ” ” means this feature is supported while “X” means it is not supported. 10.3 –... -
Page 15: Section 11: Cleaning
Section 11: Cleaning The monitor needs cleaning. Take the following steps when cleaning. Do not press the monitor display with hands or other objects; otherwise, there is a risk of damaging the screen. 1. Power off the monitor and PC. 2. -
Page 16: Section 12: Specifications
Section 12: Specifications Item Detail Model Number GNV34DBE2 Screen Size 34” Curvature 1500R Viewing Angle H178°/ V178° Aspect Ratio 21:9 Resolution 3440 x 1440p Backlight E-LED Power on: Blue (solid); Power saving: Blue (flashing) LED Indicator Brightness Typ: 350 cd/m ;... -
Page 17: Section 13: Three-Year Limited Hardware Warranty
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 18 the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 20 COPYRIGHT © 2021 VIOTEK. ALL RIGHTS RESERVED.
