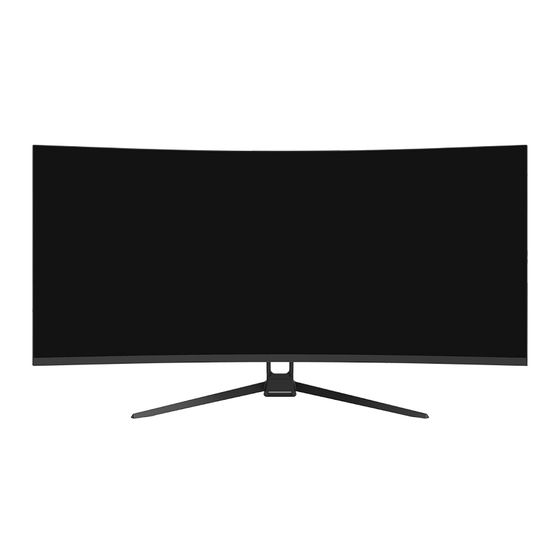

- Page 1 GNV34DBE3 GAMING MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions..............4 Section 2: Box Contents .................5 Section 3: Product Overview ..............6 3.1 – Monitor Buttons .................6 3.2 – Monitor Ports ................6 Section 4: Stand Installation ..............7 Section 5: Wall Mounting................8 Section 6: Basic Operation ..............9 Section 7: Indicator Light ...............9 Section 8: OSD ..................10 8.1 –... -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter. -
Page 5: Section 2: Box Contents
Section 2: Box Contents Stand Stem x 1 Monitor x 1 (with Attached Bracket) Stand Base x 1 NO. 1 Screw x 1 Power Cable x 1 HDMI Cable x 1 DP Cable x 1 Screwdriver x 1 User Manual x 1... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Up Button: Press to move up in the menus. Down Button: Press to move down in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. Open the package and take out the monitor with the foam still attached. Gently place it face-down on a desktop or table. And remove the upper foam. 2. -
Page 8: Section 5: Wall Mounting
Section 5: Wall Mounting This monitor ONLY includes screws that may be used when attaching the monitor to a mount. No mount or mounting accessory is included. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. -
Page 9: Section 6: Basic Operation
It is compatible with GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by default and must be manually enabled in the monitor’s OSD (see Section 8: OSD). To use this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or G-Sync);... -
Page 10: Section 8: Osd
Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration. -
Page 11: Osd Menu Functions
8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description HDMI 1; NONE Switch to HDMI signal input HDMI 2; Input Source DP 1, DP 2 NONE Switch to DP signal input Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Brightness/ Contrast Turn on DCR function... -
Page 12: Section 9: Display Adjusting And Gameplus Switching
Main Menu Sub-Menu Options Description English, 简体中文， 한국어， Русский, Language Set OSD language Español, 日本語, Français 0-100 Adjust the OSD’s horizontal position H-Position OSD V-Position 0-100 Adjust the OSD’s vertical position 0-100 Set the OSD’s overall transparency Transparency Set how long the OSD remains open OSD Time Out 5-100 after non-use When the user flips the display, this... -
Page 13: Section 10: Troubleshooting
Section 10: Troubleshooting 10.1 – General Problems The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, there is no signal from your video source. •... -
Page 14: Pbp (Picture By Picture) Resolution Information
1440 @ 60Hz resolution. 1440 @ 60Hz resolution. At this resolution, image tearing and other visual artifacts should be minimized. Section 11: Information 11.1 – Specifications Item Detail Model Number GNV34DBE3 Screen Size 34’’ Curvature 1500R Viewing Angle H178° / V178° Panel Type... -
Page 15: Resolution Compatibility For Hdmi/Dp
11.7 lb./17.6 lb. Weight) 11.2 – Resolution Compatibility for HDMI/DP The below requirements are the minimum for your GNV34DBE3 monitor. These requirements are recommended in order to properly use all of the monitor’s features and ensure high-quality picture. Minimum Requirements Operating System: Windows®... -
Page 16: Section 12: Cleaning
Section 12: Cleaning The monitor requires regular cleaning. Take the following steps to carefully and safely clean the monitor. Do not press the monitor display with hands or other objects; otherwise, there is a risk of damaging the screen. 1. Power off the monitor and PC. 2. -
Page 17: Section 13: Three-Year Limited Hardware Warranty
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 18 FCC RELATED INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 COPYRIGHT © 2023 VIOTEK. ALL RIGHTS RESERVED.
