Summary of Contents for Viotek GNV30CBXA

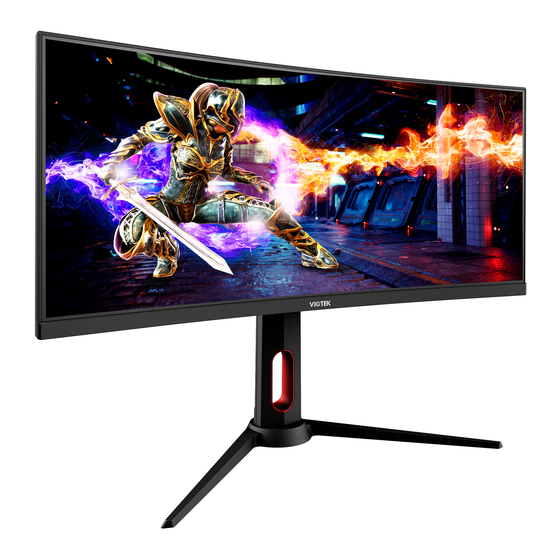

- Page 1 GNV30CBXA GAME MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions..............4 Section 2: Box Contents .................5 Section 3: Product Overview ..............6 3.1 – Monitor Buttons .................6 3.2 – Monitor Ports ................6 Section 4: Stand Installation ..............7 Section 5: Mount Installation ..............9 Section 6: Basic Operation ..............10 Section 7: Indicator Light ...............10 Section 8: OSD ..................11 8.1 –... -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons ®... -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 Power Cable x 1 (AC 100-240V, 50/60Hz) DP Cable x 1 Screw x 1 User Manual x 1... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Left Button: Press to move left in the menus / adjust value. Right Button: Press to move right in the menus / adjust value. E Exit Button: Return to previous menu / auto adjust. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it face-down on a desktop or table. 2. Take out the stem and base. Use the included screwdriver and one screw to fasten base to the stem. - Page 8 4. Place the monitor on your desktop or table after completing the installation and carefully adjust the monitor’s height, angle and/or orientation as desired. Orientation adjust 90° Height adjust 4.72 in. (120 mm) * (Base must be raised to complete 90° rotation.) Pivot adjust 20°...
-
Page 9: Section 5: Mount Installation
Section 5: Mount Installation 1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. Button 2. -
Page 10: Section 6: Basic Operation
Section 6: Basic Operation 1. Insert one end of the DP cable (included) into your PC’s graphics card. An HDMI cable (not included) may also be used. 2. Connect the other end of the cable to the corresponding port on your monitor. DP Port Audio Out HDMI Ports... -
Page 11: Section 8: Osd
Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button on back of the monitor. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s standard configuration settings. -
Page 12: Osd Menu Functions
8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Turn on DCR function Picture Turn off DCR function Standard, Photo Movie, Game, Set visual display mode FPS, RTS Set the display color temp. based Color Normal, Warm, on your preference... - Page 13 Main Menu Sub-Menu Options Description Wide Screen, 4:3, Aspect Ratio Set aspect ratio 1:1, Auto Off, Low, Low blue light Medium, Set blue light filtering level MaxHigh Other Response On, Off Turn on or off response time Time Turn the FreeSync/G-sync FreeSync On, Off function on/off...
-
Page 14: Section 9: Eco Modes And Gameplus
Section 9: ECO Modes and Gameplus 1. Press button to switch ECO modes. These modes (Standard, Text, Movie, Game, FPS, and RTS) can be used to optimize settings according to your activity. Standard mode is suitable for most activities. 2. Press E button to switch signals input source. Auto Source HDMI1 HDMI2... - Page 15 The screen is flashing • Try an alternative power source. If the current one is insufficient, it may be causing this issue. • Ensure devices such as non-shielded speakers, fluorescent lighting, AC transformers, table fans, etc., are a safe distance away from your screen to avoid magnetic disturbances.
-
Page 16: Section 11: Specifications
We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive. Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received... - Page 17 within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a new product or a refurbished one that is substantially equivalent to the original product.
- Page 18 to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·...
- Page 20 COPYRIGHT © 2021 VIOTEK. ALL RIGHTS RESERVED.
