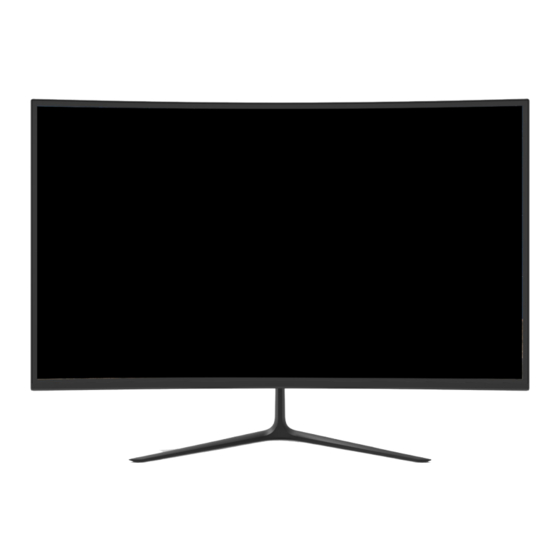

- Page 1 GNV27CB CURVED MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions..............4 Section 2: Box Contents .................5 Section 3: Product Overview ..............6 3.1 – Monitor Buttons .................6 3.2 – Monitor Ports ................6 Section 4: Stand Installation ..............7 Section 5: Mount Installation ..............8 Section 6: Basic Operation ..............9 Section 7: Indicator Light ...............9 Section 8: OSD ..................10 8.1 –... -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons ®... -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 PM4 Screws x 4 BM5 Screw x 1 HDMI Cable x 1 DP Cable x 1 User Manual x 1 Decorative Cover x 1 Power Adapter & Power Cable x 1 The screws are 10mm x 5... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. E Exit Button: Press to exit. Or press E button directly to enter the channels select screen. Up Button: Press to move up in the menus. Down Button: Press to move down in the menus. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table 2. Take out the two parts of the stand, and remove the foam covering the back of the monitor. -
Page 8: Section 5: Mount Installation
Section 5: Mount Installation Keep the foam underneath the monitor before attaching the stand to a mount or accessory. 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. -
Page 9: Section 6: Basic Operation
GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by default and must be manually enabled in the monitor’s OSD (see Section 8: OSD). To use this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or G-Sync);... -
Page 10: Section 8: Osd
Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc. -
Page 11: Osd Menu Functions
8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Luminance Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Black Level 0~100 Adjust display black level Turn on DCR function Turn off DCR function Standard, Game, Set visual mode Movie, Text, FPS, HDR mode On, Off... -
Page 12: Section 9: Shortcut Keys
Section 9: Shortcut Keys 1. Press button to bring up the Brightness screen, and press to adjust the value. Brightness 2. Press button to bring up the Volume screen, and press to adjust the value. Volume Press E button to bring up the Channel screen, and press to switch input source. -
Page 13: Section 10: Troubleshooting
Section 10: Troubleshooting The screen is blank • Press the power button to turn on the monitor. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, this indicates there is no signal from your video source. -
Page 14: Section 11: Cleaning
Light indicator is on or flashing, but there is no image displayed on screen • Check that the monitor power is on. • Check that the graphics card is installed properly. • Check that the signal line connects securely with the monitor. •... -
Page 15: Section 12: Specifications
Section 12: Specifications Item Detail Model Number GNV27CB Model Type CSOT Screen Size 27’’ Curvature 1800R Viewing Angle 178° (H)/178° (V) Aspect Ratio 16:9 Resolution 1920x1080 Backlight ELED Framless Type LED Indicator Power on: Blue (LED); Standby : Red Flashing (LED) -
Page 16: Resolution Compatibility For Dp
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 17 DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
- Page 20 COPYRIGHT © 2022 VIOTEK. ALL RIGHTS RESERVED.
