Packs; Default Presets On The Dimmer Packs - AMX PRO-DP16 DECOR PROLINK FLUSH MOUNT KEYPAD PANEL Instruction Manual

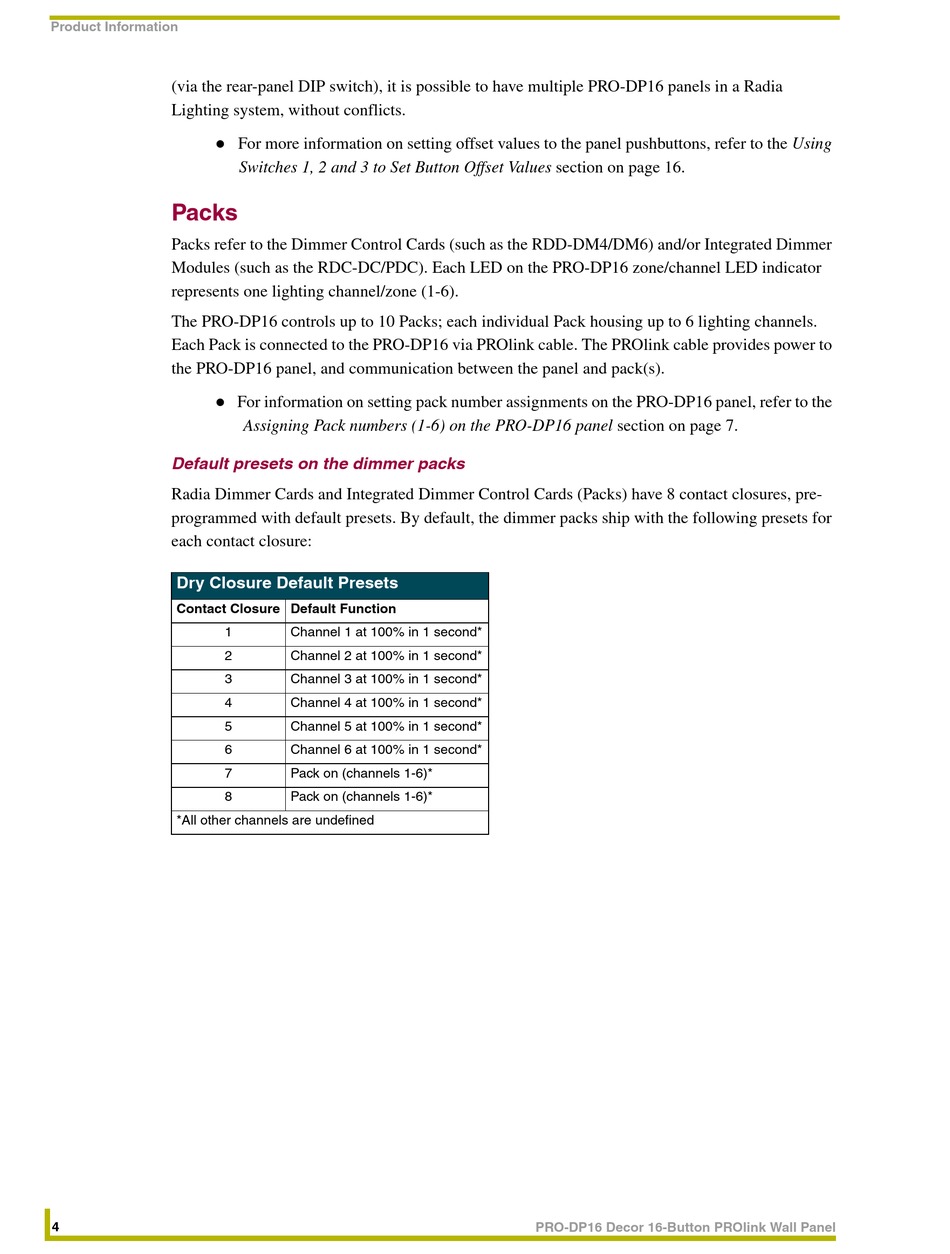

Product Information
(via the rear-panel DIP switch), it is possible to have multiple PRO-DP16 panels in a Radia
Lighting system, without conflicts.
!

Packs

Packs refer to the Dimmer Control Cards (such as the RDD-DM4/DM6) and/or Integrated Dimmer
Modules (such as the RDC-DC/PDC). Each LED on the PRO-DP16 zone/channel LED indicator
represents one lighting channel/zone (1-6).
The PRO-DP16 controls up to 10 Packs; each individual Pack housing up to 6 lighting channels.
Each Pack is connected to the PRO-DP16 via PROlink cable. The PROlink cable provides power to
the PRO-DP16 panel, and communication between the panel and pack(s).
!

Default presets on the dimmer packs

Radia Dimmer Cards and Integrated Dimmer Control Cards (Packs) have 8 contact closures, pre-
programmed with default presets. By default, the dimmer packs ship with the following presets for
each contact closure:
Dry Closure Default Presets
Contact Closure Default Function
1
2
3
4
5
6
7
8
*All other channels are undefined
4
For more information on setting offset values to the panel pushbuttons, refer to the Using
Switches 1, 2 and 3 to Set Button Offset Values section on page 16.
For information on setting pack number assignments on the PRO-DP16 panel, refer to the
Assigning Pack numbers (1-6) on the PRO-DP16 panel section on page 7.
Channel 1 at 100% in 1 second*
Channel 2 at 100% in 1 second*
Channel 3 at 100% in 1 second*
Channel 4 at 100% in 1 second*
Channel 5 at 100% in 1 second*
Channel 6 at 100% in 1 second*
Pack on (channels 1-6)*
Pack on (channels 1-6)*
PRO-DP16 Decor 16-Button PROlink Wall Panel
