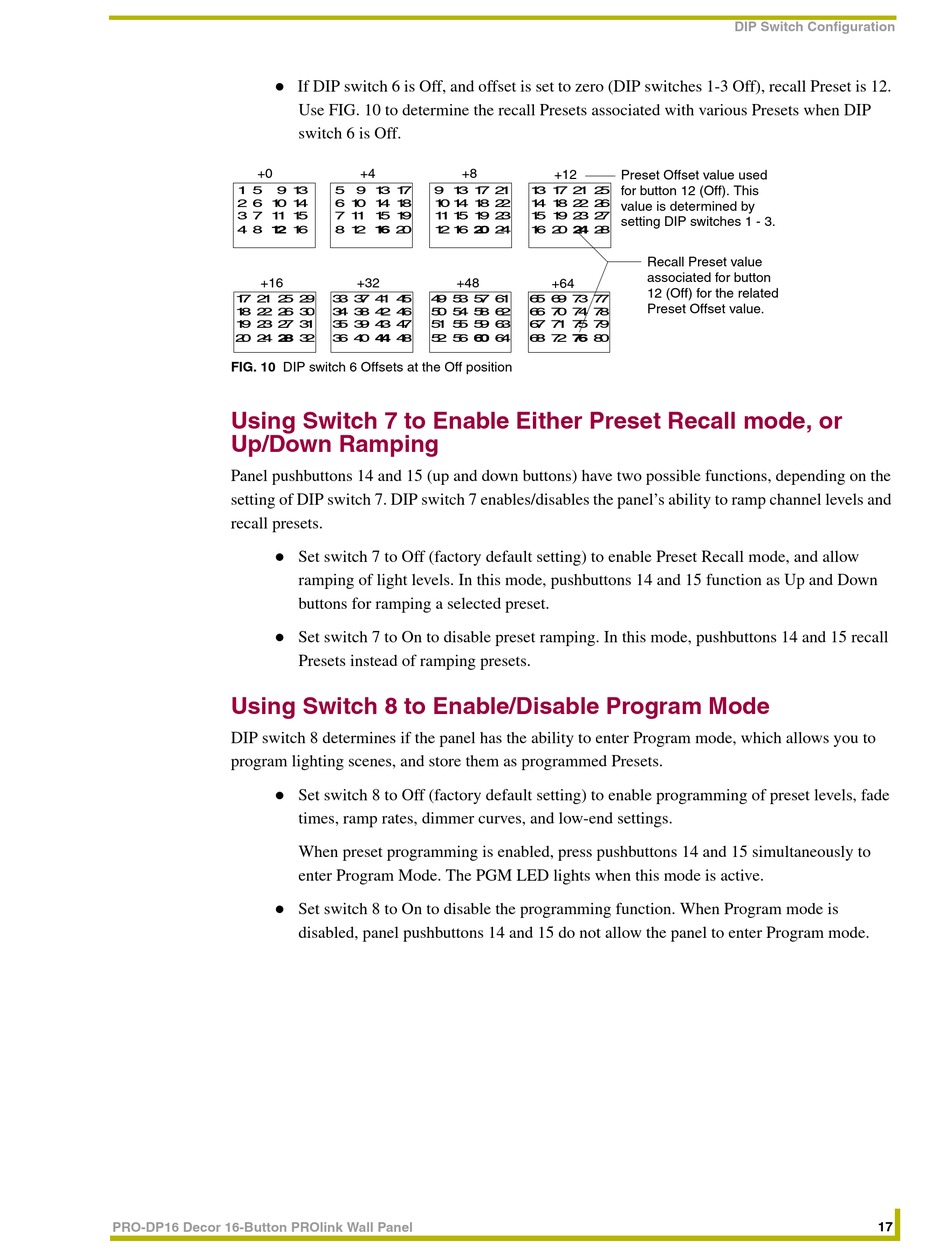

FIG. 10 DIP switch 6 Offsets at the Off position
Using Switch 7 to Enable Either Preset Recall mode, or
Up/Down Ramping
Panel pushbuttons 14 and 15 (up and down buttons) have two possible functions, depending on the
setting of DIP switch 7. DIP switch 7 enables/disables the panel's ability to ramp channel levels and
recall presets.
!
!
Using Switch 8 to Enable/Disable Program Mode
DIP switch 8 determines if the panel has the ability to enter Program mode, which allows you to
program lighting scenes, and store them as programmed Presets.
!
!
PRO-DP16 Decor 16-Button PROlink Wall Panel
If DIP switch 6 is Off, and offset is set to zero (DIP switches 1-3 Off), recall Preset is 12.
Use FIG. 10 to determine the recall Presets associated with various Presets when DIP
switch 6 is Off.
+4
+8
5 9 1 3 1 7
9 1 3 1 7 2 1
6 1 0 1 4 1 8
1 0 1 4 1 8 2 2
7 1 1 1 5 1 9
1 1 1 5 1 9 2 3
8 1 2 1 6 2 0
1 2 1 6 2 0 2 4
+32
+48
3 3 3 7 4 1 4 5
4 9 5 3 5 7 6 1
3 4 3 8 4 2 4 6
5 0 5 4 5 8 6 2
3 5 3 9 4 3 4 7
5 1 5 5 5 9 6 3
3 6 4 0 4 4 4 8
5 2 5 6 6 0 6 4
Set switch 7 to Off (factory default setting) to enable Preset Recall mode, and allow
ramping of light levels. In this mode, pushbuttons 14 and 15 function as Up and Down
buttons for ramping a selected preset.
Set switch 7 to On to disable preset ramping. In this mode, pushbuttons 14 and 15 recall
Presets instead of ramping presets.
Set switch 8 to Off (factory default setting) to enable programming of preset levels, fade
times, ramp rates, dimmer curves, and low-end settings.
When preset programming is enabled, press pushbuttons 14 and 15 simultaneously to
enter Program Mode. The PGM LED lights when this mode is active.
Set switch 8 to On to disable the programming function. When Program mode is
disabled, panel pushbuttons 14 and 15 do not allow the panel to enter Program mode.
+12
Preset Offset value used
1 3 1 7 2 1 2 5
for button 12 (Off). This
1 4 1 8 2 2 2 6
value is determined by
1 5 1 9 2 3 2 7
setting DIP switches 1 - 3.
1 6 2 0 2 4 2 8
Recall Preset value
associated for button
+64
12 (Off) for the related
6 5 6 9 7 3 7 7
Preset Offset value.
6 6 7 0 7 4 7 8
6 7 7 1 7 5 7 9
6 8 7 2 7 6 8 0
DIP Switch Configuration
17
