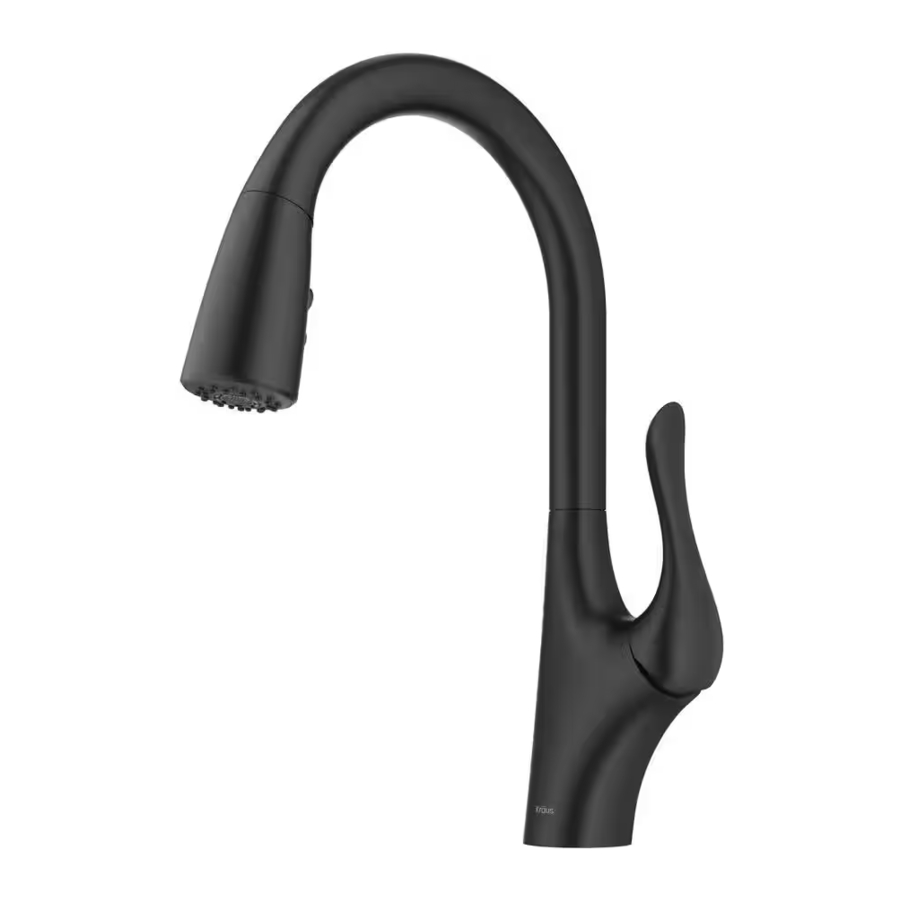

Kraus Merlin KPF-1674 Manual

Also See for Merlin KPF-1674:

Installation manual (15 pages)

Manual (16 pages)

Installation manual (15 pages)

Table of Contents

Contents

1 Prior to Installation
2 Diagram and Parts List
3 Faucet Installation Procedure
4 Step 1A. Faucet installation - with deck plate
5 Step 1B. Faucet installation - without deck plate
6 Step 2. Install faucet and mounting hardware
7 Step 3. Secure mounting hardware
8 Step 4. Attach spray hose and counterweight
9 Step 5. Connect waterlines
10 Step 6. Flush spray hose
11 Step 7. Check for leaks
12 Replacement Parts
13 Trouble-Shooting
14 Care & Maintenance
- 14.1 Maintenance - Cartridge Replacement
15 Documents / Resources
- 15.1 References
- 15.2 Download manual

Kraus Merlin KPF-1674 Manual

Prior to Installation

Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.
Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. Remove existing faucet. Clean sink or countertop to remove any debris, plumber's putty, or silicone.
Flush angle stops to release any debris prior to installation.
Pre-drilled hole size requirement: 1 3/8" (min) - 1 1/2" (max)
Max countertop thickness: 1 3/8"
1 hole installation and 2 or 3 with optional deck plate (not included)

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or customerservice@kraususa.com

Diagram and Parts List

Spray Head
Faucet Body
Hot and Cold Waterlines
1. Hot
2. Cold
Quick Connector
Mounting Hardware
1. Rubber Washer
2. Metal Washer
3. Mounting Nut
4. Mounting Screws
Spray hose
Weight
Hex Wrench
Base O-Ring

Tools you will need


Adjustable Wrench		Silicone Sealant (optional)	Phillips Screwdriver		Safety Goggles

Faucet Installation Procedure

Installer Tip:
Shut off main water supply before installing new faucet.

Step 1A. Faucet installation - with deck plate

For three-hole installation: Deck plate, base plate and silicone sealant (optional) are required.

information Note: Optional deck plate not included.

Step 1B. Faucet installation - without deck plate

For single-hole installation: Deck plate, base plate and silicone sealant are NOT required.

Step 2. Install faucet and mounting hardware

Insert faucet body (2) into hole in countertop or deck plate assembly. Install mounting hardware (5A, B, C & D) from underneath the countertop.

Step 3. Secure mounting hardware

Secure mounting hardware
Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (5C) until snug. Tighten mounting screws (5D) to nut with a Phillips screwdriver until snug.

Step 4. Attach spray hose and counterweight

Attach spray hose and counterweight
Connect spray hose (7) to quick connector (4) attached to supply line. Install weight (8) on lowest vertical point on spray hose (7).

Step 5. Connect waterlines

Connect waterlines (3) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks.

information NOTE: Make sure filter washers are installed.

Step 6. Flush spray hose

Remove spray head (1) from spray hose (7). Hold tip of spray hose (7). Turn faucet on and let the water run for 60 seconds to flush any debris.

Step 7. Check for leaks

Check for leaks at the connections. Retighten if necessary.

Replacement Parts

Replacement Parts List	Finish/Color	Part #
1. Spray Head	SFS,MB,BG*	KP06089
2. Check Valve		KP06107
3. Washer		KP06074
4. Spray Hose	SFS,MB,BG*	KP06097
5. Hose Guide		KP06007
6. Plastic Clip		KP06168
7. Handle Button	SFS,MB,BG*	KP06029
8. Set Screw		KP06054
9. Metal Handle	SFS,MB,BG*	KP06169
10. Cartridge Cover	SFS,MB,BG*	KP06171
11. Locking Nut		KP06170
12. Cartridge		KP06103
13. Base O-Ring		KP06172
14. Protective Sleeve		KP06161
15. Rubber Washer		KP06041
16. Metal Washer		KP06028
17. Mounting Nut		KP06067
18. Mounting Screws		KP06068
19. Quick Connector		KP06173
20. Flow Regulator (1.8gpm)	WH*	KP06174
21. Check Valve		KP06104
22. EZ Weight		KP06015
23. 2.5mm Hex Wrench		KP06050
24. Filter Washer		KP06185
25. Mounting Hardware Kit (includes KP06041,KP06028, KP06067,KP06068)		KP06200

*Denotes faucet component color options:
SFS - Spot Free Stainless Steel
MB - Matte Black
BG - Brushed Gold
WH - White

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

PROBLEM	CAUSE	ACTION
Leakage under faucet handle	Locking nut has come loose or cartridge needs to be reseated.	Remove button located at top of handle. Loosen set screw with hex wrench. Remove handle and unscrew cartridge cover by hand. Tighten locking nut with an adjustable wrench.
Water does not shut off completely	Cartridge may need to be adjusted or replaced.	Remove button located at top of handle. Loosen set screw with hex wrench. Remove handle and unscrew cartridge cover by hand. Unscrew locking nut with an adjustable wrench. Remove ceramic disc cartridge. Check for cracks, and if O-ring is seated correctly. Reseat cartridge.
Leaking between spray head and the hose	Spray head may be loose or washer is not seated correctly in the hose connection.	Tighten spray head by hand until snug. Make sure washer is seated correctly.
Hose does not retract	Weight may be installed incorrectly.	Readjust weight on hose.
Low flow	Aerator may be clogged The screen filter in the hose connectors is dirty.	Unscrew aerator with aerator key. Hold tip of spray head and turn on water to flush debris. Turn off the water supply at water valve and unscrew the hose connectors from water supply lines. Clean the screen in the water lines with hot water, removing any debris or calcium build up.

Care & Maintenance

To keep the product clean & shining, follow the steps below:

Rinse with clean water & dry with a soft cloth
Do not clean with soaps, acid, polish, abrasives or harsh cleaners
Do not use cloth with a coarse surface
Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice.

Maintenance - Cartridge Replacement

Step 1: Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand.
Maintenance - Cartridge Replacement - Step 1

Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
Maintenance - Cartridge Replacement - Step 2

Step 3: Place the new cartridge in the handle seat. Secure the cartridge with the locking nut and assemble the handle.
Maintenance - Cartridge Replacement - Step 3

For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty

If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050 Toll-free 800-775-0703
Customerservice@kraususa.com

If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050 516-801-8955
Proservice@kraususa.com

If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
Partnersupport@kraususa.com

In requesting warranty service, please be ready to provide:

Proof of purchase.
A description of the problem.

Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance

REGISTER TODAY
http://www.kraususa.com/registration

www.kraususa.com I Toll Free: 1.800.775.0703

DO NOT RETURN TO STORE
Please contact our Customer Service Team
1-800-775-0703 / customerservice@kraususa.com

Have the model number available and retain a copy of your receipt with purchase date for reference.

If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.
