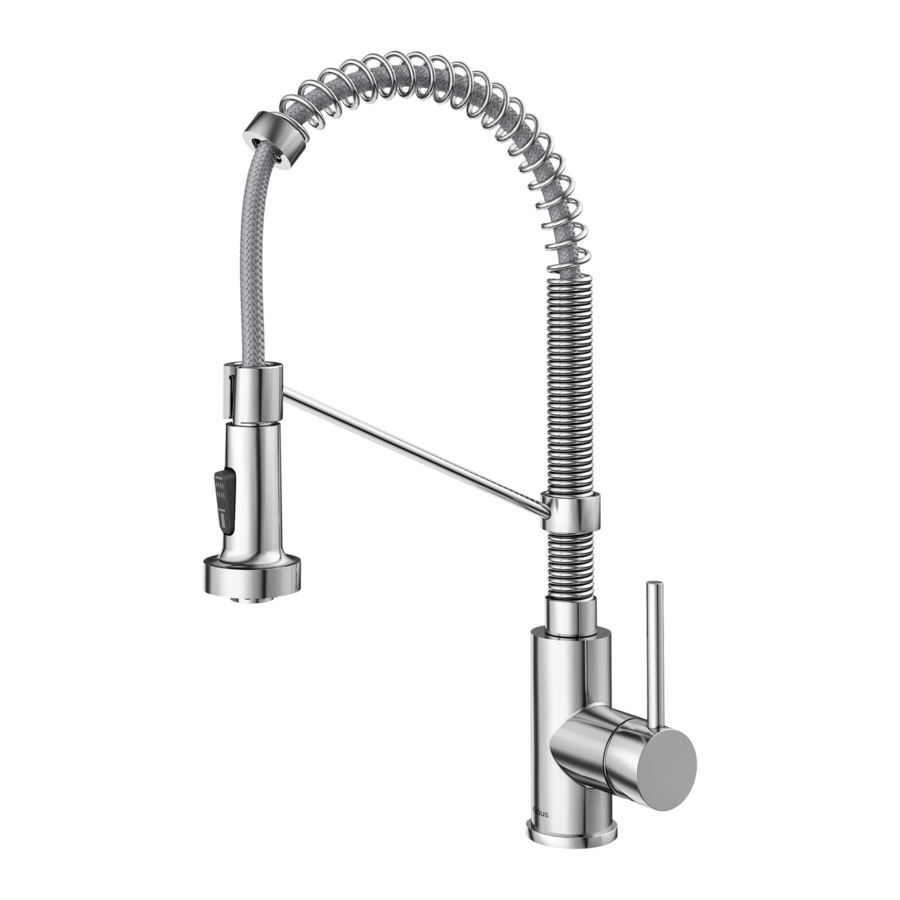

Kraus Bolden KPF-1610 Manual

Single handle commercial kitchen faucet
Hide thumbs Also See for Bolden KPF-1610:

Advertisement

Quick Links

Download this manual
R
INSTALLATION MANUAL
Bolden
Single Handle
TM
Commercial Kitchen Faucet
KPF-1610
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. April 7, 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bolden KPF-1610 and is the answer not in the manual?

Questions and answers

Related Manuals for Kraus Bolden KPF-1610

Summary of Contents for Kraus Bolden KPF-1610

  • Page 1 INSTALLATION MANUAL Bolden Single Handle Commercial Kitchen Faucet KPF-1610 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. April 7, 2022...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...

  • Page 3: Prior To Installation

    Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation.
  • Page 4 Hot & Cold Waterlines E1. Hot E2. Cold Hose G. Weight H. Hex Wrench Quick Connector Assembly For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com...
  • Page 5 Faucet Dimension 10 3/4" (274mm) 3 1/2" (88mm) 25° Ø 1 7/8" 8 3/4" (48mm) (221mm) 90° Ø 2 1/8" (54mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1. Remove mounting hardware Remove mounting hardware (C1, C2 & C3) from faucet body (B). Step 2. Install the faucet and mounting hardware Insert faucet body through the hole in the sink or countertop. Install the rubber washer and metal washer (C1), mounting nut (C2) and mounting screws (C3) onto the threaded mounting shank.
  • Page 7 Step 4. Connect the quick connector Connect the quick connector (I) to the supply hose (D) by twisting clockwise. Push the spray hose (F) firmly upward into quick connector. Pull down moderately to ensure the connection has been made. Step 5. Attach the weight Install the weight (G) on the indicated mark on the spray hose (F).
  • Page 8 Step 6. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench. Do not overtighten. Step 7. Flushing and checking for leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction.

  • Page 9: Replacement Parts

    Replacement Parts Replacement Finish/Color Part # Parts List CH,SS,MB,SFS** 1. Spray Head KP12202 2. Check Valve KP12003 3. Washer KP12205 4. Hose GRCH, GRSS, KP12204 GRSFS, BLSFS BLSS, BLMB* CH,SS,MB,SFS** 5. Spring Assembly KP12189 6. Sprayer Support Assembly CH,SS,SFS,MB, KP12206 SFSCH, SFSMB SSCH, SSMB** 7.

  • Page 10: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Loosen the set screw located at the base of Leakage under faucet handle cartridge needs to be reseated the handle with a hex wrench.
  • Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
  • Page 12 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
  • Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...

This manual is also suitable for:

Bolden kpf-1610s
