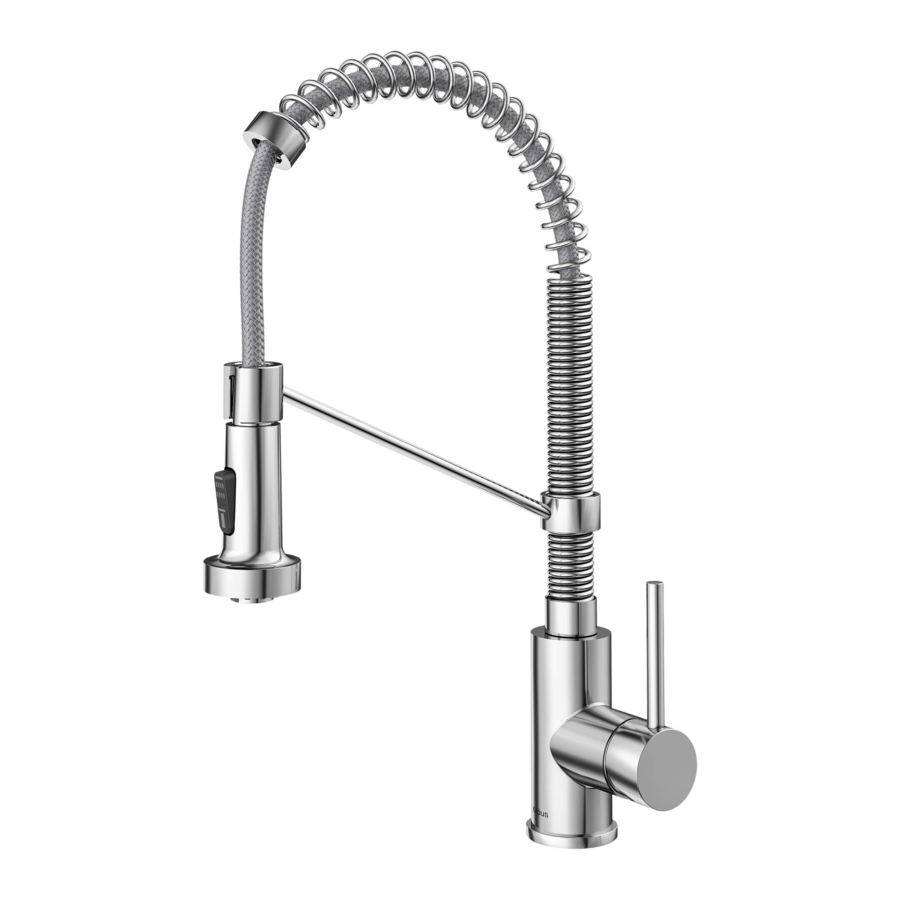

Single handle commercial kitchen faucet
Hide thumbs Also See for Bolden KPF-1610:

Advertisement

Kraus Undermount Stainless Steel Sink Installation Instructions
For the Attention of the Customer and the Installer:
1. For best results, Kraus recommends that the solid surface countertop cut-out should only be prepared by
a professional fabricator, and undermount sinks should only be installed by a professional installer.
2. The enclosed paper template represents Kraus recommended countertop cut-out specification and sink
mounting style.
3. Sink installation and countertop cut-out choices are not limited to Kraus specifications. Installer and
customer must discuss these options, and reach an agreement on alternate countertop cut-out dimensions
and sink installation methods prior to preparation of the countertop. Kraus will not be held responsible
for alternate choices of sink installation and countertop cut-out.
4. In addition to the Kraus paper template, electronic (.dxf) files for countertop cut-outs are available on the
Kraus website www.kraususa.com
5. Sink mounting requirements will vary according to countertop selection. Hardware for mounting the sink
to the countertop is not included, and should be specified by the countertop fabricator for the specific
countertop selection.
6. Sink may have sharp edges, please use caution when handling.
7. Inspect the sink unit prior to installation to confirm acceptance. Do not install a damaged unit.
8. Kraus USA is not responsible for any damage to sink or countertop incurred during installation.
9. Please follow all local plumbing and building codes.
KRAUS CUSTOMER SERVICE
Toll-free: 1.800.775.0703
Phone:
1.646.461.9199
Email:
customerservice@kraususa.com
Hours:
9:00am to 8:00pm (EST) Monday thru Friday
KD1US17B, KD1US25B, KD1US33B and KD1UD33B
INSTALLUS 1 May 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolden KPF-1610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kraus Bolden KPF-1610

  • Page 1 Kraus will not be held responsible for alternate choices of sink installation and countertop cut-out. 4. In addition to the Kraus paper template, electronic (.dxf) files for countertop cut-outs are available on the Kraus website www.kraususa.com 5.
  • Page 2 Installation Instructions KD1US17B, KD1US25B, KD1US33B and KD1UD33B Please note Kraus recommended sink mounting specifications A and B: KRAUS RECOMMENDED SPECIFICATION A: 1/4” REVEAL KRAUS RECOMMENDED SPECIFICATION B: 1/8” OVERHANG OPTIONAL CHOICE AT DISCRETION OF CUSTOMER FLUSH FIT INSTALLATION Flush fit installation is NOT recommended by Kraus.
  • Page 3 Wipe up and remove any excess silicone from the countertop cut-out edge. Kraus Recommended Optional Accessories : Kraus recommends using a high-quality dish grid with your stainless steel sink to protect the bottom of the basin NOTE from wear and tear. To ensure the proper fit, we recommend the following matching grids: DEX™...
  • Page 4 KRAUS CUSTOMER SERVICE Toll-free: 1.800.775.0703 Phone: 1.646.461.9199 Email: customerservice@kraususa.com Hours: 9:00am to 8:00pm (EST) Monday thru Friday www.kraususa.com INSTALLDS 1 May 2017...
  • Page 5 I N S TA L L AT I O N MA N UA L Bolden Single Handle ™ Commercial Kitchen Faucet KPF-1610 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. June 22, 2017...
  • Page 6 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
  • Page 7 Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement • Turn off the cold and hot water at the angle stops and turn on the old faucet to release any built up pressure •...
  • Page 8 Diagram and Parts List...
  • Page 9 Tools you will need Diagram and Parts List 1. Spray Head 2. Faucet Body Adjustable Wrench 3. Mounting Hardware A. Rubber Washer B. Metal Washer C. Mounting Nut D. Mounting Screws 4. Supply Hose Silicone Sealant 5. Hot & Cold Waterlines (optional) A.
  • Page 10 Faucet Installation Procedure Installer Tip: Shut off main water supply before installing new faucet...
  • Page 11 Step2: Install faucet and mounting hardware Step1: Remove mounting hardware Step 1: Remove mounting hardware Remove the mounting screws (3D), mounting nut (3C), metal (3B) and rubber washer (3A) from the mounting pipe Replac Step2: Install faucet and mounting hardware Step 2: Install faucet and mounting hardware Step4: Attach spray hose and counterweight Step5: Connect angle valve...
  • Page 12 Step4: Attach spray hose and counterweight Step3: Secure mounting hardware Step 3: Secure mounting hardware Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (3C) until snug. Tighten mounting screws (3D) with Phillips screwdriver until snug Step4: Attach spray hose and counterweight Step5: Connect angle valve...
  • Page 13 Step 5: Connect waterlines se and counterweight Step5: Connect angle valve Connect waterlines(5A&B) to angle stops. Tighten both ends of waterlines Step 7: Flush spray hose with a wrench until snug. Turn on hot and cold angle stops and check for leaks Step 6: Flush spray hose Step 7: Flush spray hose Remove spray head (1) from...
  • Page 14 Replacement Parts Replacement Parts Spray Head Check Valve Hose Guide Sprayer Holder Spring Set Screw Hexagon Nut Sleeve Set Screw 10. Handle 11. Handle Set Screw 12. Handle Button 13. Cartridge Cover 14. Locking Nut 15. Cartridge Cold Water Water 16.
  • Page 15 Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under faucet Locking nut has come Remove button located...
  • Page 16 Maintenance - Cartridge Replacement Step 1: Remove the handle button from the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge Step 3: Place the new cartridge in the handle seat.
  • Page 17 “Faucet” in its original location. The warranty is non-transferable. Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
  • Page 18 International shipping fees are not included. COMMERCIAL WARRANTY Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
  • Page 19 In requesting warranty service, please be ready to provide: 1. Proof of purchase. 2. A description of the problem. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
  • Page 20 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
