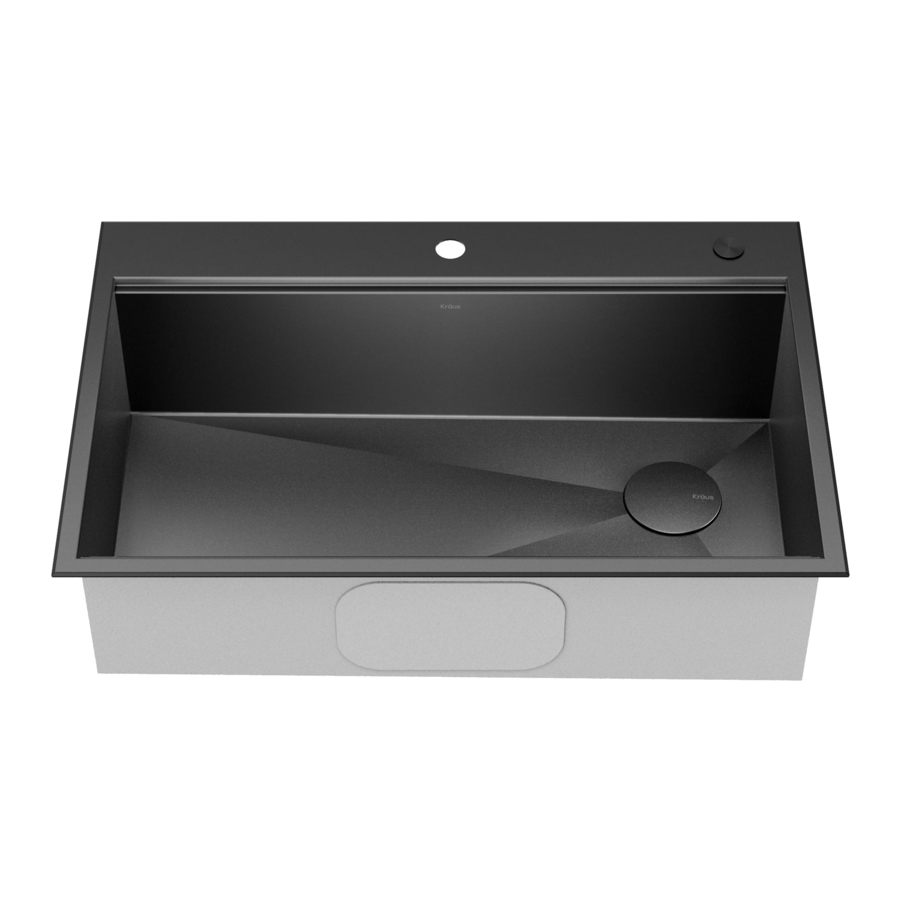

Kraus Kore KWT310-33 - Kitchen Sink Manual

For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or customerservice@kraususa.com
The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.

Tools you will need:

NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen sinks with countertop materials other than wood, marble or granite.

Parts List

• Cut-Out Template
• Mounting Hardware
• Bottom Grid
• Drain
• Drain Cap
• Cutting Board
• Rolling Mat
• Soap Dispenser Hole Cap

Dimensions

Model #: KWT310-33
Sink Dimensions: 33" x 22" x 9"
Min Cabinet Size: 36"
Matching Grid: KBG-UN1-33
Drain Model #: ST-1
Drain Cap #: STC-2
Cutting Board: KCB-WS103BB
Rolling Mat: KRM-11DG

Topmount Installation

1. Position Template

   • Check the cut-out template against the actual sink to ensure a proper sized cut-out.
   • Place the cut-out template in the desired location on the countertop.

NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.

2. Trace Template

   • Trace template on countertop with a pencil.
3. Cut Countertop
   • Cut the opening in the countertop by carefully following the traced line.

NOTE: Please use the appropriate saw that best fits your countertop material.

4. Attach Mounting Hardware

   • Attach mounting hardware to the prongs protruding from the underside of the sink rim.
   • Make sure the hooked side of the mounting clip is facing away from the sink.
5. Apply Silicone or Plumber's Putty

   • Clean and dry the surface around the opening of the sink.
   • Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
6. Secure Sink to Countertop

   • Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly.
   • Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink.
   • Remove excess silicone-based sealant.
   • Allow sealant to set for 30-60 minutes.
7. Install Plumbing Fixtures

   • Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions.
   • Run water into sink and check for leaks.
   • Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.

Undermount Installation

1. Determine reveal type
   • Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flush Reveal)
     KRAUS Recommended Installation Type

2. Position template

   • Check the cut-out template against the actual sink to ensure a proper sized cut-out.
   • Place the cut-out template in the desired location on the countertop.

NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.

3. Trace Template

   • Trace template on countertop with a pencil.
4. Cut Countertop

   • Cut the opening in the countertop by carefully following the traced line.

NOTE: Please use the appropriate saw that best fits your countertop material.

5. Set up mounting brackets

   • Turn countertop over and align sink with countertop. Decide location for mounting brackets.
   • Mounting holes should be 1/2" from edge of sink.
6. Drill hole in countertop

   • Drill 3/8" diameter x 1/2" deep hole in the countertop.
7. Install anchors

   • Insert anchors into drilled holes and lightly tap with a hammer until flush.
8. Secure sink to countertop

   • Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.
9. Attach mounting hardware

   • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip.
   • Allow sealant to set for 30 - 60 minutes.

NOTE: Use acetone or rubbing alcohol to remove any excess sealant.

10. Install Plumbing Fixtures

    • Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions.
    • Run water into sink and check for leaks.
    • Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.

Maintenance

Clean your sink on a regular basis with warm soapy water. Rinse the sink after using cleaning products. Wipe the sink surface with a soft cloth to remove any liquid residue. Do not cut food directly on the surface of the sink. Do not leave sharp objects on the surface of the sink for an extended period of time. Do not use abrasive cleaning products, sanding tools, steel wool or bleaching products.

If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
Customerservice@kraususa.com

If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
Proservice@kraususa.com

If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
Partnersupport@kraususa.com

In requesting warranty service, please be ready to provide:

1. Proof of purchase.
2. A description of the problem.

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration

DO NOT RETURN TO STORE
Please contact our Customer Service Team
1-800-775-0703 / customerservice@kraususa.com
Have the model number available and retain a copy of your receipt with purchase date for reference.
If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.
