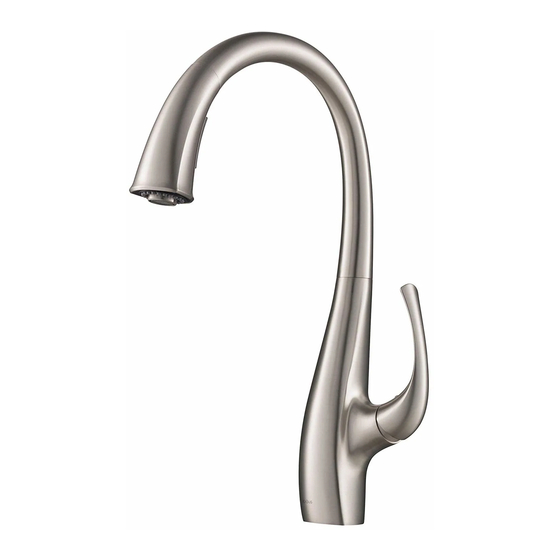

- Page 1 INSTALLATION MANUAL Single Handle Kitchen Faucet KPF-1675 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. August 13, 2018...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement • Turn off the cold and hot water at the angle stops and turn on the old faucet to release any built up pressure •... - Page 4 Diagram and Parts List 1. Spray Head 2. Faucet Body 3. Hot and Cold Copper Lines A. Hot B. Cold 4. Quick Connector 5. Mounting Hardware A. Rubber & Metal Washer B. Mounting Nut C. Mounting Screws 6. Hot & Cold Waterlines 7.
- Page 5 Faucet Dimension 4 5/8” 11 1/4” 117mm 287mm 9 3/8” 238mm 2” 2” 52mm 52mm 1 3/8” ~1 1/2” 35~38mm 2 x 1/2-14NPSM Installer Tip: Shut off main water supply before installing new faucet...
- Page 6 Step 1: Remove mounting hardware Remove the mounting screws (5C), mounting nut (5B), and rubber & metal washer (5A) from the mounting pipe Step 2A: Faucet installation - with deck plate For three-hole installation: Deck plate, base plate (see below), and silicone sealant (optional) are required Note: optional deck plate...
- Page 7 Step 2B: Faucet installation - without deck plate For single-hole installation: Deck plate, base plate, and silicone sealant are NOT required Step 3: Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly . Install mounting hardware (5A, B &...
- Page 8 Step 4: Secure mounting hardware Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (5B) until snug. Tighten mounting screws (5C) to nut with Phillips screwdriver until snug Step 5: Attach spray hose and counterweight Connect spray hose (7) to quick connector (4) attached to supply line.
- Page 9 Step 6: Connect waterlines Connect waterlines (6) to hot and cold copper lines (3). Connect waterlines (6) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks Step 7: Flush spray hose Remove spray head (1) from spray hose (7).
- Page 10 Step 8: Check for leaks Check for leaks at the connections. Retighten if necessary...
-
Page 11: Replacement Parts
Replacement Parts Replacement Finish / Parts List Color Part # 1. Spray Head CH,SFS,MB KP06093 2. Hose guide GR,BL KP06004 3. Spout clip GR,BL KP06017 4. Handle Button CH,SFS,MB KP06030 Hexagon Nut 5. Set Screw KP06055 6. Metal Handle CH,SFS,MB KP06001 7. -
Page 12: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under faucet Locking nut has come Remove button located... - Page 13 Maintenance - Cartridge Replacement Step 1: Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand Step 2: Unscrew the locking nut with an adjustable wrench.
- Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
-
Page 15: Commercial Warranty
(HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included. COMMERCIAL WARRANTY Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose. - Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration...
