INSTALLATION MANUAL

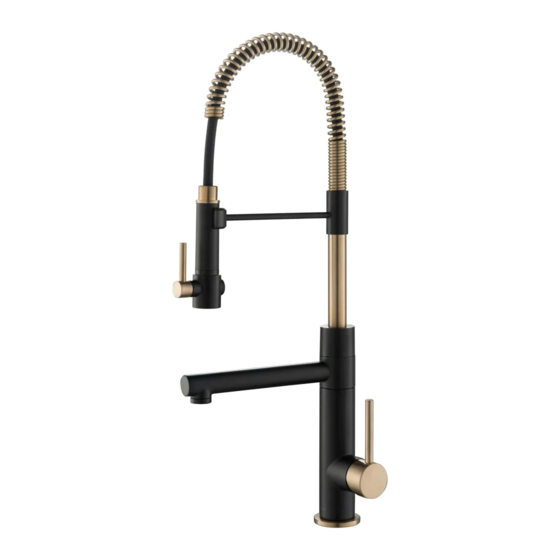

Artec Pro™ 2 Function
Commercial Style
Kitchen Faucet
KPF-1603
www.kraususa.com
I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artec Pro KPF-1603 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kraus Artec Pro KPF-1603

Summary of Contents for Kraus Artec Pro KPF-1603

  • Page 1 INSTALLATION MANUAL Artec Pro™ 2 Function Commercial Style Kitchen Faucet KPF-1603 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...

  • Page 3: Prior To Installation

    Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·...
  • Page 4 Diagram and Parts List Faucet Body B1. Seat B2. Rubber Washer B3. Metal Washer B4. Mounting Nut B5. Screw Hex Wrench...

  • Page 5: Faucet Dimensions

    Faucet Dimensions 4 1/8" 7 1/8" (106.5mm) (182.6mm) 6" (153.2mm) 7 5/8" (198.2mm) 2 3/8" 9 3/4" (60mm) (248.2mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1. Remove washer and lock nut Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove the mounting hardware (B) from the faucet body (A). Step 2. Installing the faucet Insert the faucet through the hole in the sink or countertop.
  • Page 7 Step 3. Making the water supply connections Push the quick connector (2) firmly upward and attach it to the receiving block (1). Pull down moderately to ensure the connection has been made. If it is necessary to remove the quick connector (2), squeeze the tabs on the hose and then pull down to disconnect.
  • Page 8 Step 5. Flushing and checking for leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
  • Page 9 Step 6. Flush faucet To activate the spray mode, simply press the handle (1) located under the spray head.

  • Page 10: Replacement Parts

    Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head KP27060 CH,SFS,SBBG,SFSB,SFACB, MBSB,BG,SFSMB,BGMB,MB** 2. Magnet KP27061 3. Spray Hose BLBG,BLSFS,BLSB,BLSFACB KP27062* Assembly GRCH,GRSFS,BLSFSB,BLMB* 4. Spring CH,SFS,BG,SB,SFACB,SFSB,MB** KP27063 5. Inverter KP27080 KP27064 6. Spray Support CH,SFS,SBBG,SB,BG,MB Assembly SFSMB,BGMB,SFACB,SFSB** CH,SFS,BG 7.

  • Page 11: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Bonnet nut (12) has Remove the index (14.3). Loosen set screw Leakage under the handle. come loose. (14.2) with hex wrench (14).
  • Page 12 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
  • Page 13 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
  • Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
