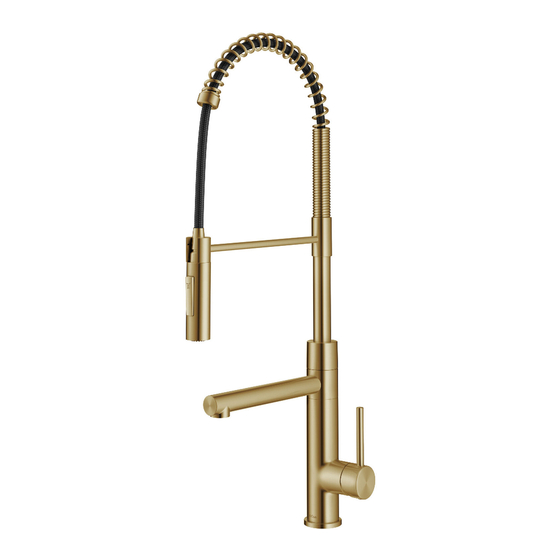

- Page 1 INSTALLATION MANUAL Artec Pro ™ 2 Function Commercial Style Kitchen Faucet KPF-1604 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing L LC I Rev. March 24, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
-
Page 3: Prior To Installation
Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... - Page 4 Diagram and Parts List G. 3-Way Quick Connect Assembly A. Spray Head H. Weight B. Faucet Body I. Weight Clip C. Rubber Washer J. Quick Connector D. Metal Washer K. Hex Wrench E. Mounting Nut L. Aerator Key F. Screws...
-
Page 5: Faucet Dimensions
Faucet Dimensions 12'' [304.8mm] 4 1/8'' 10 1/4'' [106.0mm] [261.8mm] 8 1/2'' [217.0mm] 2 1/8'' [54.0mm] 3/8”-compression Installer Tip: Shut off main water supply before installing new faucet. - Page 6 Step 1. Installing the faucet Shut off the water supply. Place the faucet (B) through the hole in the countertop. Secure the faucet (B) to the countertop using the rubber washer (C), metal washer (D) and mounting nut (E) provided. Tighten screws (F). (2 N.m Max) Step 2.
-
Page 7: Step 4. Installing The Counterweight
Step 3. Securing the faucet assembly Push the quick connector (J) firmly upward and attach it to the receiving block (b). Pull down moderately to ensure the connection has been made. NOTE: Push up until you cannot pull down. You will hear a click. Step 4. - Page 8 Step 5: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angle stops and check for leaks (DO NOT TURN FAUCET ON). NOTE: Please make sure filter washers are installed before connecting to the main valve.
- Page 9 Step 7: Sprayer Function Sprayer Water Function When you press the button on the sprayer head (A) with your fingers, it will switch the waterway to the sprayer head (A). At this time, the water in the spout (2) will stop. PRESS...
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head KP27270 SFS, MB ,SFACB, BB** 2. Inverter KP27245 3. Spring Assembly KP27271 SFS, SFACB, BB, MB , SFSB** 4. Sprayer Support Assembly SFS, MB ,SFSMB, KP27285 SFACBMB,SFACB, BB, SFSB** SFS, SFACB, BB, 5. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Bonnet nut (12) has Remove the index. Loosen screw with hex Leakage under the handle. come loose. wrench (21). - Page 12 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 13 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
