Pre-Installation

Setting the AXlink Device DIP switch (S5)

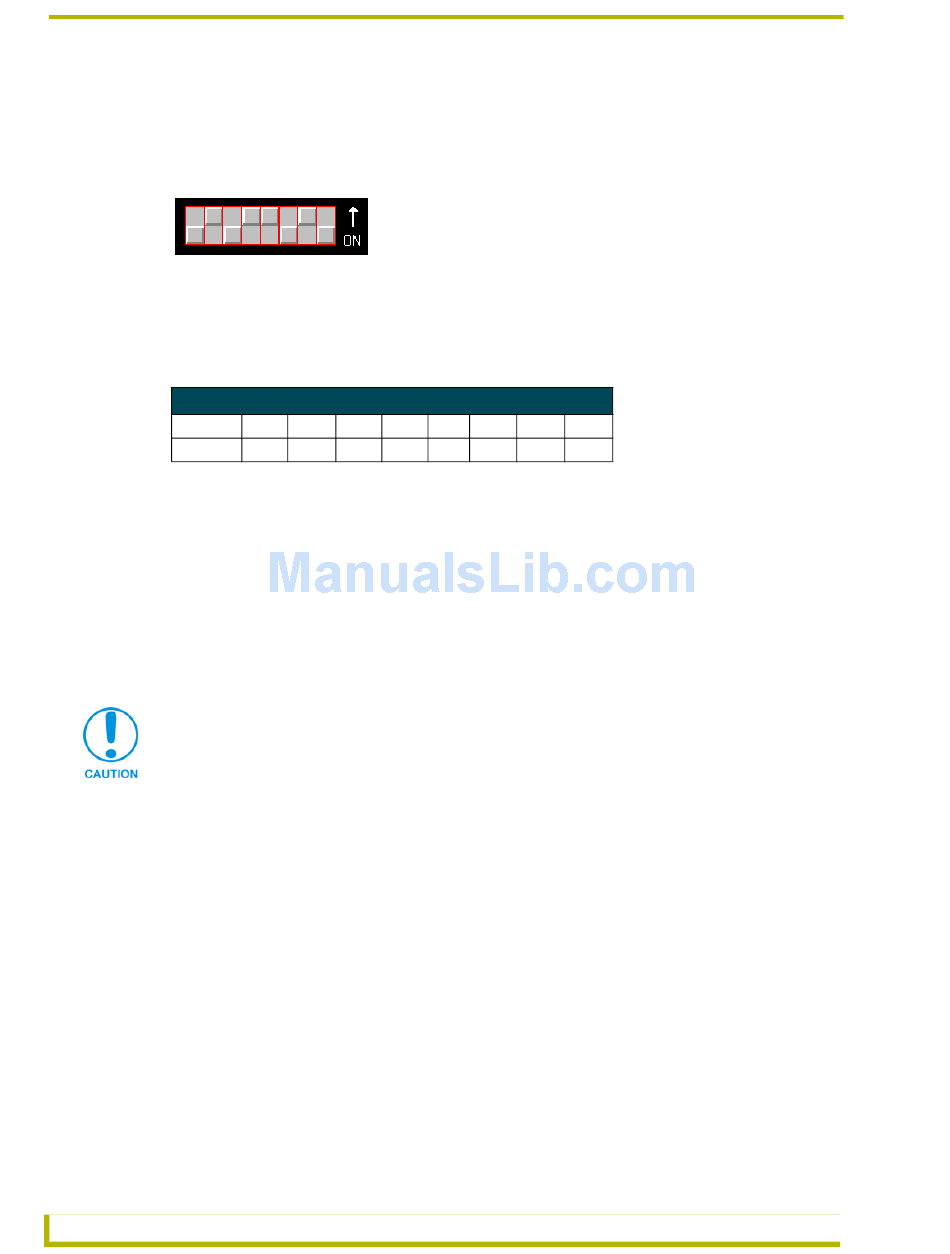

The eight-position Device DIP switch (S5), shown in FIG. 5, must match the number assigned in
the Axcess software program. The Device DIP switch example is set to 90 (2 + 8 + 16 + 64 = 90),
the factory default setting.
1 2 3 4 5 6 7 8
FIG. 5 AXlink device DIP switch (S5) (default value of 90)
The AXlink device number range is 1-255. The Device DIP switch positions determines their
values, based on the following table:
Device DIP Switch (S5) Settings and Values
Position
Value
After setting the AXlink device number, remove and reconnect the AXlink connector on the
PosiTrack unit to save the new number.

Accessing the AXB-PT15 Internal Jumpers

Jumpers J6 through J8, located on the circuit board inside the PT15, set the communication mode to
AXlink (factory default) or RS-232.
You need a 5/64" (1.98 mm) and 1/16" (1.59 mm) Allen wrench to open the unit, and a pair of non-
conducting pliers to set the jumpers using the following steps.
Remove the control panel before you remove the cover, in order to avoid any damage
to the unit.
1. Discharge any accumulated static electricity from your body before removing the enclosure.
Remove the static electricity by touching a grounded metal object.
2. Unplug all connectors from the rear panel of the PosiTrack unit.
3. Remove the four screws, located around the connector panel (FIG. 6), by using the 1/16" Allen
wrench. BHSC is the abbreviation for the Button Head Socket Cap screws.
8
AXlink
DIP switch
(S5)
1 2 3 4
1 2 4 8
5 6 7 8
16 32 64 128
AXB-PT15 PosiTrack Camera Controller
