HOOKE ROAD BXG.6001-1S Quick Start Manual

Front bumper
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Front Bumper
BXG.6001-1S
(1) Contents:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.6001-1S and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.6001-1S

Summary of Contents for HOOKE ROAD BXG.6001-1S

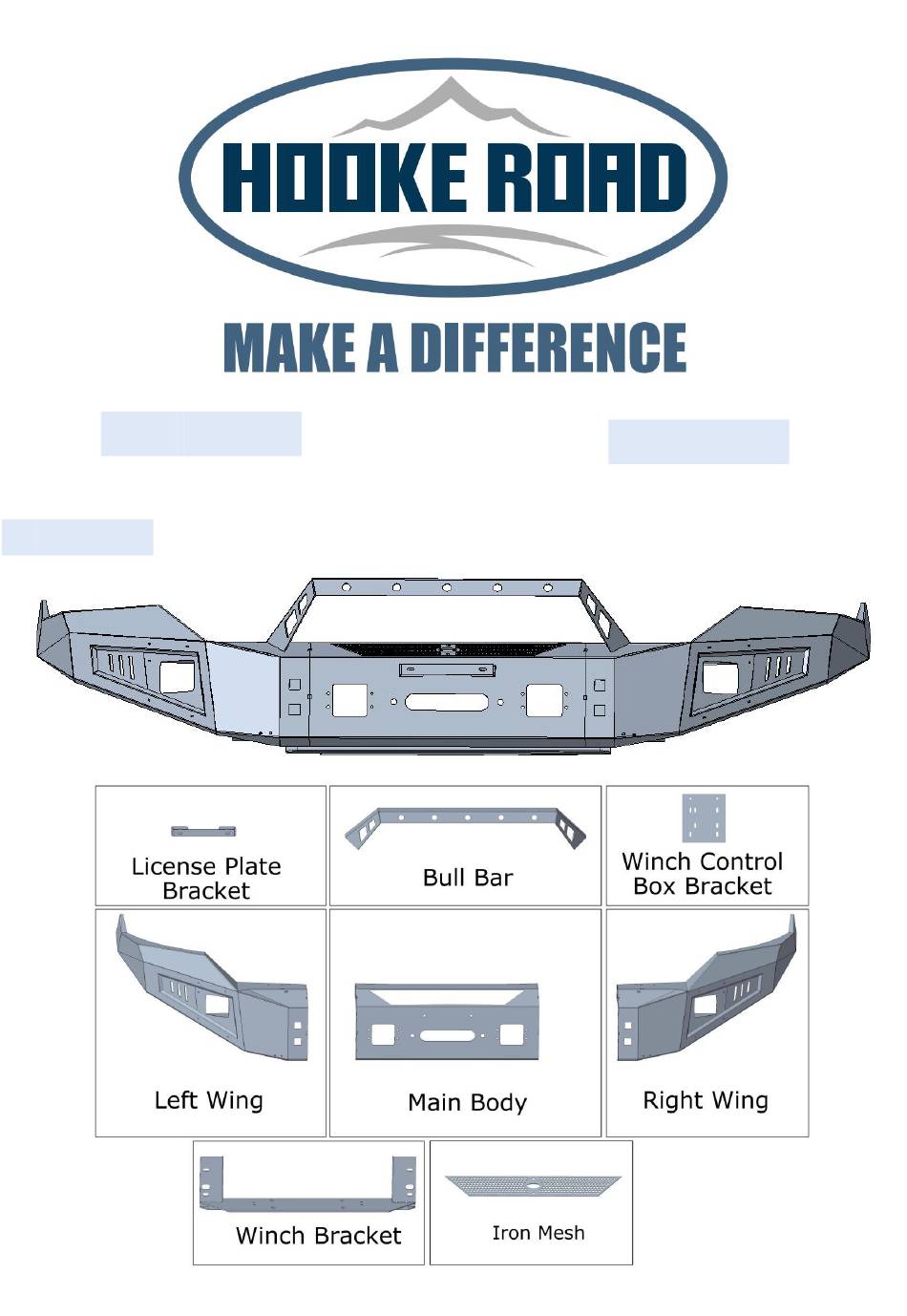

  • Page 1 Front Bumper BXG.6001-1S (1) Contents:...
  • Page 2 Part Name Size(mm) Picture Hex Bolt M12*30 Hex Bolt M10*30 Hex Bolt M8*20 Button Head Socket Cap Bolts Screws M8*20 Split Lock Washer Split Lock Washer Split Lock Washer Flat Washer M12*30*2 Flat Washer M10*25*2 Flat Washer M8*20*2 Hex Nut Flange Hex Lock Nuts Flange Hex Lock Nuts Plastic Hand Knobs...
  • Page 3 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.6001-1S), please scan the QR code.
  • Page 4 (4)Installation instruction: Step 1: Remove your original front bumper. Step 2: Assemble the wings & the main body with the Hex Bolt (M12*30), Split Lock Washer (D12), Flat Washer (D12*30*2), Hex Nut (M12).
  • Page 5 Step 3: Install the bull bar into the bumper with the Hex Bolt (M8*20), Split Lock Washer (D8), Flat Washer (M8*20*2), Flange Hex Lock Nuts (M8). Step 4: Install the iron mesh into the bumper with the Plastic Hand Knobs (M8).
  • Page 6 Step 5: This step is not necessery. If you are use the winch control box, place install the bracket with the Button Head Socket Cap Bolts Screws (M8*20), Split Lock Washer (D8), Flat Washer (M8*20*2), Flange Hex Lock Nuts (M8). Step 6: Install the winch bracket into the vehicle frame .
  • Page 7 Step 7: Install the license plate bracket into the bumper with the Button Head Socket Cap Bolts Screws (M8*20), Split Lock Washer (D8), Flat Washer (M8*20*2), Flange Hex Lock Nuts (M8).
  • Page 8 Step 8: Place the bumper into the car frame and tighten up the Hex Bolt (M12*30), Split Lock Washer (D12), Flat Washer (M12*30*2), Hex Nut (M12). The same operation for the other side.
  • Page 9 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. to find your parts Hooke Road...
