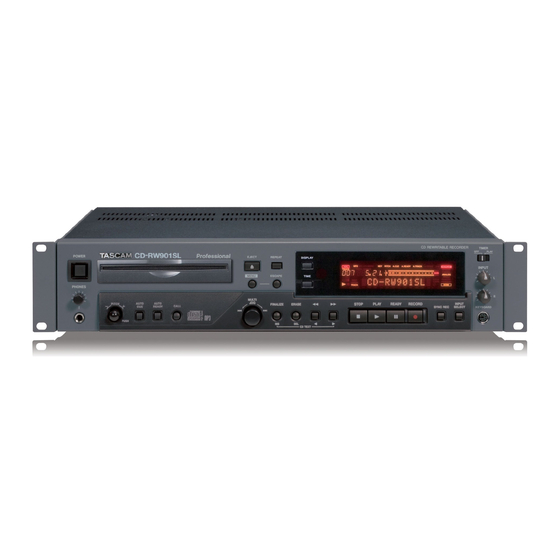

- Page 1 TASCAM CD-RW901 CONTROL I/O connector RS-232C Protocol Specification Ver.1.00 August 2006 TEAC Corporation...
- Page 2 Clear To Send (input "ready to receive") *2 Not connected *1： A voltage that satisfies the RS-232C specification must be applied to Rx Data. *2： RTS/CTS is loopback-connected within the controlled device. If using RTS/CTS control, consider the design of the external controller. TEAC Corporation...
- Page 3 TASCAM CD-RW901 RS-232C Protocol Specification Controlled device (CD-RW901) External controller TEAC Corporation...
- Page 4 The CD-RW901 uses Machine ID=0 to receive commands and transmit returns. Commands and returns using Machine ID=0 also exist, and these operations are described within this document. If a command with an ID other than Machine ID=0 is received, that command is ignored. TEAC Corporation...
- Page 5 TASCAM CD-RW901 RS-232C Protocol Specification If an unsupported command is received, the CD-RW901 will transmit ILLEGAL [F2]. TEAC Corporation...
- Page 6 CURRENT TRACK TIME SENSE CURRENT TRACK TIME RETURN TEXT SENSE TEXT RETURN TOTAL TRACK No./TOTAL TIME SENSE TOTAL TRACK No./TOTAL TIME RETURN PGM TOTAL TRACK No./TOTAL TIME PGM TOTAL TRACK No./TOTAL TIME SENSE RETURN KEYBOARD TYPE SENSE KEYBOARD TYPE RETURN TEAC Corporation...
- Page 7 TASCAM MD-CD1 RS-232C Protocol Specification ERROR SENSE REQUEST CAUTION SENSE REQUEST ILLEGAL STATUS POWER ON STATUS CHANGE STATUS ERROR SENSE ERROR SENSE RETURN CAUTION SENSE CAUTION SENSE RETURN TEAC Corporation...
- Page 8 STATUS. By using CHANGED STATUS as a trigger for sending MECHA STATUS SENSE, the new operating status can be determined. This example shows how to check the record-ready status of the controlled device and then initiate recording.. Command State of controlled device External controller Controlled device Stopped RECORD (Record Ready) -> TEAC Corporation...
- Page 9 Puts the device in record-ready mode. Track Mark Assigns a track during recording. Input Monitor Puts the device in Input Monitor mode while stopped. ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return none TEAC Corporation...
- Page 10 Description Remarks invalid The command will be ignored in the case of this data. ILLEGAL will not be transmitted. Ready On ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return none TEAC Corporation...
- Page 11 ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return none CALL Causes the controlled device to locate to the call point and enter playback-ready mode. Command Machine ID Data none Return none TEAC Corporation...
- Page 12 Preset –54dB Preset –60dB Preset –66dB Preset –72dB Sense Requests that the current preset level be returned. ・ If data other than the above is returned, the CD-RW901 will transmit ILLEGAL [F2]. Return AUTO TRACK LEVEL RETURN [A1] TEAC Corporation...
- Page 13 The range that can be specified is 1 to 10 minutes. A return command is returned only if Sense [FF] is specified. The Auto Track Mode setting is made by the command "AUTO TRACK SELECT [31]." Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks TEAC Corporation...
- Page 14 N1： Tens digit of minutes, N2： Ones digit of minutes Sense Requests that the currently preset time be returned. ・ If data outside the specified range is received, the controlled device will return ILLEGAL[F2]. Return AUTO TRACK TIME RETURN [A6] TEAC Corporation...
- Page 15 ・ If a track number not existing on the disc is specified, the CD-RW901 will transmit ILLEGAL [F2]. ・ The title is between 0 bytes and 80 bytes. The characters up to the last one before CR will be used as the specified title. Return TEXT PRESET ACKNOWLEDGE [A9] TEAC Corporation...
- Page 16 Key Down 0 – 6 Key Change Semitone units Sense Requests that the preset content be returned. ・ If data outside the operating range is received, the CD-RW901 will transmit ILLEGAL [F2]. Return KEY CONTROL DATA RETURN [AD] TEAC Corporation...
- Page 17 The AUTO CUE LEVEL setting is made by the command "AUTO CUE LEVEL PRESET [20]." Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks Auto Cue Off Auto Cue On Sense Requests that the preset content be returned. TEAC Corporation...
- Page 18 TASCAM MD-CD1 RS-232C Protocol Specification ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return AUTO CUE SELECT RETURN [B0] TEAC Corporation...
- Page 19 N1： Tens digit of seconds, N2： Ones digit of seconds seconds Sense Requests that the preset content be returned. ・ If data outside the range specified above is received, the controlled device will transmit ILLEGAL[F2]. Return EOM DISK TIME RETURN [B3] TEAC Corporation...
- Page 20 TASCAM MD-CD1 RS-232C Protocol Specification TEAC Corporation...
- Page 21 Data 1 Data 2 Description Remarks Repeat Off Repeat On Sense Requests that the preset content be returned. ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return REPEAT SELECT RETURN [B7] TEAC Corporation...
- Page 22 2 bytes Data 1 Data 2 Description Remarks Control Control Sense Requests that the preset content be returned. ・ If data other than the above is received, the CD-RW901 will transmit ILLEGAL [F2]. Return KEY CONTROL SELECT RETURN [BD] TEAC Corporation...
- Page 23 Machine ID Data none Return TRACK No. RETURN [D5] DISC STATUS SENSE Requests that the presence or absence of a disc and the type of disc be returned. Command Machine ID Data none Return DISC STATUS RETURN [D6] TEAC Corporation...
- Page 24 Requests that the total number of tracks on the disc and the total time be returned. Command Machine ID Data none Return TOTAL TRACK No./TOTAL TIME RETURN [DD] PGM TOTAL TRACK No./TOTAL TIME SENSE Requests that the total number of tracks for program playback and the total time be returned. TEAC Corporation...
- Page 25 TASCAM MD-CD1 RS-232C Protocol Specification Command Machine ID Data none Return PGM TOTAL TRACK No./TOTAL TIME RETURN [DE] TEAC Corporation...
- Page 26 Requests that caution data be returned from the controlled device. If the controlled device issues a "CAUTION SENSE REQUEST [F1]," you should use this command to check the content of the error. Command Machine ID Data none Return CAUTION SENSE RETURN [F9] TEAC Corporation...
- Page 27 This is the return command in response to the command "AUTO TRACK LEVEL PRESET [21]." It returns the currently specified auto track level. Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks –24dB -30dB -36dB –42dB –48dB –54dB –60dB –66dB –72dB Request/Preset AUTO TRACK LEVEL PRESET [21] TEAC Corporation...
- Page 28 Request/Preset SYNC REC LEVEL PRESET [28] TEXT PRESET ACKNOWLEDGE This is the return command in response to the command "TEXT PRESET [29]." It is returned when the specified title has been successfully written. Command Machine ID Data none Request/Preset TEXT PRESET [29] TEAC Corporation...
- Page 29 This is the return command in response to the command "AUTO CUE SELECT [30]." It returns the Auto Cue on/off status. Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks Auto Cue Off Auto Cue On Request/Preset AUTO CUE SELECT [30] TEAC Corporation...
- Page 30 PITCH CONTROL SELECT RETURN This is the return command for the command "PITCH CONTROL SELECT [35]." It returns the Pitch Control on/off status. Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks Pitch Control Off Pitch Control On TEAC Corporation...
- Page 31 TASCAM MD-CD1 RS-232C Protocol Specification Request/Preset PITCH CONTROL SELECT [35] TEAC Corporation...
- Page 32 This is the return command for the command "INCR PLAYSYNC SELECT [3A]." It returns the Incremental Play on/off status. Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks INCR Play Off INCR Play On Request/Preset INCR PLAY SELECT [3A] TEAC Corporation...
- Page 33 Data 2 Description Remarks Continue Play all tracks on the disc Single Play a single track Program (Data Program Play mode (with no tracks programmed) Empty) Program Program Play mode Random Random Play mode Request/Preset PLAY MODE SENSE [4E] TEAC Corporation...
- Page 34 Data 5 Thousands 1000 Group mode is on, but no group has been created digit Data 6 Hundreds 1001 - 1099 Group number digit ・ The group number is returned with 1000 added. Request/Preset TRACK No. SENSE [55] TEAC Corporation...
- Page 35 Data 8 Thousands digit of the minutes Data 9 Tens digit of the seconds Data 10 Ones digit of the seconds Data 11 0 is returned. Data 12 0 is returned. Request/Preset CURRENT TRACK INFORMATION SENSE [57] TEAC Corporation...
- Page 36 Thousands digit of 0001 – 0999 Track title specified number Data 4 Hundreds digit of specified number Data 5 – Data Title Single-byte alphanumeric characters ・ The title is between 0 and 80 characters in length. Request/Preset TEXT SENSE [59] TEAC Corporation...
- Page 37 If Data 1 – Data 4 is 0000, no program has been created. number of tracks Data 2 Ones digit of total number of tracks Data 3 Thousands digit of total number tracks Data 4 Hundreds digit of total number tracks TEAC Corporation...
- Page 38 This command is returned when an invalid command or data has been sent to the controlled device. If this command is transmitted from the controlled device, the external controller device should re-transmit the correct command or data in compliance with the specifications. Command Machine ID Data none Request/Preset none TEAC Corporation...
- Page 39 Command Machine ID Data 2 bytes Data 1 Data 2 Description Remarks Changed Mechanical The status of the mechanism has changed Status Changed Track/EOM The track number has changed. The EOM Status display/non-display state has changed. Request/Preset none TEAC Corporation...
- Page 40 Track Full 1-09 D-In Unlock 1-0B Can’t REC 1-0F Can’t Edit 1-13 Can’t Select 1-15 Not Fs44.1k 1-16 Text Full 1-19 PGM Full 1-1A PGM Empty 1-1B Ext CLK Err 1-1D Not Audio 1-1E Decode Error Request/Preset none TEAC Corporation...
