Summary of Contents for GVM PRO-BD45R

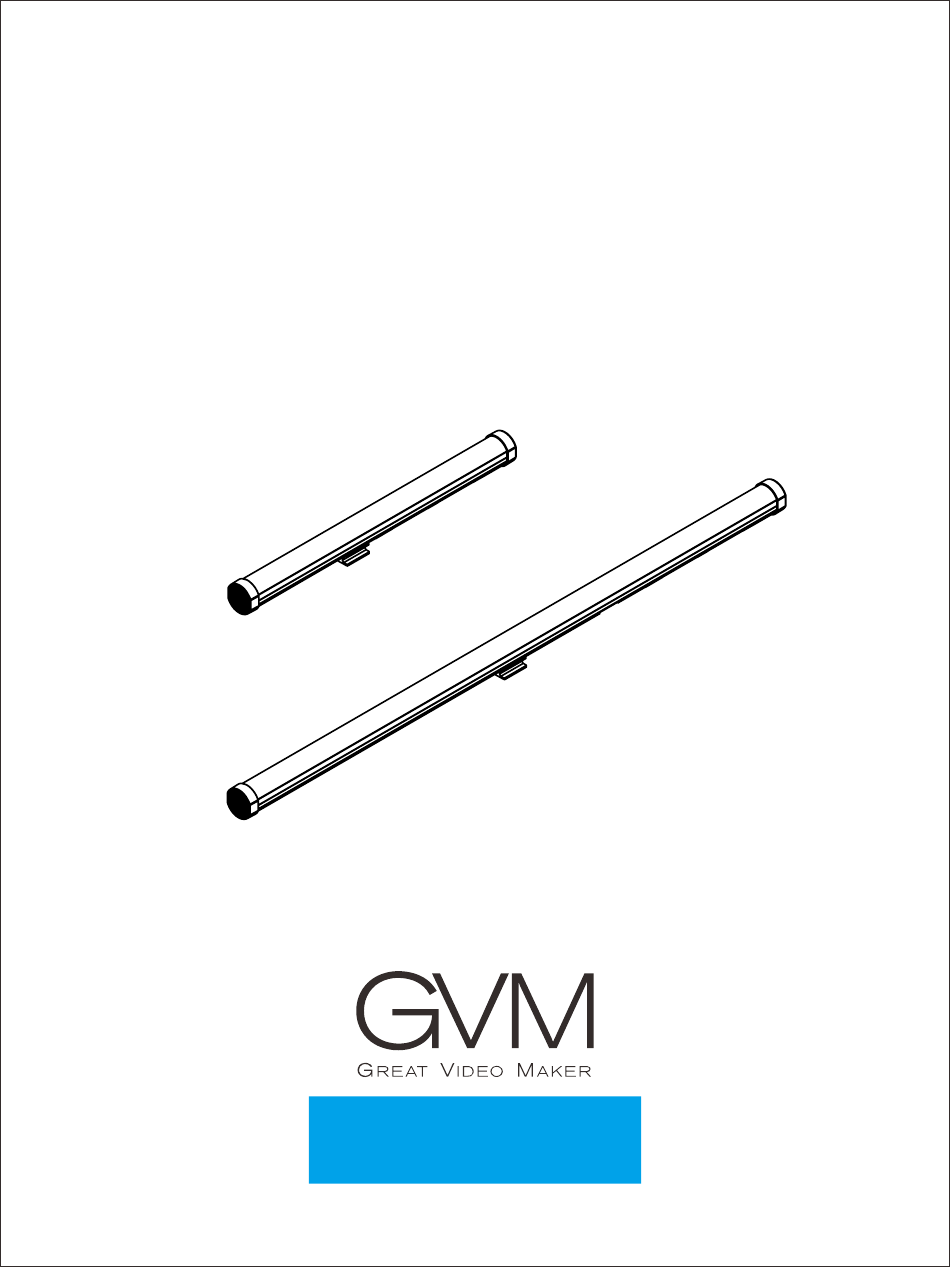

- Page 1 GVM-PRO-BD25R GVM-PRO-BD45R...
-
Page 2: Table Of Contents
C O N T E N T S Product description ---------------------------------------------- Page 1 Disclaimer ----------------------------------------------------------- Page 2 Use and Save ------------------------------------------------------- Page 2 Product parameter GVM-PRO-BD25R ---------------------- Page 3 Product parameter GVM-PRO-BD45R ---------------------- Page 4 Product Structure Analysis -------------------------------------- Page 5 Installation Method ----------------------------------------------- Page 6 Product Control Key Description ----------------------------- Page 7 Function introduction &... -
Page 3: Product Description
PRODUCT DESCRIPTION Welcome to "GVM-PRO-BD25R / GVM-PRO-BD45R", this product is designed for senior photography enthusiasts, the product usage scenarios are suitable for live broadcast/outdoor/performance studio photography, etc., can also be used for YouTube video shooting. The main features of the product are: ①... -
Page 4: Disclaimer
DISCLAIMER Before using this product, please read the text carefully to ensure proper operation of the product. not follow and failure to follow the instructions and warnings in this article may cause injury to you and those around you, or even damage the product or other surrounding items. -
Page 5: Product Parameter Gvm-Pro-Bd25R
PRODUCT PARAMETER GVM-PRO-BD25R ◆ Brand: GVM ◆ Product Name: Photography light ◆ Product type: Photography fill light ◆ Features: 5 light effect modes, pixel FX control ◆ Control method: APP Bluetooth, MESH networking control, Manual control, DMX ◆ Number of lamp beads: 300 pcs ◆... -
Page 6: Product Parameter Gvm-Pro-Bd45R
PRODUCT PARAMETER GVM-PRO-BD45R ◆ Brand: GVM ◆ Product Name: Photography light ◆ Product type: Photography fill light ◆ Features: 5 light effect modes, pixel FX control ◆ Control method: APP Bluetooth, MESH networking control, Manual control, DMX ◆ Number of lamp beads: 660 pcs ◆... -
Page 7: Product Structure Analysis
PRODUCT STRUCTURE ANALYSIS DMX output 1/4 screw Battery lock interface Battery compartment Battery compartment Battery lock Mode key Support 3/8 screw Toggle key interface 1/4 screw Display interface Parameter minus key Parameter plus key Power button & Pause/Play key DMX input DC jack 1/4 screw interface... -
Page 8: Installation Method
INSTALLATION METHOD There are two power supply modes to choose from: ①Connect the power cord and adapter to supply power. ② Use battery power. (Battery must be inserted in both battery slots to supply power) Battery mounting slot Adapter interface... -
Page 9: Product Control Key Description
PRODUCT CONTROL KEY DESCRIPTION Display: Displays the current menu and lighting parameters. Mode switch key: Press this key to switch modes. Parameter switch key: Press this key to switch parameters. Parameter + key: Press this key to increase the parameter value upwards. -
Page 10: Function Introduction & Instruction
FUNCTION INTRODUCTION & INSTRUCTION ① Set up： Press [MODE key] to switch to [ ] menu CONTROL: There are two control modes, Master/DMX. · Master: This is the Master control mode, the screen displays the icon and the light effect is controlled by the APP or the buttons on the light. ·... - Page 11 ② CCT mode: In the [Master] control mode, press the [MODE key] to INT: G/M: switch to the [CCT] mode, which can adjust the INT, CCT: 2700K CCT and green/magenta offset of the light. INT: Press [TAB key] to switch to [INT] → press [+/- key] to adjust intensity of light CCT: Press [TAB key] to switch to [CCT] →...
- Page 12 ⑤ EFFECT mode: In the [Master] control mode, press the [MODE key] to switch to the [Effect] mode, you can select the scene light effects and adjust the parameters of the current light effects, and press the [ ] key to [Start/Stop] the scene light effect.
- Page 13 Dir: Running direction, the running direction of the pixel light effect, left or right. Press [TAB key] to switch to [Dir] → press [+/- key] to switch the running direction. COLORS: The number of colors, this parameter is only PIXEL FX valid in [Rolling] mode, the value is CCT, HSI, COLORS:CCT 2~X(BD25R:X=15;BD45R:X=33).
-
Page 14: App Control
Bluetooth lighting devices that are turned on, and select the one that needs to be connected. The device is connected to the GVM-PRO-BD25R GVM-PRO-BD45R network. (figure 2) Figure 2 * Android system requires location permission to be turned on to connect devices using Mesh technology, We do not collect any of your location information during this process. -
Page 15: Precautions
, y o u r device control. (Figure 4) equipment will be displayed in "My Equipment" list; (Figure 3) GVM-PRO-BD25R GVM-PRO-BD45R GVM-PRO-BD25R GVM-PRO-BD45R... -
Page 16: Simple Faults And Troubleshooting Methods
SIMPLE FAULTS AND TROUBLESHOOTING METHODS Fault Check the product Troubleshoot phenomenon ① W h e t h e r t h e c o n n e c t i o n Make sure the adapter plug is between the lamp and the making good contact power supply is normal. -
Page 17: Packing List
PACKING LIST Quantity Name Notes Light Suit Photography light Power cable Power adapter Battery Battery charger 1/4 eye screw Carrying bag Manual... - Page 18 GVM Official Facebook Download APP website Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA...
