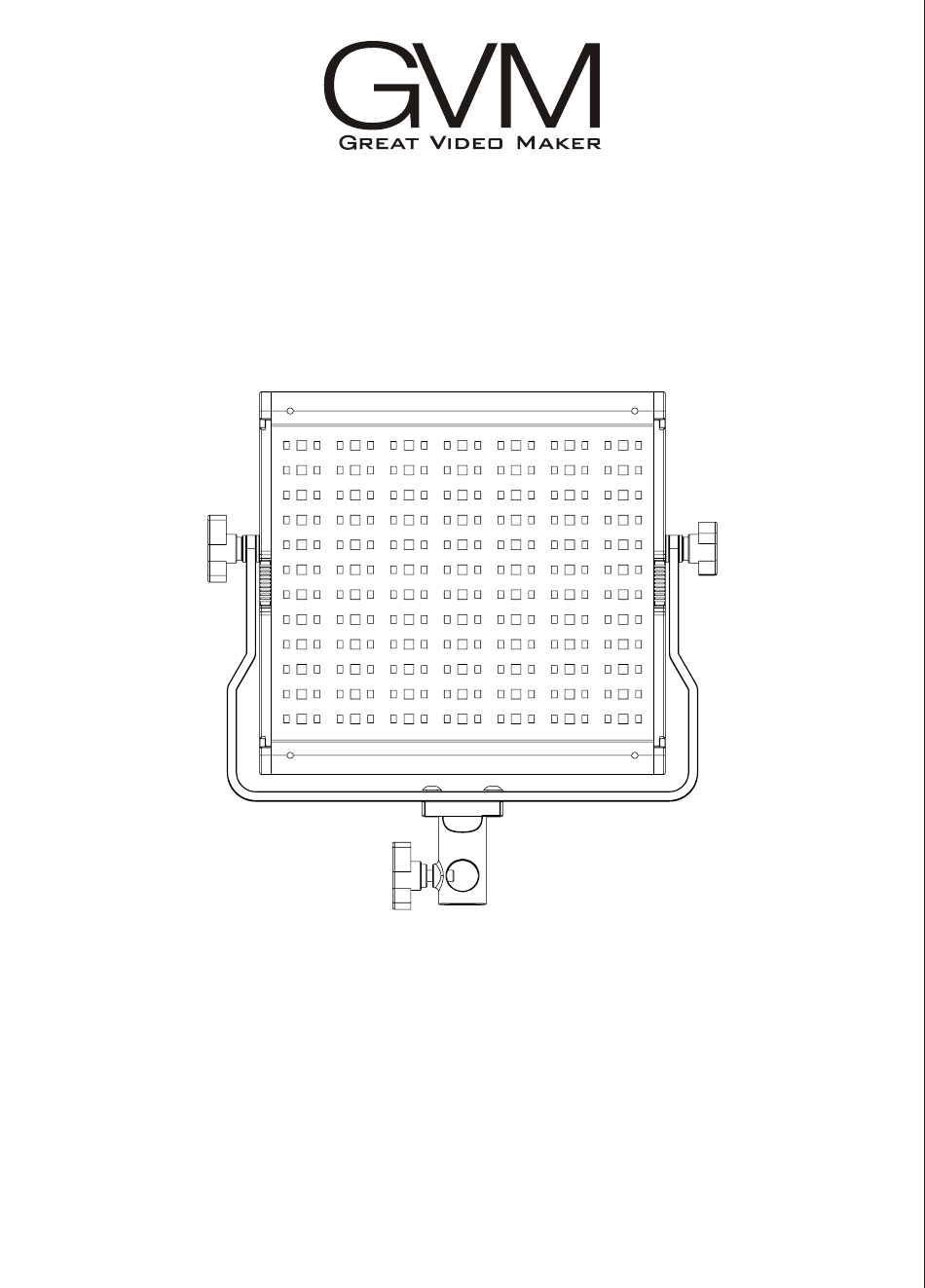

- Page 1 800D-RGB Buku Manual...
-
Page 2: Pengenalan Produk

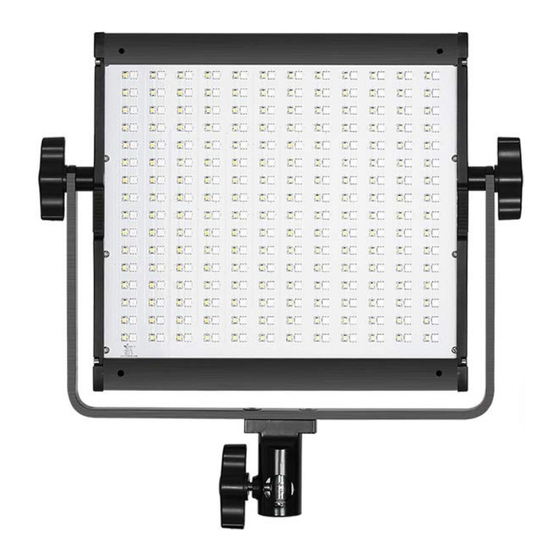

The 800D-RGB is an ideal choice for photography, interviews and live streams that require light colors with optimal precision, accuracy, and flicker-free output. The 800D-RGB is made of 168 pcs high brightness LED beads which with over 97 CRI value and 84 pcs RGB beads. 800D-RGB with a 360°mount offers dual power solutions - can be powered either via AC or for location shoots you can mount the lithium-ion battery comes with the light. - Page 3 Bagian Lithium Battery Slot Power Switch Control Mode Button Brightness Adjustment Knob Color Temperature/ Saturation/ Hue Adjustment Knob Display Window U Bracket Adjusting Knob Power Interface Soft Diffuser LED Beam Light Stand Locking Knob Light Stand Installing Hole U Bracket 1 1 12 Cara Memasang Assemble the Panel on the light...
- Page 4 Brightness: Loosen the U bracket adjusting knob, Rotate the left knob adjust the angle of the panel which you from 1 to 100%. need,then tighten the U bracketadjusting Hue: Press the right knob to knob. switchto HUE mode, and rotate from 0 to 360°.
- Page 5 Voltage Model LED Bead Power Size Angle Temperature Red, Green and 800D-RGB 120° 3200K~5600K DC15V 270*263*40mm Blue from 0-100% Memasang pada Posisi Menyamping Align the light stand installation hole to the light stand, rotate the light stand locking knob. You can choose the light stand installation direction according to your...
- Page 6 (Android 4. 0 or IOS 9. 0 or above) You can download the GVM Easily APP app on GVM online stores (www.gvmled.com) or android or app store. 1. Login into the mobileAPP Open the light.
- Page 7 2. Single light mobile APP control Click to switch WIFI. Click on the menu at the top right. Connect to the GVM-LED WIFI connection, enter the password: Click the Settings button. gvm_admin. (Note: passwords are all lowercase and the bar is...
- Page 8 / brightness / open or close lights, etc.). Click the Settings button. 3. Multi-lights mobile APP control Turn on one 800D-RGB light first (others are off ),Press the MODE button to switch to WIFI mode. : 35 % :3200 K...
- Page 9 Connect to the GVM-LED WIFI Modify the WIFI name ( example: connection, enter the password: GVM-100 ) , enter the new gvm_admin. ( Note: passwords p a s s w o r d e x a m p l e :...
- Page 10 Go back to the mobile APP menu First determine that the single and click Switch Device light can be controlled with the mobile APP Select RGB lights button. Then turn on the other lights, and press the MODE button to switch to the Slave mode ( set in a the same CH-channel ) Press and long hold ( about 5 seconds )
- Page 11 Pemasangan Barn-door dan Soft Filter (Barn-door dan Soft filter dijual terpisah) 1. Barn-door for lighting angle control: Install the barn-door to control the light angle as you need. Mounting the barndoor: align the barndoor mounting holes to the light panel screw holes, use the screws to locking the barndoor.
- Page 12 Add: 338 N Canal St, #20, South San Francisco,CA94080, USA Web: www.gvmled.com Email: support@gvmled.com Scan the code to download the APP...
