Summary of Contents for GVM SD200D

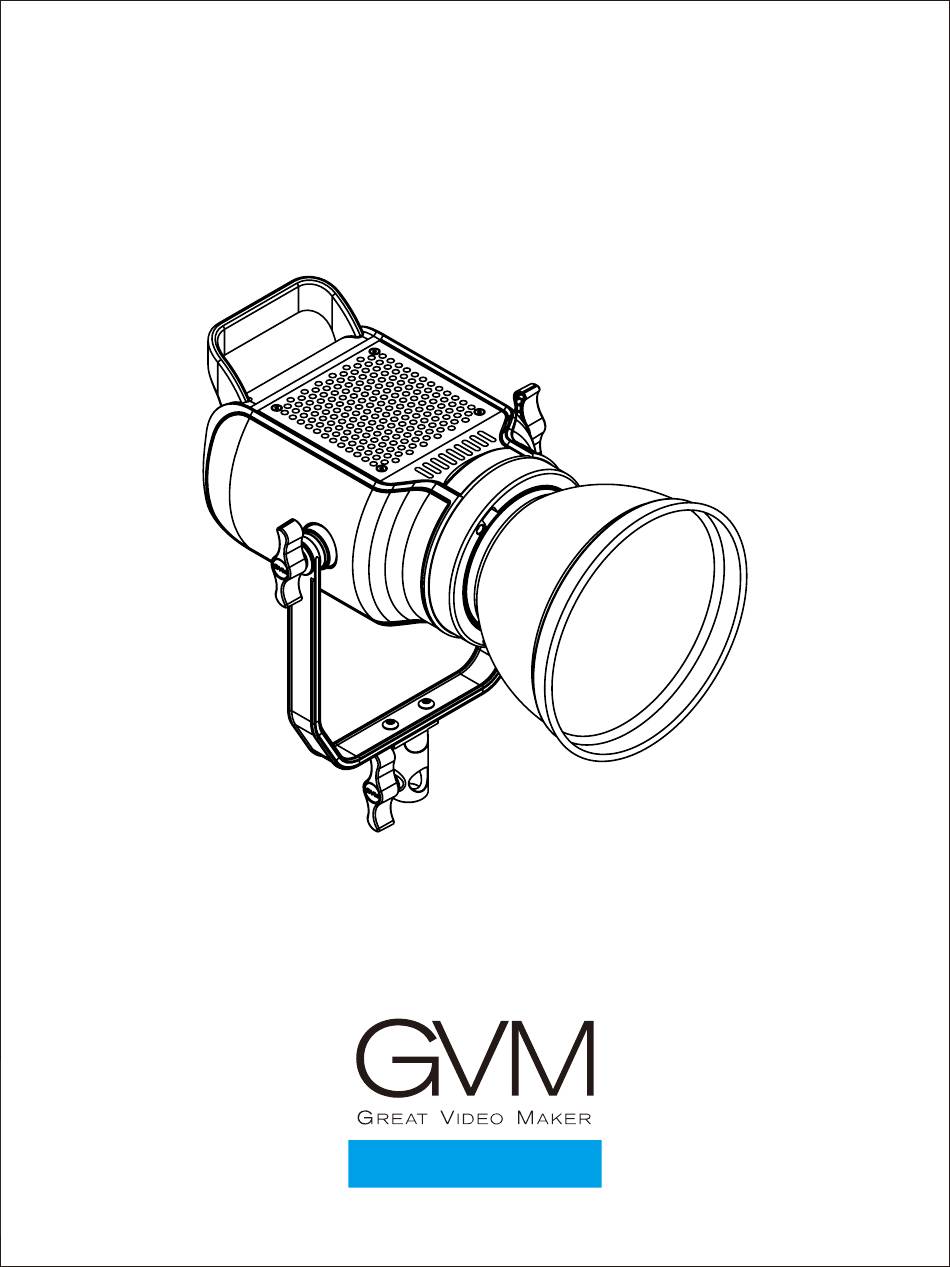

- Page 1 G V M-S D 200D...
-
Page 2: Daftar Isi
DAFTAR ISI Prod uc t introd uc tion ------------------------------------------- Pa ge 1 Disc la ime rs -------------------------------------------------------- Pa ge 2 Use a nd p re se rva tion ------------------------------------------ Pa ge 2 Prod uc t p a ra me te r --------------------------------------------- Pa ge 3 Prod uc t struc ture a na lysis ------------------------------------ Pa ge 4 Insta lla tion me thod ----------------------------------------- Pa ge 5~7 De sc rip tion of p rod uc t c ontrol ke ys ----------------------- Pa ge 8... -
Page 3: Pengenalan Produk
PENGENALAN PRODUK Welcome to ''GVM-SD200D”, this product is specially designed for senior photography enthusiasts. The product is suitable for live streaming / outdoor / studio photography, and also for YouTube video shooting. The main features of the product are: ①... - Page 4 CATATAN PENTING Before using this product, please read the instructions carefully and make sure to use the product correctly. If you don’t obey the instructions and warnings, you maybe cause harm to yourself and the people around or even damage the product and other things around.
-
Page 5: Spesifikasi Produk
SPESIFIKASI PRODUK Brand : GVM Product model : GVM-SD200D Product Name : Photography lights Product Type : Photography Fill Light Lamp beads quantity : COB*1 Color rendering index : ≥97 Color temperature : 3200K~5600K Lumen : 35000lux/0.5m ; 10000lux/1m Add standard lampshade:93000lux/0.5m ; 25000lux/1m... - Page 6 BAGIAN PRODUK Vents Bowens Mount Snap Diffuser Mount COB lamp bead Angle fifixing handle U-shaped frame Fixing handle for lamp holder Light frame interface Light frame interface LCD screen MODE Mode button Compound knob DC interface DC IN Switch on/off...
- Page 7 CARA PEMASANGAN The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction.
- Page 8 Insert the Bowens mount of the standard lampshade into the Bowens mount of the light, and then turn it slightly clockwise. Push Bowens dismantling buckle back while rotate the Standard lampshade counterclockwise to remove the Standard lampshade. Snap...
- Page 9 Loosen the angle fixing handle, adjust the angle of the spotlight that you need, and then turn the angle fixing handle tightly. Connect the power cord to charge. Adapter interface...
- Page 10 CARA PENGGUNAAN TOMBOL PADA PRODUK MO DE B R G OF F C C T DC IN Power input interface Switch ON/OFF LCD display: Can display data such as mode, brightness, channel value, etc. Compound knob: Press the knob button to switch the mode, rotate the knob to adjust the lighting parameters Mode button: switch the control mode.The modes include: rotate, slave, master, APP...
- Page 11 CARA PENGGUNAAN MENU ① LCD screen： Data such as mode, brightness, color temperature, channel value can be displayed. C H : Channel value Rotate Slave Control mode Master Brightness (Only the current parameter mode is displayed) CCT : Color temperature parameter ②...
- Page 12 APP. ⑥ APP control: Set the mode to APP mode, turn on the phone APP GVM LED, in the Bluetooth search interface, find the Bluetooth with the Bluetooth name BT_LED and connect, and wait for the connection. After the connection is successful, the camera light can be controlled through the APP.
- Page 13 PENGGUNAAN APLIKASI Sc a n the Q R c od e o n the b a c k of the m a nua l to d ow nloa d the A PP Turn on the video light and set the mode to APP mode. Open the “GVM_LED” application software on the phone ( The phone needs to turn on Bluetooth and GPS), then enter the Bluetooth search interface Find the Bluetooth named...
-
Page 14: Troubleshooting
TROUBLESHOOTING C heck the product S olution P henomenon The switch Whether the connection Make sure the adapter is well indicator does between the lamp and the contacted with the power plug. not light up power supply is normal. The product is in ①... - Page 15 ISI DALAM PAKET N a m e Q u a n t i t y N o t e s Photography light Power cord Adapter Condenser Diffuser Instruction...
- Page 16 G V M O ffic ia l F a c e bo o k D o wn lo a d A P P we bs ite We b : w w w .g v mle d .c om B&H Ema il: b h@g v mle d .c om G VM Ema il: sup p ort@g v mle d .c om A ma zon Ema il: a ma zonsup p ort@g v mle d .c om Wa re house A d d : 4301 N D e la w a re a v e , unit D.
