Connection
CON0014

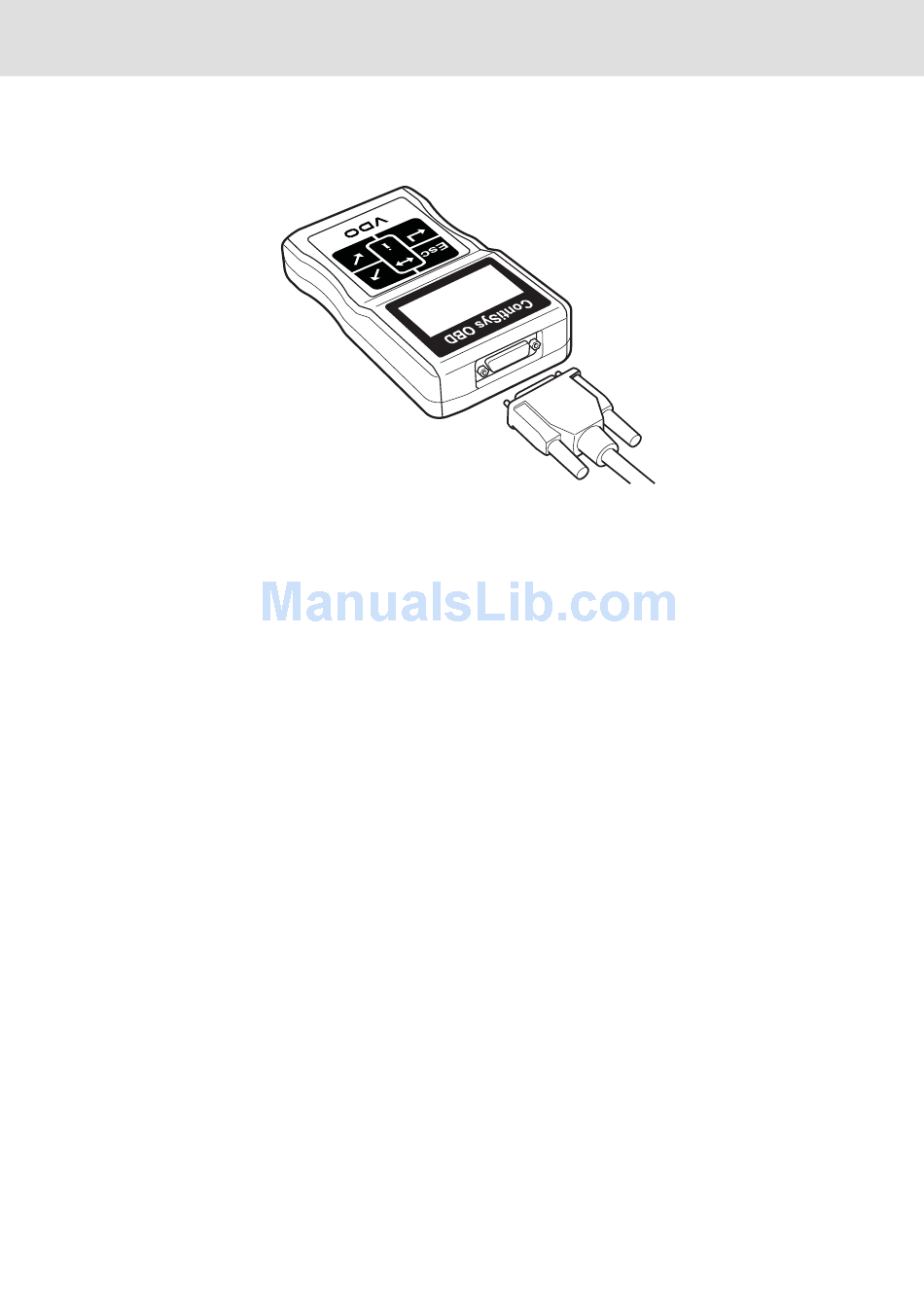

The service tool has a 15-way connector through which it can communicate to the
vehicle via various interface cables. Connection to the specific system is via either the
vehicle's EOBD (J1962) diagnostic socket or by a system specific connector. Refer to
the 'Vehicle Application List' to determine the correct cable.
When connecting the cable to the service tool, always secure the cable with the fixing
screws to prevent accidental disconnection of the service tool during use.
