ContiSys OBD
Vehicle application list
Voertuigapplicatielijst
Liste des applications de véhicules
L'elenco delle applicazioni del veicolo
Lista da aplicação do veículo
Lista de aplicaciones para vehículos
08/2009 (2.0)

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONTISYS OBD - APPLICATION LIST V2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for VDO CONTISYS OBD - APPLICATION LIST V2.0

Summary of Contents for VDO CONTISYS OBD - APPLICATION LIST V2.0

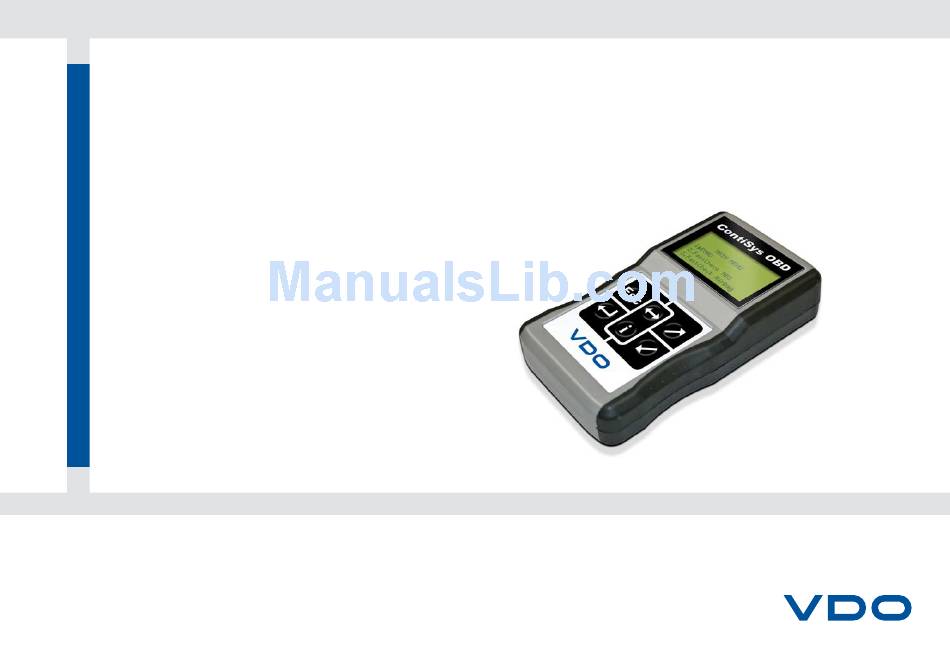

  • Page 1 ContiSys OBD Vehicle application list Voertuigapplicatielijst Liste des applications de véhicules L’elenco delle applicazioni del veicolo Lista da aplicação do veículo Lista de aplicaciones para vehículos 08/2009 (2.0)
  • Page 2 EOBD/OBDII Application ContiSys OBD Make From Harness Required Petrol vehicles 2000/2001 A2C59512072 Diesel vehicles 2004 A2C59512072 Due to model changes, dates may not be precise. Try other leads or systems before contacting product support. EOBD 1 Petrol vehicles MY2000 on (diesel MY2004 on) should be OBD II compliant and can be diagnosed via EOBD for emissions data.

  • Page 3: Fastcheck Abs

    FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Alfa Romeo 94 - 00 Bosch 5.3 ABS A2C59512069 or A2C59512073 B1 Alfa Romeo 94 - 00 Bosch 5.3 ABS A2C59512069 or A2C59512073 B1 Alfa Romeo 00 - 07 Bosch 5.7 ABS, Bosch 5.7 VDC, A2C59512073 B1 Bosch 5.7 ABS/ASR/TC, Bosch 8 Alfa Romeo...
  • Page 4 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Audi 98 - 07 KWP1281/KW2000 A2C59512073 A1 Audi 07 - A2C59512072 Audi 94 - 97 KWP1281/KW2000 A2C59512060 1 Series (E81/E87) - 4 Cylinder 04 - 03/07 Teves MK 60E A2C59512664 1 Series (E81/E87) - 6 Cylinder 04 - 03/07 Teves MK 60E5...
  • Page 5 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required 8 Series (E31) 90 - 99 ABS 5, ABS/ASC 5, BOSCH ABS A2C59512067 X3 (E83) 03 - DSC 8 X-Drive A2C59512073 A6 / A2C59512664 X5 (E53) 00 - 09/03 ABS/DSC 5.7 A2C59512073 A6 / A2C59512664 X5 (E53) 09/03 -...
  • Page 6 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Fiat Ducato RST 01 - Bosch 5.3 ABS, Bosch 5.3 ASR A2C59512073 B1 Fiat Idea 01 - Bosch 5.3 ABS, Bosch 5.3 ASR A2C59512073 B1 Fiat Marea/Weekend 96 - 99 Lucas ABS A2C59512069 or A2C59512073 B1 Fiat...
  • Page 7 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Ford Galaxy 00 - 06 A2C59512072 or A2C59512664 Ford Galaxy 06 - A2C59512072 or A2C59512664 Ford Granada/Scorpio 94 - 98 A2C59512072 or A2C59512664 Ford 05 - 06 A2C59512072 or A2C59512664 Ford 96 - 08 A2C59512072 or A2C59512664...
  • Page 8 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Signum 01 - EBC430 ABS/TC/ESP A2C59512072 or A2C59512664 Speedster / VX220 01 - 06 KH430 A2C59512073 J2 Tigra-A 95 - 00 ABS 4/4F, Bosch 5.3 A2C59512073 J2 Tigra-B 05 - 08 Bosch 8 A2C59512073 A2 Vectra-B...
  • Page 9 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Mercedes C Class (W202) 93 - 01 ABS / ASR / ETS/ ESP / BAS* A2C59512073 G2 and/or A2C59512066 Mercedes C Class (W203) 00 - 09/03 ESP Mk25 A2C59512073 G2 Mercedes C Class (W203) 09/03 - 07...
  • Page 10 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required *For BAS (if present) try switch positions G2, D2, F2; *** SBC Sensotronic Brake Control - electro-hydraulic brake system MINI MINI (R50 / R52 / R53) 00 - 07 Teves MK 60, Teves DSC III MK A2C59512073 A6 MINI MINI (R55 / R56 / R57)
  • Page 11 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Seat Leon 00 - 04 KWP1281 / KW2000 A2C59512073 A1 Seat Leon 04 - A2C59512072 Seat Toledo 92 - 05 KWP1281 / KW2000 A2C59512073 A1 Seat Toledo III 04 - A2C59512072 Skoda Fabia...
  • Page 12 FASTCHECK ABS ContiSys OBD Make Model From/To System Harness Required Golf Plus 05 - A2C59512072 Jetta 92 - 04 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Jetta 05 - A2C59512072 Lupo 98 - 05 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Passat 94 - 05 KWP1281 / KW2000...
  • Page 13 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Alfa Romeo 94 - 98 TRW2 A2C59512069 or A2C59512073 D1 Alfa Romeo 94 - 00 TRW MY97 A2C59512069 or A2C59512073 D1 Alfa Romeo 94 - 98 TRW2 A2C59512069 or A2C59512073 D1 Alfa Romeo 95 - 00 TRW MY97...
  • Page 14 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required 5 series (E34) 93 - 95 1 or 2 airbags (ZAE, BAE) A2C59512067 5 Series (E39) 96 - 04 ZAE BAE, ZAE2, MRS 1, MRS 2, MRS 3, MRS 4 A2C59512067 or A2C59512073 A6 / A2C59512664 5 Series (E60/E61) 04 - 03/07...
  • Page 15 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Fiat Doblo 00 - 05 Autoliv MY99 A2C59512073 D1 Fiat Ducato 94 - 02 Breed Airbag w/pretensioners, Breed MY97, TRW MY99 A2C59512069 or A2C59512073 D1 Fiat Ducato RST 01 - Siemens MY99 A2C59512073 D1 Fiat...
  • Page 16 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Ford Fusion 02 - RCM - Restraint Control Module A2C59512072 or A2C59512664 Ford 96 - 08 ECS - Electronic Crash Sensor A2C59512072 or A2C59512664 Ford Street Ka 03 - 08 ECS - Electronic Crash Sensor A2C59512072 or A2C59512664 Ford...
  • Page 17 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Lancia Lybra 99 - 06 Allied MY97, Siemens MY99 A2C59512069 or A2C59512073 D1 Lancia Musa 04 - 06 TRW MY03 A2C59512070 Lancia Phedra 02 - 06 Temic SRS A2C59512061 or A2C59512073 K2 or K9 Lancia Thesis 02 - 06...
  • Page 18 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Mercedes R Class (251) 05 - Arcade 164 A2C59512072 Mercedes R Class (251) 05 - RGSL 164 A2C59512072 Mercedes R Class (251) 05 - RGSR 164 A2C59512072 Mercedes R Class (251) 05 - A2C59512072 Mercedes...
  • Page 19 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Renault Clio II 98 - 06 A2C59512073 A1 Renault Clio III 06 - A2C59512072 Renault Laguna 93 - 00 A2C59512073 A1 Renault Laguna 93 - 00 AC6 Phase 2 A2C59512073 A1 Renault Laguna 93 - 00...
  • Page 20 FASTCHECK AIRBAG ContiSys OBD Make Model From/To System Harness Required Caddy 05 - A2C59512072 Corrado 91 - 95 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 05 - A2C59512072 Eurovan 99 - 03 KWP1281 / KW2000 A2C59512072 Golf/GTI 91 - 03 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Golf/GTI...
  • Page 21 FASTCHECK CLIMATE CONTROL ContiSys OBD Make Model From/To System Harness Required Alfa Romeo 00 - 07 Delphi (Single Zone) Delphi (Dual Zone) A2C59512070 Alfa Romeo 97 - 02 Harrison Climate Control A2C59512073 G1 Alfa Romeo 05 - Delphi (Single Zone) Delphi (Dual Zone) A2C59512072 or A2C59512070 Alfa Romeo 04 -...
  • Page 22 FASTCHECK CLIMATE CONTROL ContiSys OBD Make Model From/To System Harness Required Z8 (E52) 00 - 03 IHKS E52 A2C59512067 or A2C59512073 A6 / A2C59512664 Citroen 00 - Behr A2C59512073 I2 Citroen 99 - Valeo A2C59512073 I2 Citroen Xantia 99 - Valeo A2C59512073 I2 Citroen...
  • Page 23 FASTCHECK CLIMATE CONTROL ContiSys OBD Make Model From/To System Harness Required Lancia 96 - 02 Behr Climate Control A2C59512073 I2 Land Rover Freelander II (L359) 07 - Hevac A2C59512664 Land Rover Discovery III (L319) 05 - Hevac A2C59512664 Land Rover Range Rover (P38a) 97 - 02 Hevac...
  • Page 24 FASTCHECK CLIMATE CONTROL ContiSys OBD Make Model From/To System Harness Required MINI MINI (R55 / R56 / R57) 06 - MINI IHS, MINI IHKS, MINI IHKA (CAN) A2C59512072 or A2C59512664 Peugeot 00 - Behr GKR A2C59512073 E2 Peugeot 00 - Behr A2C59512073 I2 Peugeot...
  • Page 25 FASTCHECK CLIMATE CONTROL ContiSys OBD Make Model From/To System Harness Required Golf/GTI 92 - 03 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Golf/GTI 03 - A2C59512072 Golf Plus 05 - A2C59512072 Jetta 92 - 04 KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Jetta 05 - A2C59512072...
  • Page 26 FASTCHECK EPB - Electronic Parking Brake ContiSys OBD Make Model From/To System Harness Required Audi 05 - A2C59512072 Audi 07 - A2C59512072 Audi 04 - A2C59512072 Audi 04 - A2C59512072 Audi 04 - A2C59512072 Ford C-Max 03 - A2C59512072 Ford Galaxy 06 - A2C59512072...
  • Page 27 FASTCHECK SAS - Steering Angle Sensor ContiSys OBD Make Model Body/Chassis From/To System Harness Required Audi 01 - ESP 20 A2C59512072 Audi 01 - ESP Front/Allrad MK60 A2C59512072 Audi ESP 20 A2C59512072 97 - 02 Audi ESP Front MK60 A2C59512072 02 - 03 Audi 04 -...
  • Page 28 FASTCHECK SAS - Steering Angle Sensor ContiSys OBD Make Model Body/Chassis From/To System Harness Required 04 - 03/07 Teves MK 60E5 A2C59512664 6 Series E63/E64 05 - 09/05 Bosch ABS DSC8 A2C59512664 6 Series E63/E64 09/05 - 03/07 Bosch ABS DSCS8 Plus A2C59512664 E63/E64 05 - 03/07...
  • Page 29 FASTCHECK SAS - Steering Angle Sensor ContiSys OBD Make Model Body/Chassis From/To System Harness Required Beetle ESP 20 A2C59512072 1C, 9C, 1Y (A Platform) 98 - 01 Beetle ESP Front / Allrad MK60 A2C59512072 1C, 9C, 1Y (A Platform) 01 - Bora 05 - ESP Front / Allrad MK60...

  • Page 30: Fastcheck Service

    FASTCHECK SERVICE ContiSys OBD Make Model From/To System Harness Required Alfa Romeo 147 (Mannesman VDO instrument panel) 00 - 07 A2C59512070 Alfa Romeo 159 (Siemens 2 Instrument panel) 05 - A2C59512072 or A2C59512070 Alfa Romeo GT (Mannesman VDO instrument panel)
  • Page 31 FASTCHECK SERVICE ContiSys OBD Make Model From/To System Harness Required X3 (E83) 03 - Digital A2C59512073 A2/F2 X5 (E53) 00 - Digital or Analogue A2C59512067 or A2C59512073 A2/F2 Z3 (E36) 96 - 02 Digital or Analogue A2C59512067 or A2C59512073 A2/F2 Z4 (E85) 03 - Digital...
  • Page 32 FASTCHECK SERVICE ContiSys OBD Make Model From/To System Harness Required Mercedes S Class (W220) 99 - 05 A2C59512073 B2/C2 Mercedes S Class (W221) 05 - Assyst Plus A2C59512072 Mercedes SL (R129) 95 - 02 A2C59512073 C2/J2 and A2C59512066 Mercedes SL (R230) 01 - 03 A2C59512073 Mercedes...
  • Page 33 FASTCHECK SERVICE ContiSys OBD Make Model From/To System Harness Required Passat 05 - A2C59512072 Phaeton 03 - KWP1281 / KW2000 A2C59512073 A1 Polo 98 - KWP1281 / KW2000 A2C59512060 or A2C59512073 A1 Touareg 03 - 06 KWP1281 / KW2000 A2C59512073 A1 Touareg 07 - A2C59512072...
