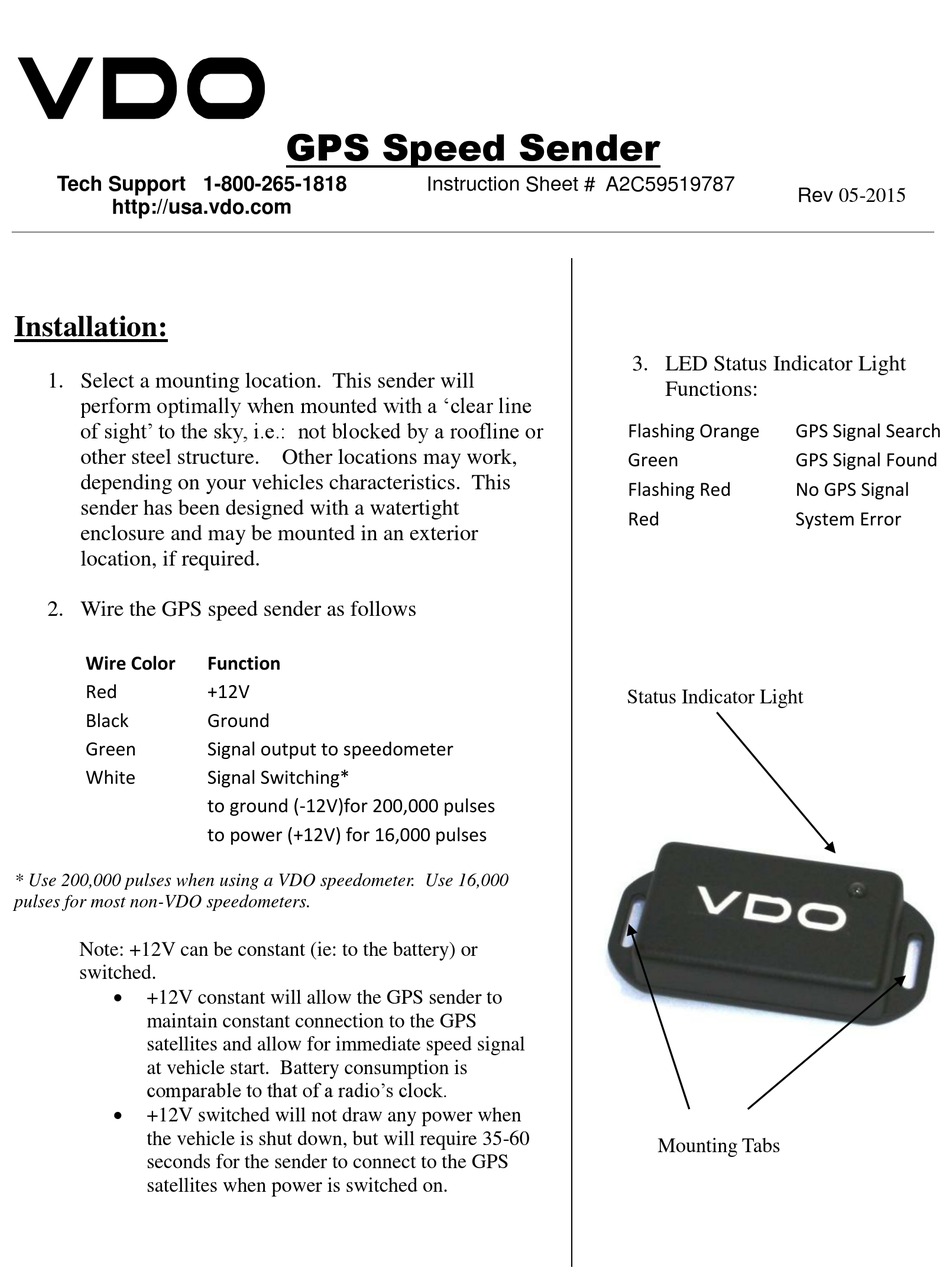

VDO GPS Speed Sender Instruction Sheet

Tech Support 1-800-265-1818
http://usa.vdo.com
Installation:
1. Select a mounting location. This sender will
perform optimally when mounted with a 'clear line
of sight' to the sky, i.e.: not blocked by a roofline or
other steel structure. Other locations may work,
depending on your vehicles characteristics. This
sender has been designed with a watertight
enclosure and may be mounted in an exterior
location, if required.
2. Wire the GPS speed sender as follows
Wire Color
Red
Black
Green
White
* Use 200,000 pulses when using a VDO speedometer. Use 16,000
pulses for most non-VDO speedometers.
Note: +12V can be constant (ie: to the battery) or
switched.

+12V constant will allow the GPS sender to
maintain constant connection to the GPS
satellites and allow for immediate speed signal
at vehicle start. Battery consumption is
comparable to that of a radio's clock.

+12V switched will not draw any power when
the vehicle is shut down, but will require 35-60
seconds for the sender to connect to the GPS
satellites when power is switched on.

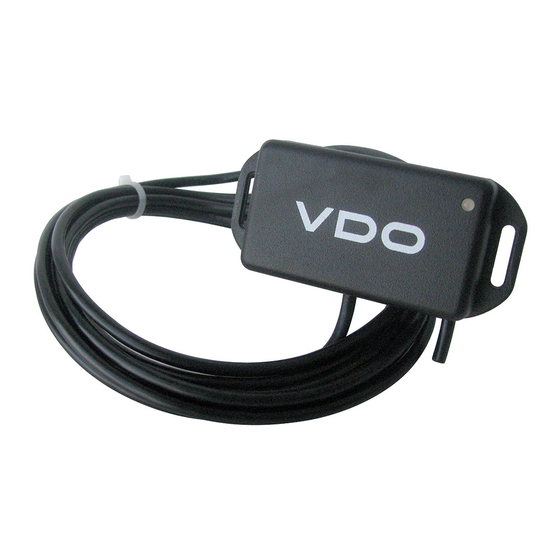

GPS Speed Sender
Function
+12V
Ground
Signal output to speedometer
Signal Switching*
to ground (-12V)for 200,000 pulses
to power (+12V) for 16,000 pulses
Instruction Sheet # A2C59519787
Rev 05-2015
3. LED Status Indicator Light
Functions:
Flashing Orange GPS Signal Search
Green GPS Signal Found
Flashing Red No GPS Signal
Red System Error
Status Indicator Light
Mounting Tabs
