EOBD Application

Using EOBD application

Connection and basic operation
1. Connect the EOBD (J1962) cable (A2C59512072) to the service tool and secure
the fixing screws.
2. Ensure the vehicle's ignition switch is in the '0' position.
3. Connect the service tool to the vehicle via the J1962 diagnostic socket. This
socket is usually located inside the passenger compartment in the vicinity of the
driver's footwell. Refer to vehicle manufacturer's information for the exact
location.
Power for the service tool is provided by the diagnostic socket. When connected
to the diagnostic socket, the service tool will perform an internal self test and then
the screen will display the date of the current software version before displaying
the main menu.
4. Use the
Press
5. Turn the ignition on when prompted, then press the
service tool will then attempt to establish communication with the vehicle's On-
Board Diagnostics.
6. If the vehicle system is not EOBD compliant or there is a connection problem, the
"Please Wait" screen will be replaced with help screens.
12
8
CON0019

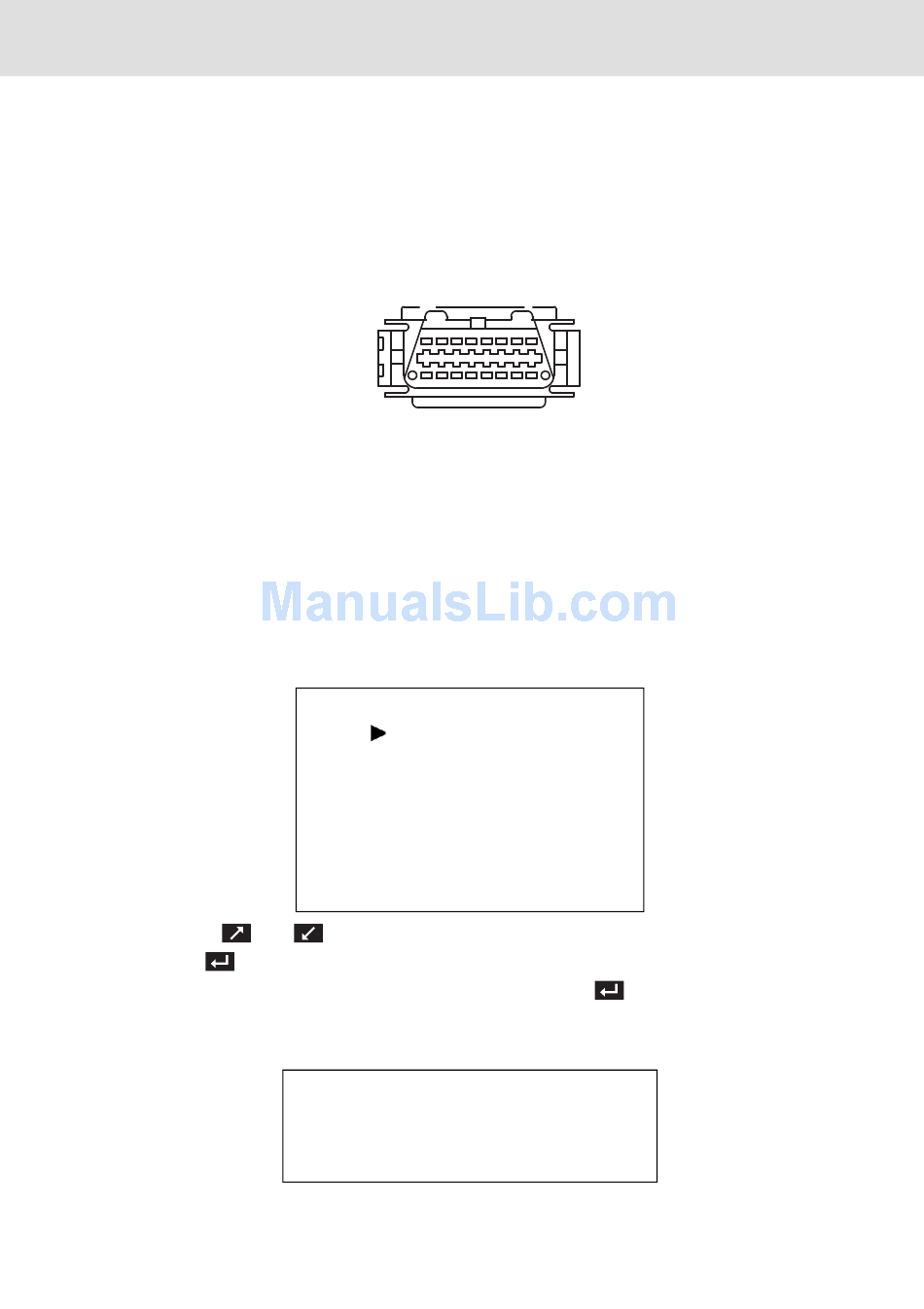

J1962 Diagnostic socket
1. EOBD
2. FastCheck ABS
3. FastCheck Airbag
4. FastCheck Climate
5. FastCheck EPB
6. FastCheck SAS
7. FastCheck Service
8. User Menu
and keys to select the EOBD menu function.
to confirm the selection.
Establishing Data
Link with Vehicle CMs -
Please Wait......
16 9
1
MAIN MENU
key to confirm. The
