Installing a drive

Depending on the server model, a DVD-ROM or multiburner drive might be installed
in the server. The server supports 2.5-inch or 3.5-inch hot-swap SAS, 3.5-inch
hot-swap SATA, or 3.5-inch simple-swap SATA hard disk drives (depending on the
model).

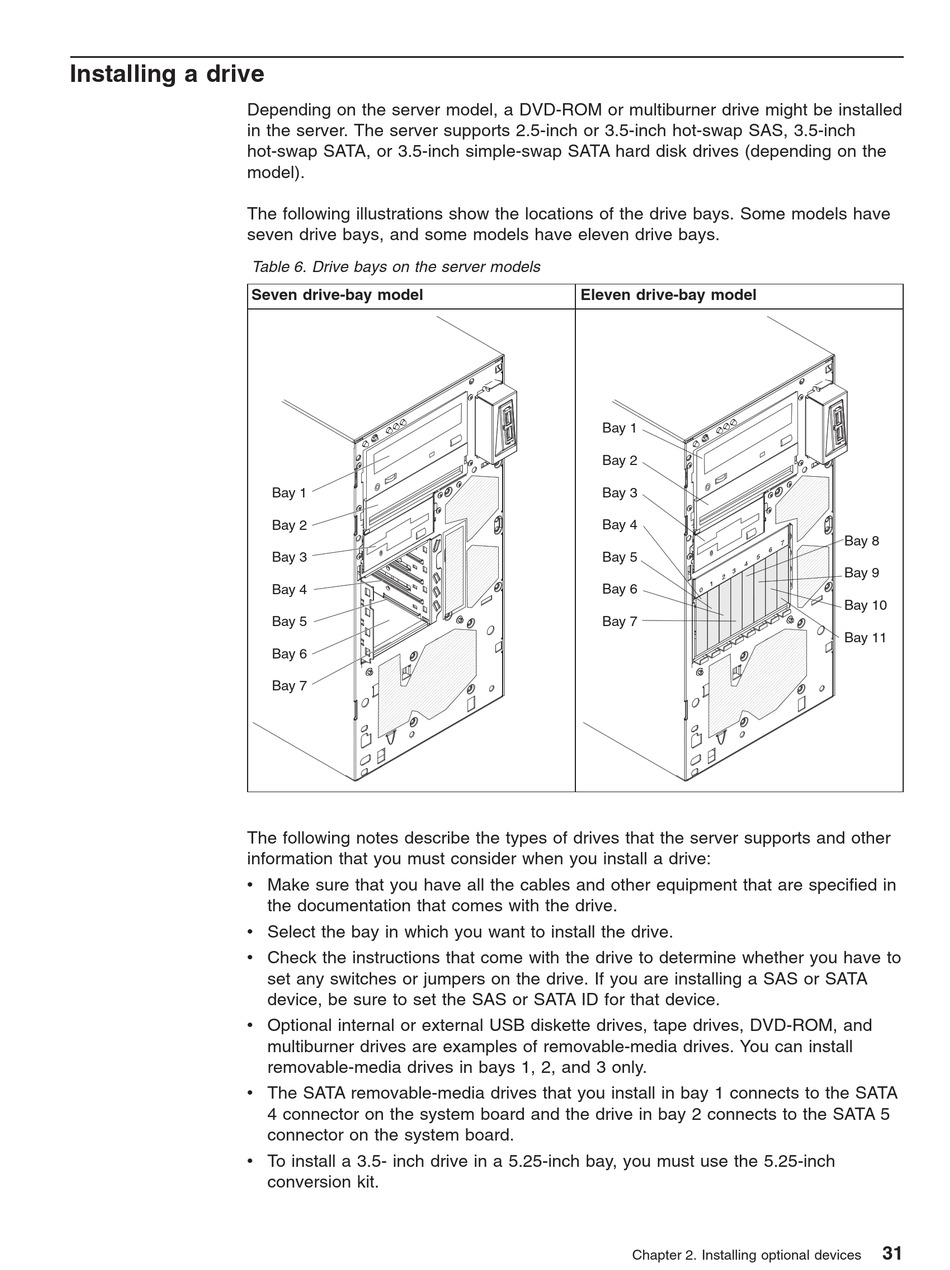

The following illustrations show the locations of the drive bays. Some models have
seven drive bays, and some models have eleven drive bays.
The following notes describe the types of drives that the server supports and other
information that you must consider when you install a drive:
v Make sure that you have all the cables and other equipment that are specified in
v Select the bay in which you want to install the drive.
v Check the instructions that come with the drive to determine whether you have to
v Optional internal or external USB diskette drives, tape drives, DVD-ROM, and
v The SATA removable-media drives that you install in bay 1 connects to the SATA
v To install a 3.5- inch drive in a 5.25-inch bay, you must use the 5.25-inch
Table 6. Drive bays on the server models
Seven drive-bay model
Bay 1
Bay 2
Bay 3
Bay 4
Bay 5
Bay 6
Bay 7
the documentation that comes with the drive.
set any switches or jumpers on the drive. If you are installing a SAS or SATA
device, be sure to set the SAS or SATA ID for that device.
multiburner drives are examples of removable-media drives. You can install
removable-media drives in bays 1, 2, and 3 only.
4 connector on the system board and the drive in bay 2 connects to the SATA 5
connector on the system board.
conversion kit.
Eleven drive-bay model
Bay 1
Bay 2
Bay 3
Bay 4
Bay 5
Bay 6
Bay 7
Chapter 2. Installing optional devices
Bay 8
Bay 9
Bay 10
Bay 11
31
