System-board LEDs

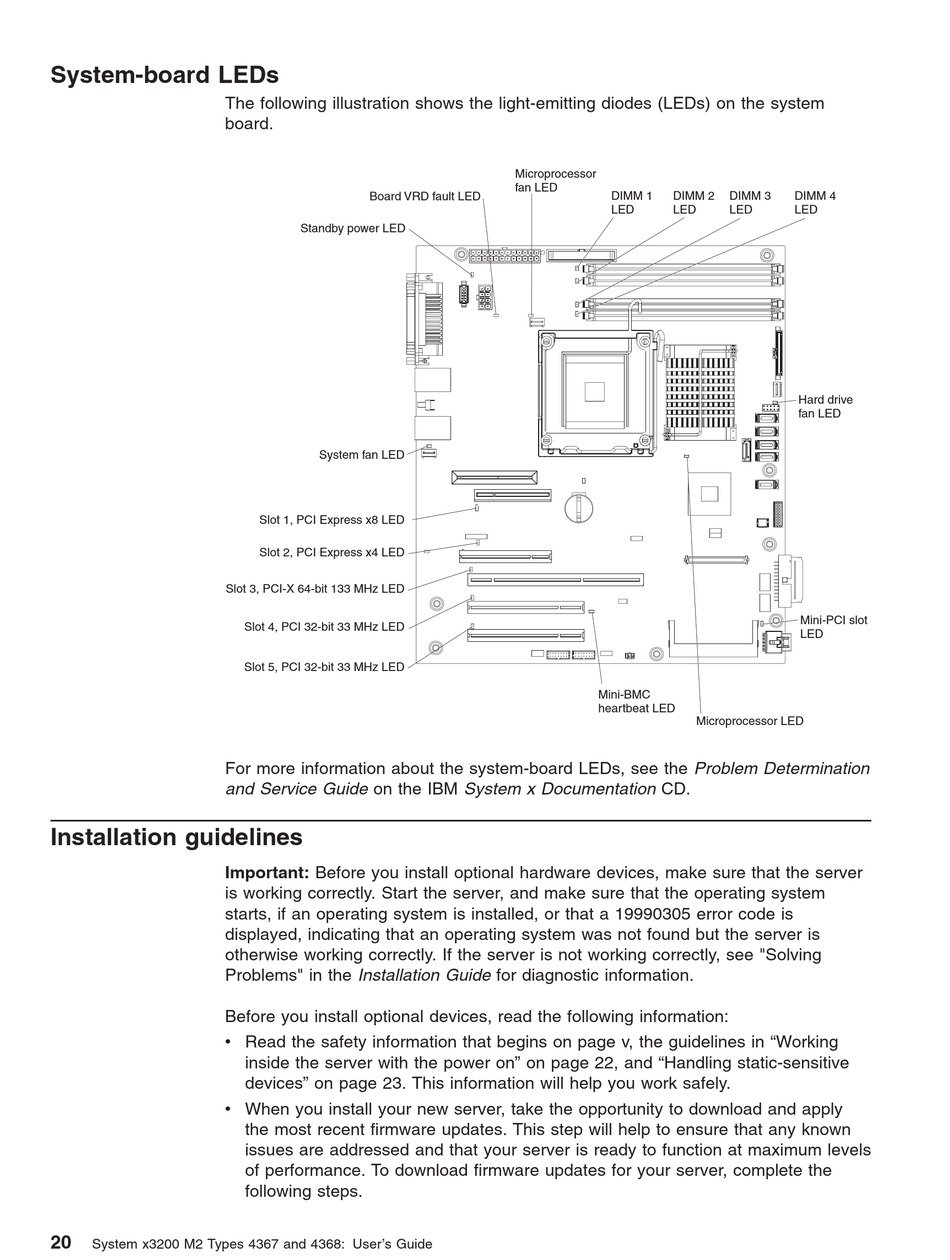

The following illustration shows the light-emitting diodes (LEDs) on the system
board.
Slot 3, PCI-X 64-bit 133 MHz LED
For more information about the system-board LEDs, see the Problem Determination
and Service Guide on the IBM System x Documentation CD.

Installation guidelines

Important: Before you install optional hardware devices, make sure that the server
is working correctly. Start the server, and make sure that the operating system
starts, if an operating system is installed, or that a 19990305 error code is
displayed, indicating that an operating system was not found but the server is
otherwise working correctly. If the server is not working correctly, see "Solving
Problems" in the Installation Guide for diagnostic information.
Before you install optional devices, read the following information:
v Read the safety information that begins on page v, the guidelines in "Working
v When you install your new server, take the opportunity to download and apply
20
System x3200 M2 Types 4367 and 4368: User's Guide
Board VRD fault LED
Standby power LED
System fan LED
Slot 1, PCI Express x8 LED
Slot 2, PCI Express x4 LED
Slot 4, PCI 32-bit 33 MHz LED
Slot 5, PCI 32-bit 33 MHz LED
inside the server with the power on" on page 22, and "Handling static-sensitive
devices" on page 23. This information will help you work safely.
the most recent firmware updates. This step will help to ensure that any known
issues are addressed and that your server is ready to function at maximum levels
of performance. To download firmware updates for your server, complete the
following steps.
Microprocessor
fan LED
DIMM 1 DIMM 2
LED LED
Mini-BMC
heartbeat LED
DIMM 3 DIMM 4
LED LED
Hard drive
fan LED
Mini-PCI slot
LED
Microprocessor LED
