DocuMate 520 Scanner User's Guide

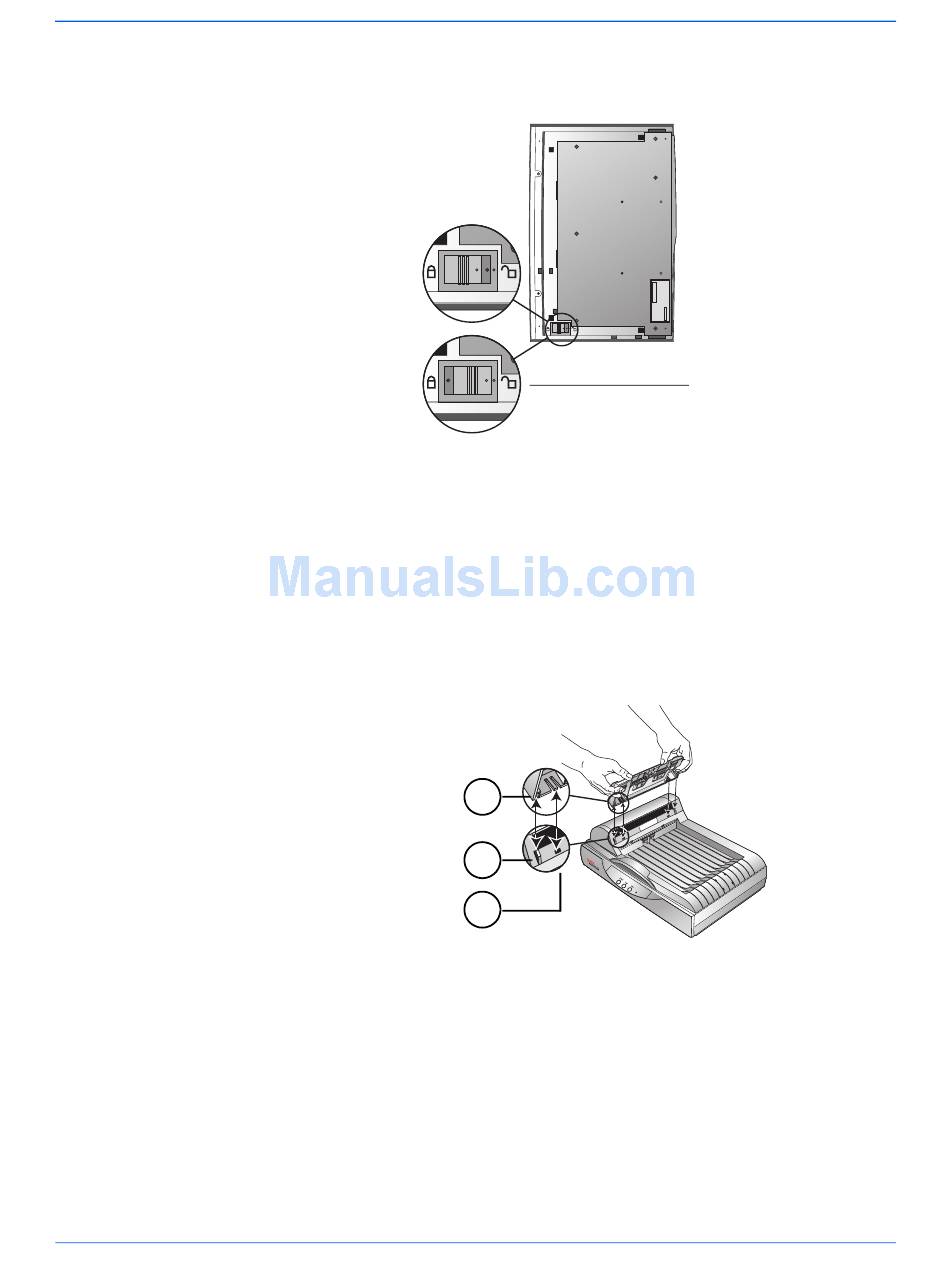

3. Slide the locking tab on the bottom of the scanner to its
unlocked position.
NOTE: The locking tab protects the scanner's scan head by
holding it securely in position. Lock the scanner when transporting
it from one location to another, but always remember to unlock it
before scanning. The scanner will not scan when locked.
4. Insert the slots (A) on the Paper Guide onto their tabs (B) on
the scanner and slide the Guide down into place. The catch
tabs (C) snap into place. Refer to the picture on page 2 to see
the location of the assembled parts.
A
B
C
Installation
Unlocked position
7
