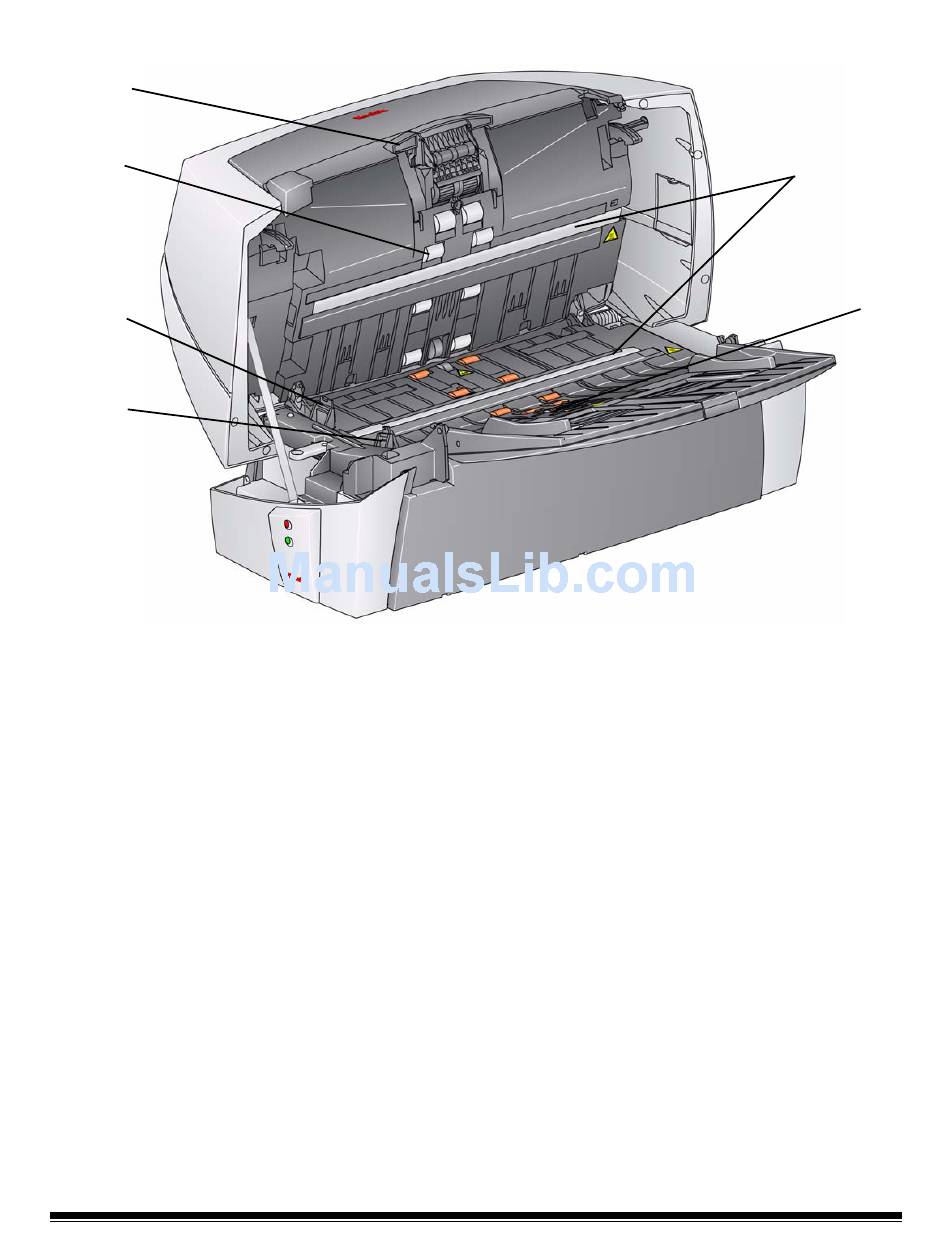

Inside view

1
2
3
4
1-4
1 Separator module — provides smooth document feeding and
separation of various sizes, thicknesses and textures of
documents.
2 Rollers — provides smooth transport of documents through the
scanner.
3 Rear roller cover — provides access to the rear rollers for
cleaning.
4 Front roller cover — provides access to the feed module. This
cover needs to be removed when cleaning or replacing the feed
module or feed module tires.
5 Feed module — provides smooth document feeding and
separation of various sizes, thicknesses and textures of
documents.
6 Imaging guides — keep imaging guides clean to obtain optimum
image quality.
6
5
A-61550 February 2010
