Inside view

6

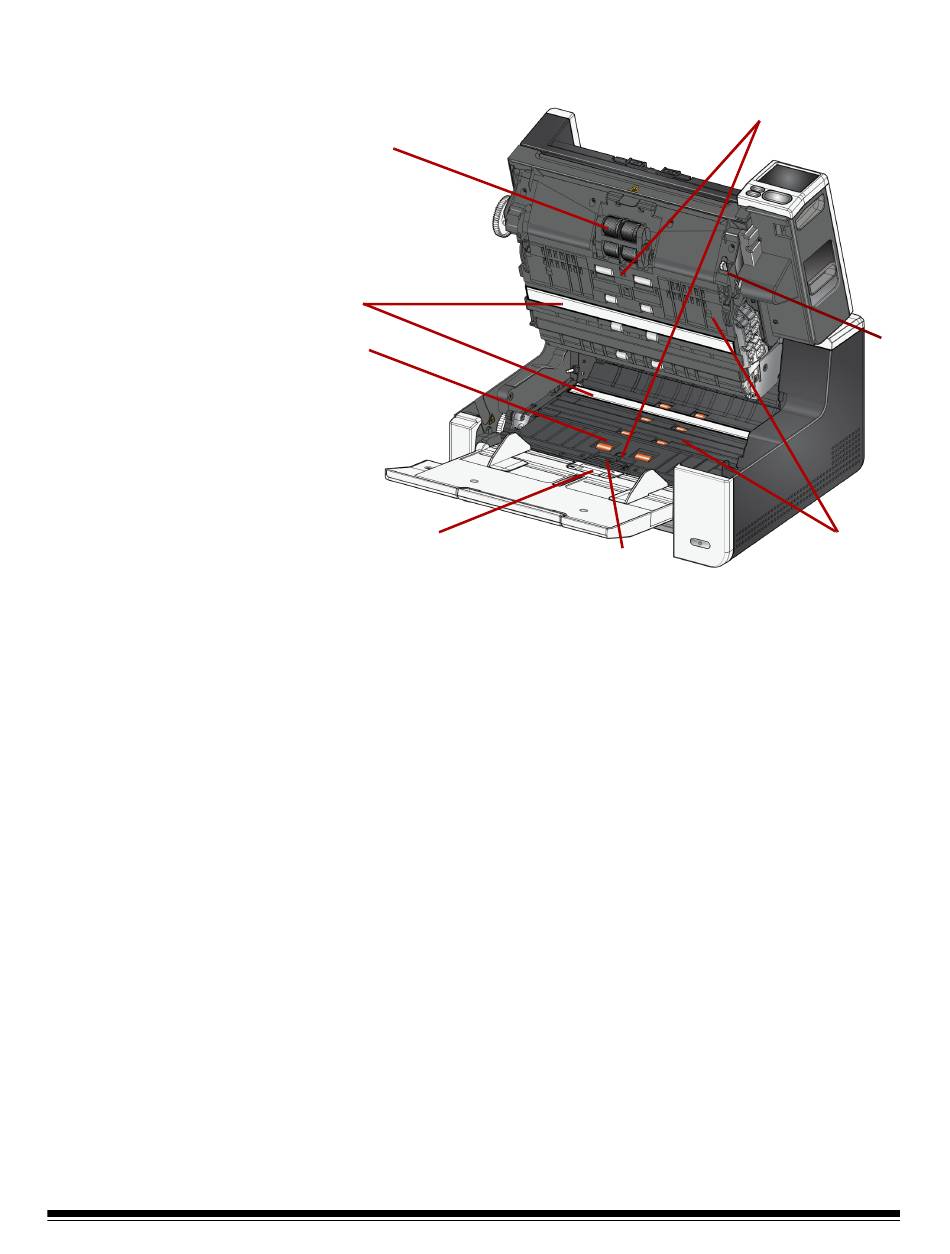

When you pull the scanner cover release latch forward, the following internal
components are visible.
2
3
4
5
1 Ultrasonic Sensors — used to detect multifeeds and document damage.
The Kodak Alaris Intelligent Document Protection feature helps protect
your documents from being damaged. Refer to the Scanning Setup
Guides for more information about this feature.
2 Feed module — provides smooth document feeding and separation of
various sizes, thicknesses and textures of documents.
3 CIS Imager (2) — keep the imagers clean to obtain optimum image
quality.
4 Front Transport Roller / Rollers — provides smooth transport of
documents through the scanner.
5 Paper Present sensor — detects the presence of documents in the input
tray.
6 Separation module and pre-separation pad — provides smooth
document feeding and separation of various sizes, thicknesses and
textures of documents.
7 Transport - path where documents are transported through the CIS
Imagers to the output tray.
8 Feed module release lever — push this lever to release the feed module
from its position when replacing the feed module or feed module tires.
