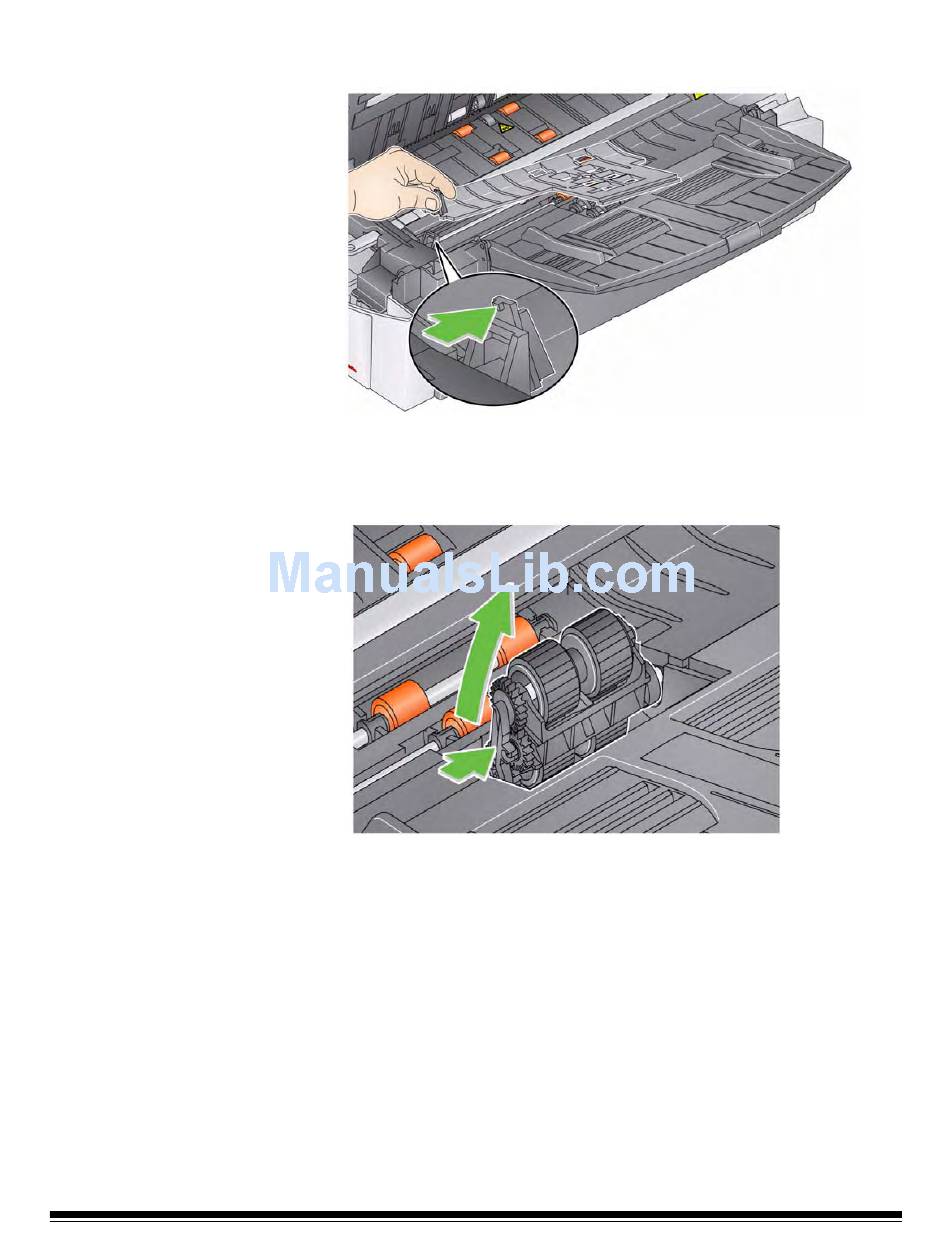

Cleaning the feed module
A-61550 February 2010
1. Push against the raised edge on the left side of the front drive roller
cover and pull the cover up and out to remove it.
NOTE: You may need to lift the input tray slightly to remove the
front roller cover.
2. Remove the feed module by pushing it to the right and lifting it out.
5-5
