Enhanced Printer - Kodak I1420 - Document Scanner User Manual

Enhanced printer

4-4
5. If you are installing the ink cartridge for the first time, push the
connector on the printer cable firmly into the printer carrier.
NOTE: If you are replacing an ink cartridge, the printer cable will
already be installed and you just need to remove the printer
carrier from it's position and remove the empty ink
cartridge.

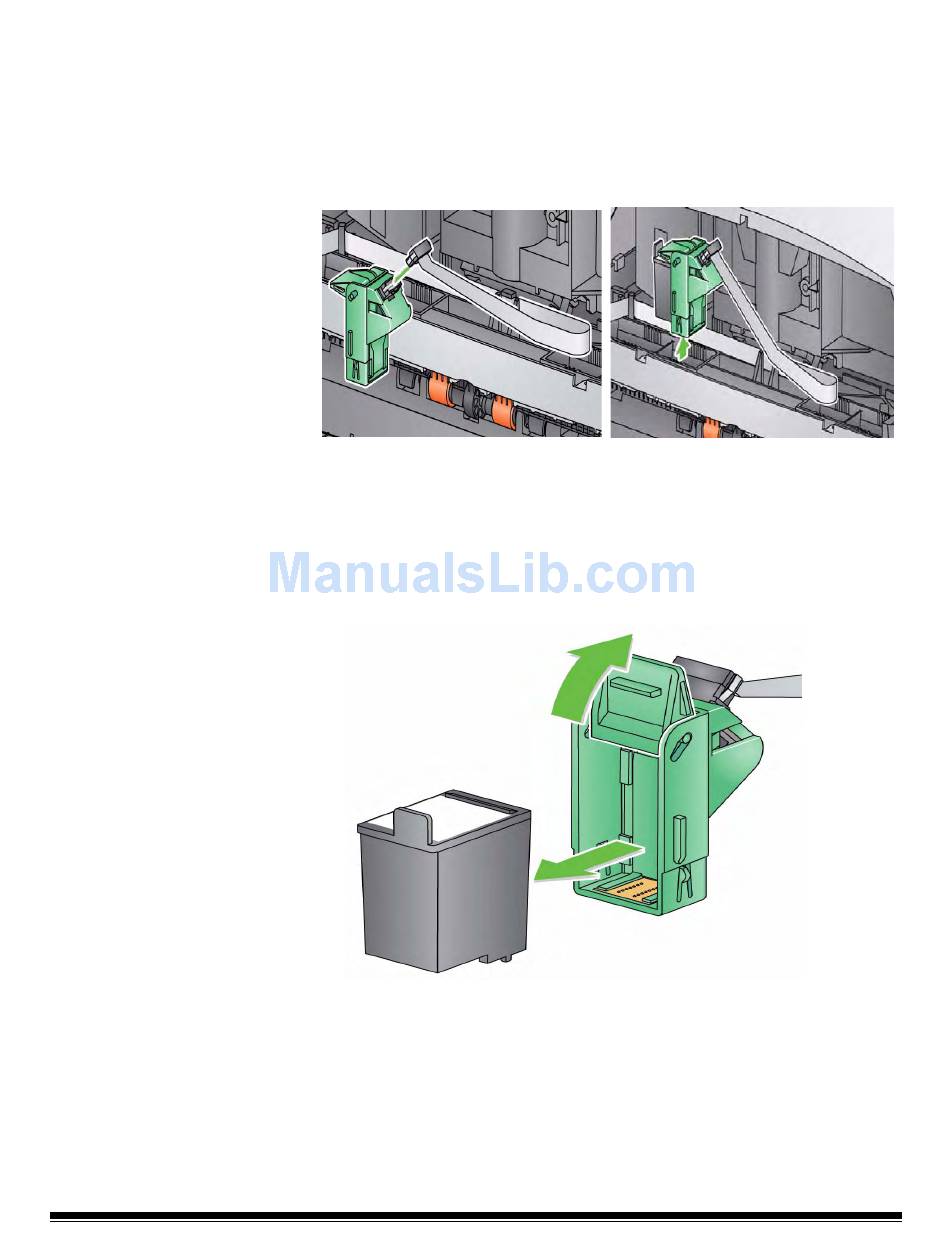

Push the connector on the printer
cable firmly into the printer carrier.
6. Open the ink cartridge and remove the tab from the new ink
cartridge.
7. Lift the green tab on the printer carrier and slide the new ink
cartridge in the printer carrier and close the tab.
NOTE: If the ribbon cable should become disconnected, snap it
back into position.
Remove the printer carrier from it's
position.
A-61550 February 2010
